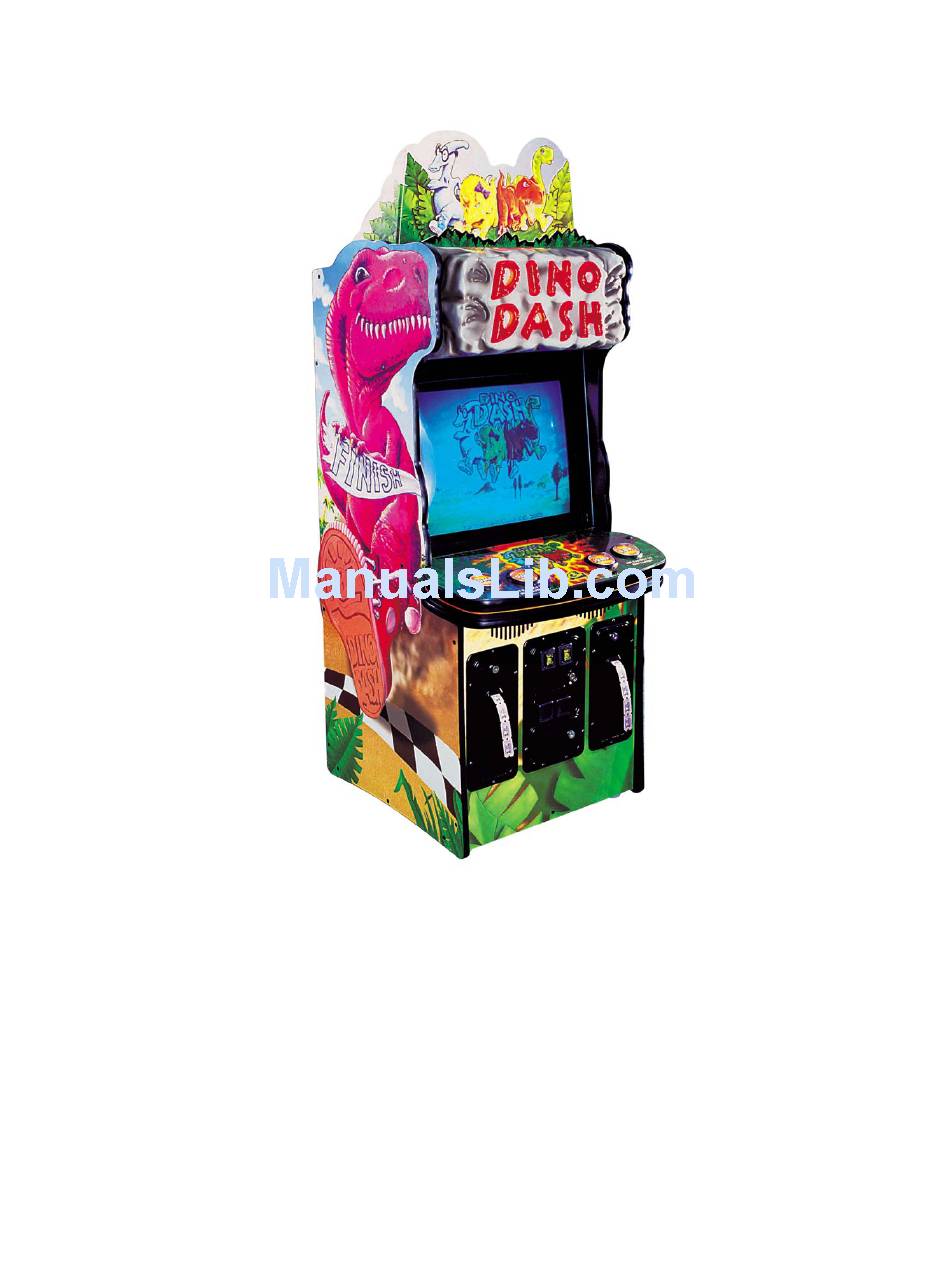

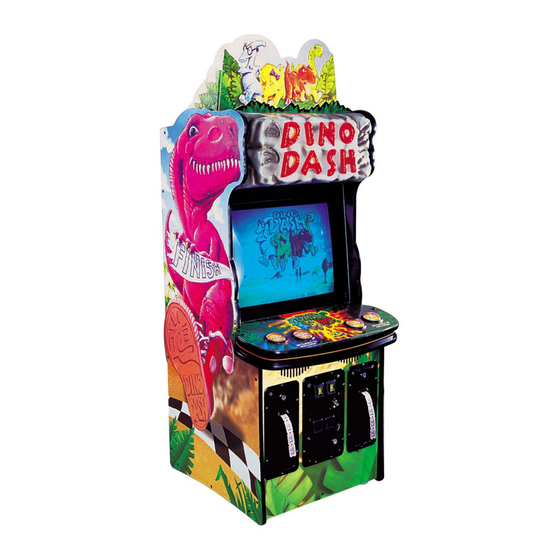

- Page 1 DINO DASH Owners And Service Manual Innovative Concepts In Entertainment Inc. PHONE: (716)759-0370 Service Phone: (716) 759-0360...
- Page 2 DINO DASH Service Fax: (716) 759-0884...
-
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION: Game Features Game Play ASSEMBLY: Set-up Testing Volume Control PROGRAMMING YOUR GAME: Programming mode MAINTENANCE: Cleaning PARTS LISTING Mechanical parts Electrical Parts Decals/Graphics SCHEMATICS WARRANTY INFORMATION... -
Page 4: Introduction
INTRODUCTION Description / Game play: Players are allowed to choose any of four loveable characters to race. After being given the ready-set-go, players can run either by holding the Run button, or tapping it repeatedly, which makes faster speeds possible. During the race, four obstacles will be presented. -
Page 5: Assembly
ASSEMBLY SET UP: To avoid unnecessary movement of the game, setup the game in its permanent location. The footprint is approximately 33” x 35”. After completely removing all the packaging from the unit, remove the tape over the coin return. These keys are for the cash box door. The rest of the keys and power cord will be in the cash box. - Page 6 Diagnostics adjustments. BEST SCORES - provides viewing and You will find that Dino Dash comes resetting of best scores, either all at with a detailed auditing system that grants a once or by track. tremendous degree of control over your machine.
- Page 7 PROGRAMMING Main->INFO->AUDIO HW INFO Detailed Descriptions Pressing an action button while AUDIO HW INFO is highlighted will switch to the debug log (as above, see DEBUG INFO) displaying the Main->INFO The above notation means 'the INFO capabilities of the audio hardware. item of the main menu' and will be used throughout these descriptions.
- Page 8 PROGRAMMING SETTINGS is set to something other than PRIZES - number of prizes successfully dispensed from either dispenser. manual, many of the payout adjustments will be AVERAGE GAME TIME - average disabled because their values are being number of seconds during each game controlled by the system.
- Page 9 PROGRAMMING PAYOUT SETTINGS (default MEDIUM, range MANUAL, LOW, MEDIUM, HIGH, NEW JERSEY) – In MANUAL, all settings are available for operator control for fine tuning. LOW, MEDIUM, and HIGH allow for easy setting of common payout levels. NEW JERSEY payout enables the IMMEDIATE PRIZES adjustment (which must them be set by the operator) and disables all other payouts.
- Page 10 PROGRAMMING JACKPOT (default 100, range 0(OFF)- Page Three (Payout): 1000 in steps of 10) - This should be IMMEDIATE PRIZES (default 0, highest random payout available. It range 0-100) - Number of prizes that are otherwise functions the same as dispensed as soon as a coin in is RANDOM POINTS x, except that it inserted, to support New Jersey style...
- Page 11 PROGRAMMING 4TH TARGET POINTS to 0(OFF) will Page Four (More Payout) also disable the target feature. JUMP x POINTS (defaults (1, 1, 1, 2), (1, 1, 2, 3), (1, 2, 3, 4), range 0 -100) - Pressing an action button while ADJUSTMENTS is highlighted will descend During the game, the player is presented with up to four obstacles.
- Page 12 PROGRAMMING Pressing an action button while BEST Main->CREDITS SCORES is highlighted will descend into the While CREDITS is highlighted, the BEST SCORES menu. The BEST SCORES descending menu will show the current number of unused credits, as well as the value of the menu has the following options: BACK MAXIUM CREDITS adjustment.
- Page 13 PROGRAMMING Main->TESTS->SOUND TEST->BACK Main->TESTS->BACK Pressing an action button while BACK Pressing an action button while BACK is highlighted will return you to the TESTS is highlighted will return you to the main menu. menu. Main->TESTS->SOUND TEST->PLAY Pressing an action button while PLAY Main->TESTS->VIDEO TESTS While VIDEO TESTS is highlighted, is highlighted will play the current sound effect.
- Page 14 PROGRAMMING Main->TESTS->MECHANICAL TESTS While MECHANICAL TESTS is highlighted, the descending menu will show the current input/output state of all prize dispensers and meters. Each will show a DRIVE signal if it is active, and the prize dispensers will also show a NOTCH signal (though it may be too quick to appear graphically.) In addition, the DISPENSER EMPTY state of the prize...
-
Page 15: Parts Listing
PARTS LISTING MECHANICAL PARTS: DD3006 Marquee housing rock DD3007 Marquee letters DD3027 Cover glass MZ2005 Button 4” round 5001 Coin door over/under 5008 Ticket door ELECTRONIC PARTS: DD8277 Hard drive DD8283 Fluorescent 24” HO bulb DD8284x Ballast MON29v Monitor 29” VGA HD2364 HH5005 Ticket dispenser Entropy... - Page 16 WARRANTY I.C.E warrants all components in the Dino DashÔ game to be free of defects in materials and workmanship for a period of ninety days from the date of purchase. This warranty does not cover items damaged due to normal wear and tear, subjected to abuse, improperly assembled by the end user, modified, repaired, or operated in a fashion other than that described in the service manual.
