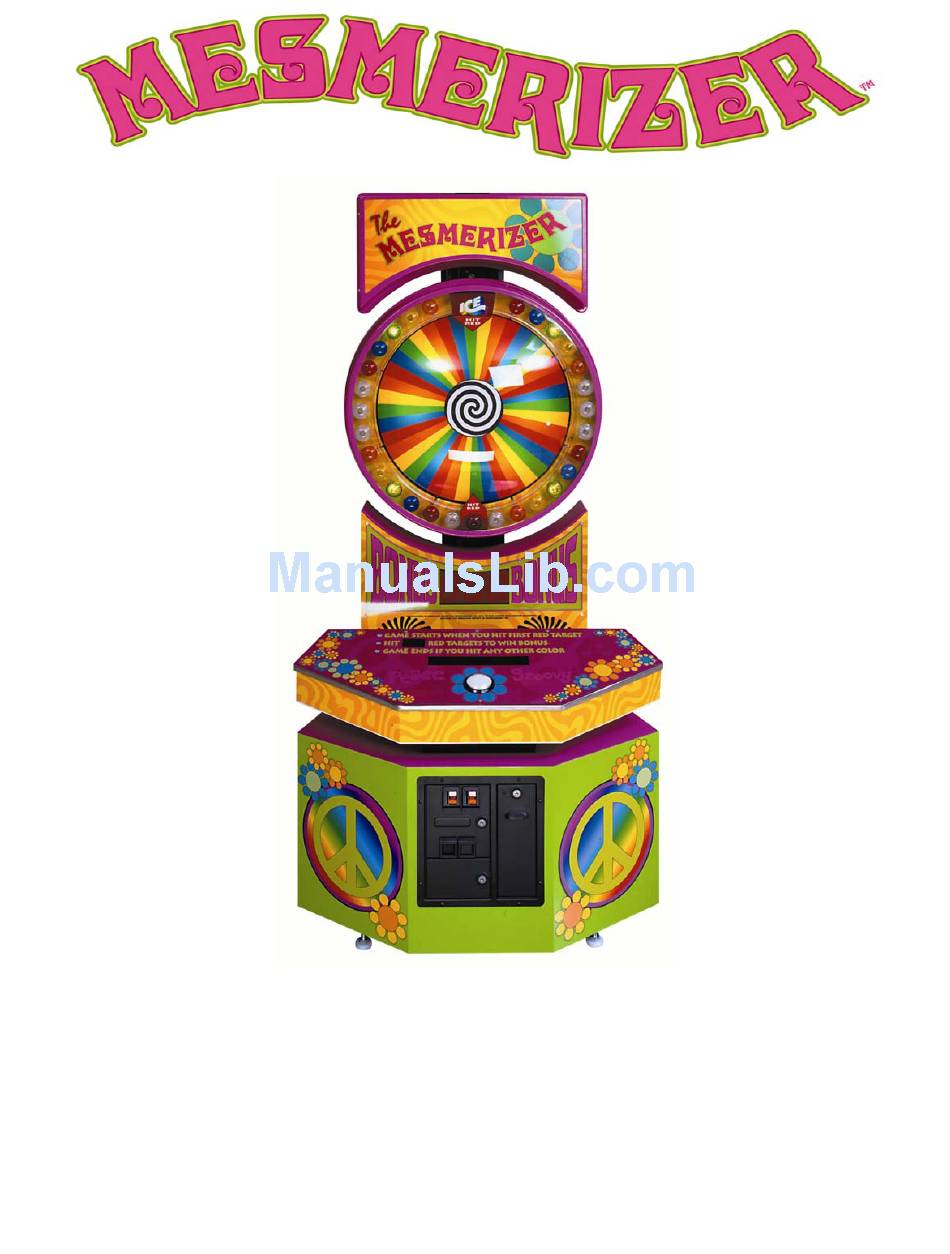

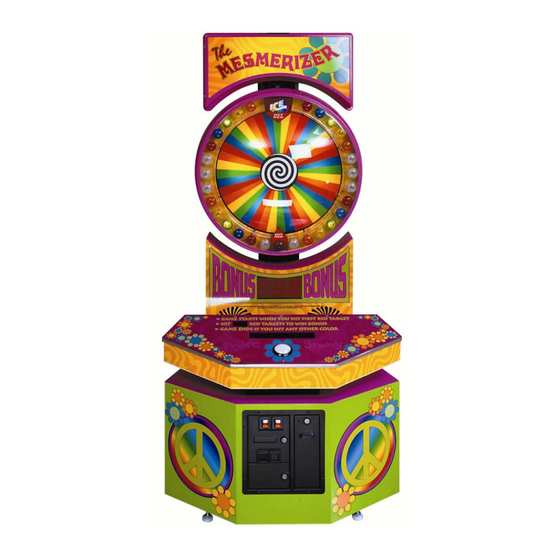

- Page 1 OWNERS AND SERVICE MANUAL ©2001 INNOVATIVE CONCEPTS IN ENTERTAINMENT INC. 10123 MAIN STREET, CLARENCE, NEW YORK 14031 SERVICE 716-759-0360 SALES 716-759-0370 FAX 716-759-0390 E MAIL play@icegame.com...
- Page 2 TABLE OF CONTENTS • INTRODUCTION / INSTALLATION • PROGRAMMING OPTIONS • TROUBLESHOOTING • PARTS LISTINGS • SCHEMATICS • WARRANTY INFORMATION...
- Page 3 INTRODUCTION & SET-UP FEATURES SET-UP The MESMERIZER™ game is almost ready to go Thank you for purchasing the new with just a little bit of set-up. MESMERIZER™ coin operated amusement game from I.C.E. Please read this manual to fully The game comes fully assembled other than the understand the operation and servicing of this top Marquee.
- Page 4 PROGRAMMING OPTIONS USING THE ATTRACT MINUTES PROGRAMMING (OPTION #2) BUTTONS This option determines how many minutes between the attract mode. The range for this option is 0-90 minutes. Setting a “0” turns the attract mode off. The default value for this option is 5 minutes.
- Page 5 PROGRAMMING OPTIONS DIFFICULTY / BONUS NOW NARROWING PCT. (OPTION #10) (OPTION #6) This is an accounting mode that tells you the present value of the bonus payout. This option determines if the game will electronically increase the difficulty of the game by narrowing the “win”...
- Page 6 PROGRAMMING OPTIONS TICKET AMOUNT PER THE FOLLOWING OPTIONS (18-33) TELL YOU HOW MANY 1 HIT, 2 HIT, 3 STEP HIT, ETC. GAMES HAVE BEEN PLAYED. THIS WILL HELP YOU (OPTION #14) GAUGE FURTHER THE PLAYER PROFILE OF YOUR LOCATION. THIS This option determines the amount of tickets that CAN HELP TO SET UP THE GAME will be dispensed each time the next payout step...
- Page 7 PROGRAMMING OPTIONS MOTOR PULSE WIDTH MODULATION TEST (OPTION #36) This is a factory / diagnostics test to see that the motor is capable of delivering at least 16 R.P.M.
- Page 8 TROUBLESHOOTING GAME WILL NOT TAKE OR ADD MONEY CORRECTLY · Micro switch not working or returning properly. Check and repair or replace as necessary. · Bad Harnessing or connector. Check w/ohm meter and repair as necessary. · Game programming set incorrectly. Check programming option and re-program if necessary. ·...
- Page 9 Programming Decal MZ3021 Plastic bolt Cap MZ7027 Marquee Decal MZ3023X Marquee Assembly MZ9010 Service Manual MZ3024 Mesmerizer Dome ELECTRICAL / ELECTRONIC PARTS MZ2001X Neon Transformer MZ2003X Neon Light Ring Assembly MZ2003RX Receiver P.C. Board Assembly MZ2003TX Transmitter P.C. Board Assy.
- Page 10 WARRANTY I.C.E warrants all components in the MESMERIZERÔ game to be free of defects in materials and workmanship for a period of ninety days from the date of purchase. This warranty does not cover items damaged due to normal wear and tear,...
