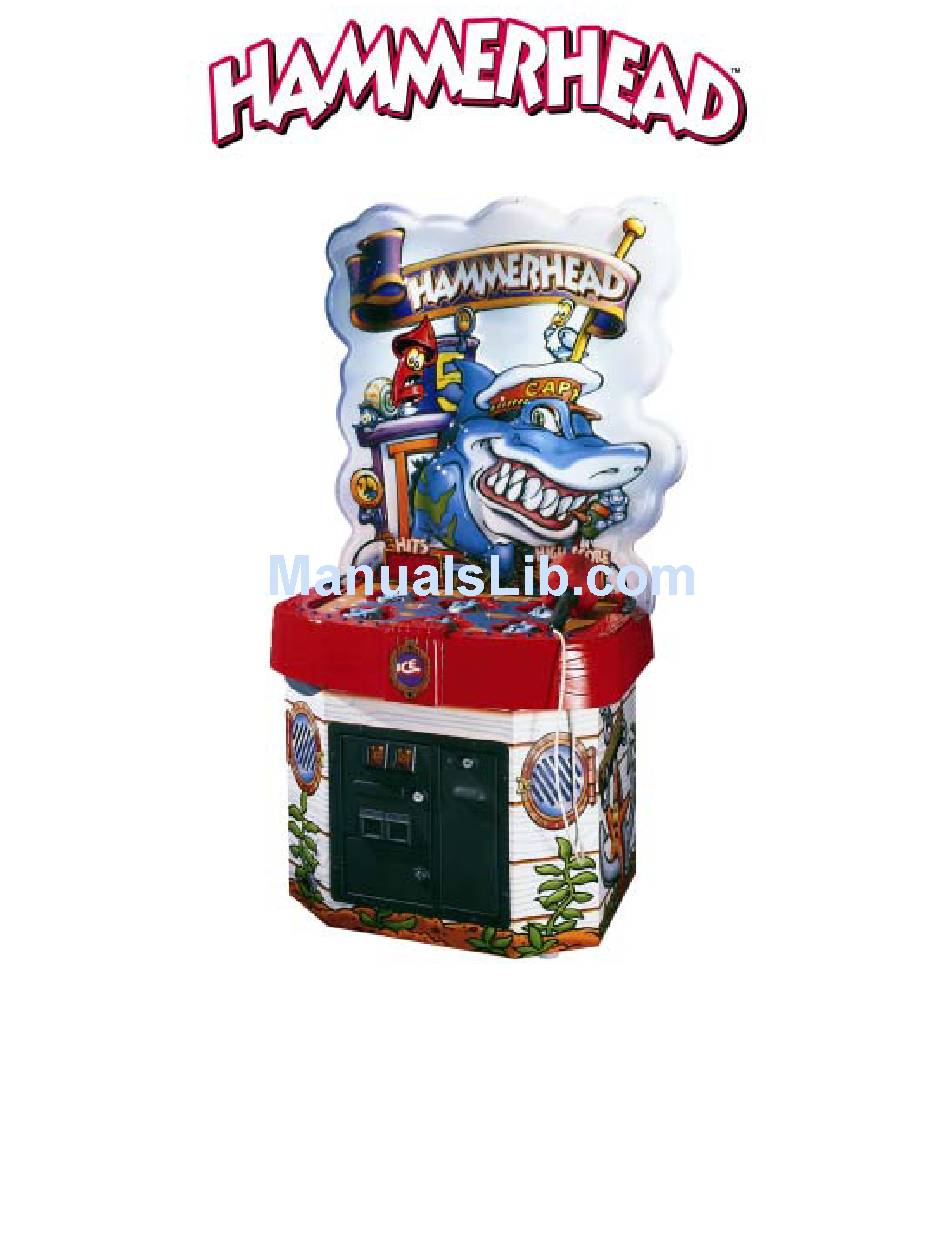

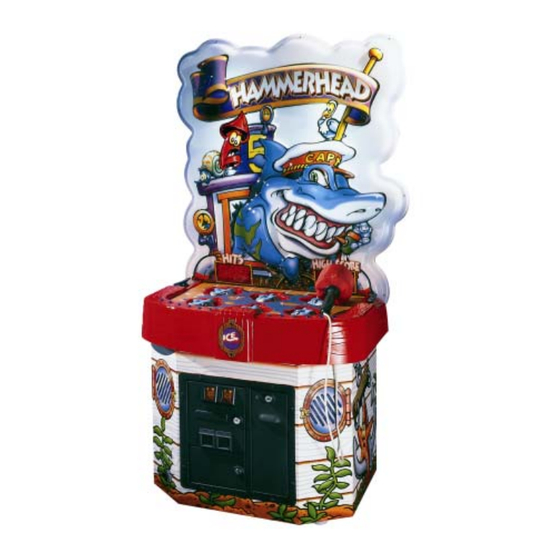

- Page 1 OWNERS AND SERVICE MANUAL INNOVATIVE CONCEPTS IN ENTERTAINMENT INC. 10123 MAIN STREET, CLARENCE, NY 14031 SERVICE: 1–716–759–0360 FAX: 1–716–759–0884 E–MAIL: service@icegame.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ..........PAGE 3 GAME FEATURES GAME PLAY INSTALLATION..........PAGE 4 BEFORE YOU BEGIN INSTALLATION PROGRAMMING OPTIONS ......PAGE 5 & 6 INTRODUCTION USING THE PROGRAMMING OPTIONS MAINTENANCE ..........PAGE 7 QUICK TROUBLESHOOTING ......PAGE 8 GAME REPAIR..........PAGE 9 – 11 OPERATIONAL BACKGROUND TROUBLESHOOTING PHILOSOPHY MECHANICAL REPAIR... -
Page 3: Introduction
GAME FEATURES The object of the game is to hit as many sharks as Thank you for purchasing the new Hammerhead" game possible in the time allowed. (Note: the player must try to from I.C.E. This new “WACKY” game utilizes all the hit the sharks that are in the up position to score points) proven technology of it’s predecessor Smack–n–Alien. -
Page 4: Installation
INSTALLATION CAUTION: CHECK THAT THE A.C. VOLTAGE RATING ON BEFORE YOU BEGIN THE BACK OF THE GAME MATCHES THE A.C. VOLTAGE OF YOUR LOCATION. WARNING: WHEN INSTALLING THIS GAME, A GROUNDED A.C. RECEPTACLE MUST BE USED. THE POWER SUPPLY IS NOT VOLTAGE ADJUSTABLE. FAILURE TO DO SO COULD RESULT IN INJURY TO YOURSELF OR OTHERS. -
Page 5: Programming Options
PROGRAMMING INTRODUCTION The Hammerhead" game is extremely flexible from a programming standpoint. This allows the customer to “fine tune” the game to his or her exact needs. This section will describe in detail each of the programming options and how they work. - Page 6 PROGRAMMING OPTION DEFAULT MIN / DEFINITION 00 10 Volume adjustment 01 09 coins per credit switch 1 00 09 # of coin 1’s per credit switch 2 10 99 number of seconds per game 00 06 difficulty (lower = easier) 00 09 tickets just for playing 01 10...
-
Page 7: Maintenance
MAINTENANCE GENERAL MAINTENANCE TICKET DISPENSERS The biggest problem ticket dispensers have is ticket dust This game has been designed to be as trouble and blocking the optical detectors. It is a good idea to maintenance free as possible. occasionally use compressed air to remove the dust from the dispensers. -
Page 8: Quick Troubleshooting
QUICK TROUBLESHOOTING GAME WILL NOT TAKE OR ADD MONEY CORRECTLY • Micro switch not working or returning properly. Check and repair or replace as necessary. • Bad Harnessing or connector. Check w/ohm meter and repair as necessary. • Game programming set incorrectly. Check programming option and re–program if necessary. Bad Main P.C. -
Page 9: Game Repair
BACKGROUND When trying to find out if specific components are bad The HAMMERHEAD" game has been manufactured or not. This will help you to know if you have a with modular design in mind. Almost everything in the problem with a specific component, or maybe a game can be EASILY removed for servicing. - Page 10 GAME REPAIR REPLACEMENT & REPAIR COIL BED PARTS REPLACEMENT Service the coil bed as follows: COIL BED SERVICING Remove all the shark heads from the coil bed. To remove sharks, turn the coil bed over so that the To remove the coil bed: coil bed is resting on the shark heads.
- Page 11 GAME REPAIR MARQUEE BULB / DISPLAY Using a Phillips screwdriver, remove the four screws BOARD SERVICE that hold the board in place. To replace a light bulb: Remove the square drive screws on the rear of the marquee, that attach the lamp mounting panels. Start with the side that looks like the light is out.
-
Page 12: Parts Listings
PARTS LISTING Parts denoted with * indicate available as part of ELECTRONIC / ELECTRICAL a specially discounted spares kit. WS2034X Main PCB WS2032X Display Boards MECHANICAL PARTS 2295 Fuse, MDQ6 (6 Amp Slo Blo) 2315 Fuse, MDQ3 (3 Amp Slo Blo) Low Ticket Micro Switch BW250X PLL Bulb Socket Assembly... -
Page 13: Schematics
10 PIN AMP HOUSING #2291 10 PIN AMP HOUSING #2291 CONTACT PIN #2201 CONTACT PIN #2201 PINS 1, 7, AND 10: KEY PLUG #2239 PINS 1, 7, AND 10: KEY PLUG #2239 HAMMERHEAD TITLE FILENAME WS.VSD #WS2051AX - DISPLAY DESCRIPTION... - Page 14 12 VDC 8 PIN AMP HOUSING #2405 CONTACT PIN #2201 10 PIN AMP HOUSING #2291 PIN 3: KEY PLUG #2239 CONTACT PIN #2201 PINS 1, 7, AND 10: KEY PLUG #2239 HAMMERHEAD TITLE WS.VSD FILENAME #WS2051X - DISPLAY HARNESS DESCRIPTION MMARTIN...
- Page 15 .110 violet/orange violet/orange Select " violet/yellow violet/yellow Advance black black #650 Ground .110 #2714 5 PIN IDC #650 .110 HAMMERHEAD TITLE WS.VSD FILENAME # WS2052X - PROGRAMMING DESCRIPTION HARNESS MMARTIN DRAWN BY 7/9/01 8/15/01 3 OF 10 DATE REVISED PAGE...
-
Page 16: Wiring Diagrams
Jewel 1 white/red Jewel 2 white/orange Jewel 3 white/yellow Jewel 4 white/green Jewel 5 white/blue Jewel 6 HAMMERHEAD TITLE orange 12 VDC FILENAME WS.VSD orange 12 VDC DESCRIPTION #WS2053X - JEWEL LIGHT HARNESS MMARTIN DRAWN BY 9 PIN PLUG #2292... - Page 17 Left Speaker - red/gray Left Speaker + 5 PIN AMP HOUSING #2419 CONTACT PIN #2201 To Left Speaker brown/gray #653T .250 red/gray #653T .250 HAMMERHEAD TITLE WS.VSD FILENAME #WS2054X - SPEAKER HARNESS DESCRIPTION MMARTIN DRAWN BY DATE 7/9/01 REVISED 8/15/01...
- Page 18 EARTH GND EARTH GND WHITE WHITE AC N AC N 3 PIN CAP #2288 FEMALE #2102 3 PIN PLUG #2206 SOLID PIN #2100S HAMMERHEAD TITLE WS.VSD FILENAME #WS2056X - MARQUEE HARNESS DESCRIPTION MMARTIN DRAWN BY 7/9/01 8/15/01 6 OF 10...
- Page 19 #653T .250 To Coin Switch 1 black #653T .250 gray/red #653T .250 To Coin Switch 2 black #653T .250 HAMMERHEAD TITLE WS.VSD FILENAME #WS2057X - COIN DOOR HARNESS DESCRIPTION MMARTIN DRAWN BY 7/9/01 8/15/01 7 OF 10 DATE REVISED PAGE...
- Page 20 WITH LED HOLDER #1017 2 PIN MOLEX HOUSING #2089 MINI KK PIN #2074 violet/green #651 .187 To Low Ticket Switch black #649 .187 HAMMERHEAD TITLE WS.VSD FILENAME #WS2058X - TICKET DOOR HARNESS DESCRIPTION MMARTIN DRAWN BY 7/9/01 8/15/01 8 OF 10...
- Page 21 Jewel 6 orange 12 VDC orange 12 VDC orange 12VDC 12 PIN AMP HOUSING #8428 CONTACT PIN #2201 TITLE HAMMERHEAD 63 PIN CIRCULAR PLUG #8111 WS.VSD FILENAME FEMALE PIN #8112 #WS2059X - MAIN TO COIL BED DESCRIPTION CLAMP #8110 HARNESS MMARTIN...
- Page 22 12 VDC 9 PIN CAP #2551 FEMALE PIN #2102 #651 .187 WHITE/BLACK 63 PIN CIR.RECEP.PNL. MT. #8113 MALE PIN #8114 blue HAMMERHEAD TITLE WS.VSD FILENAME #2364- #WS2060X - COIL BED HARNESS DESCRIPTION 12 VOLT DC FAN MMARTIN DRAWN BY...
- Page 23 Warranty I.C.E warrants all components in the HAMMERHEAD" game to be free of defects in materials and workmanship for a period of 90 days from the date of purchase. Furthermore, all MAIN P.C. BOARDS are warranted for 180 days. This warranty does not cover items damaged due to normal wear and tear, subjected to abuse, improperly assembled by the end user, modified, repaired, or operated in a fashion other than that described in the service manual.
