Two Game Install With MEGA MARQUEE!

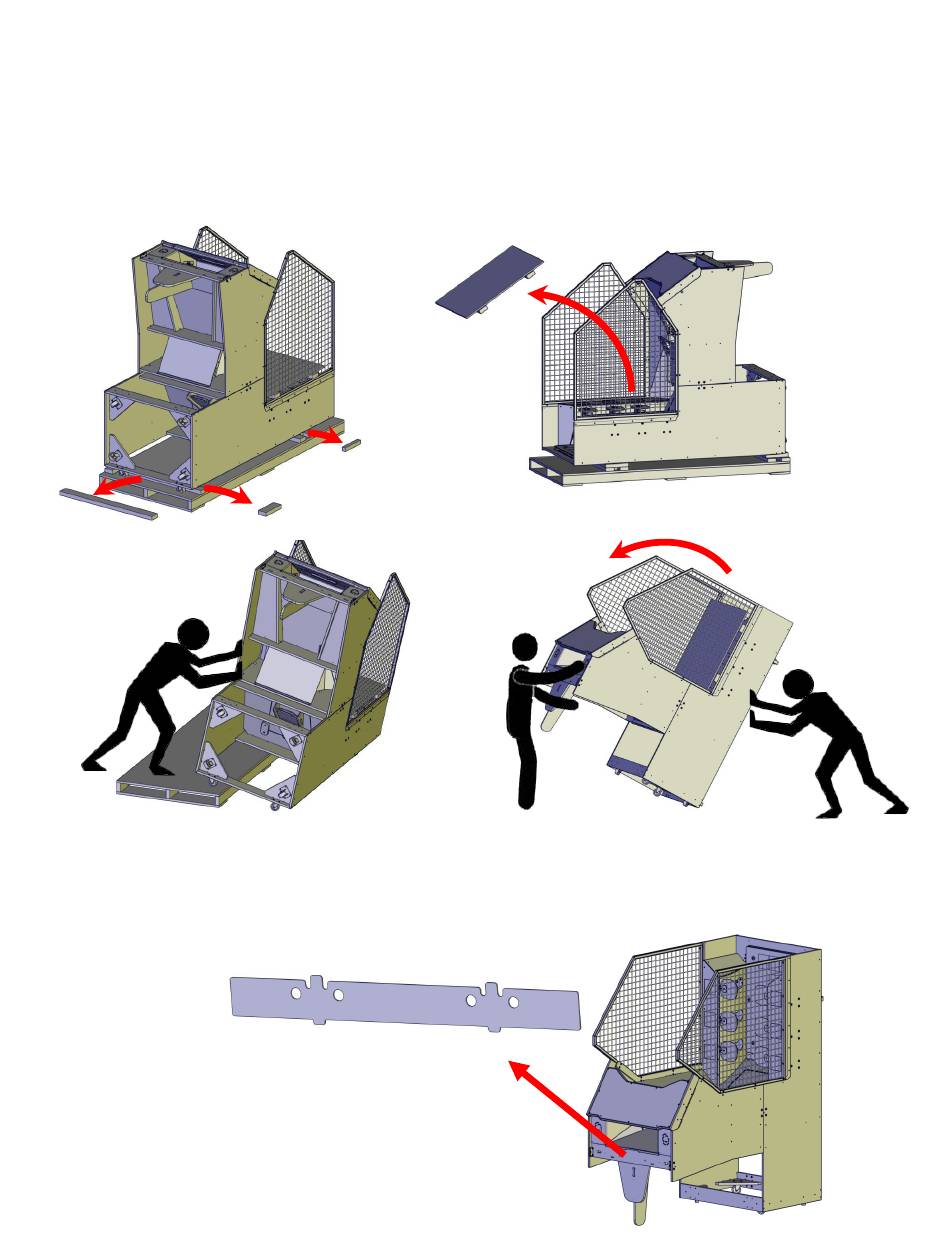

Step 1: MAKE SURE YOU HAVE REMOVED THE ROOF AND PODIUM FIRST!
Remove the skid cleats that are around the wheels. Remove the temporary floor that held the
podium to the cabinet during shipping. Then slide the cabinet off the skid.
With a helper, stand the cabinet up right.
STEP 2:
QB3024X wire cover. Put aside for later on.
Cut the zip ties holding the
11
