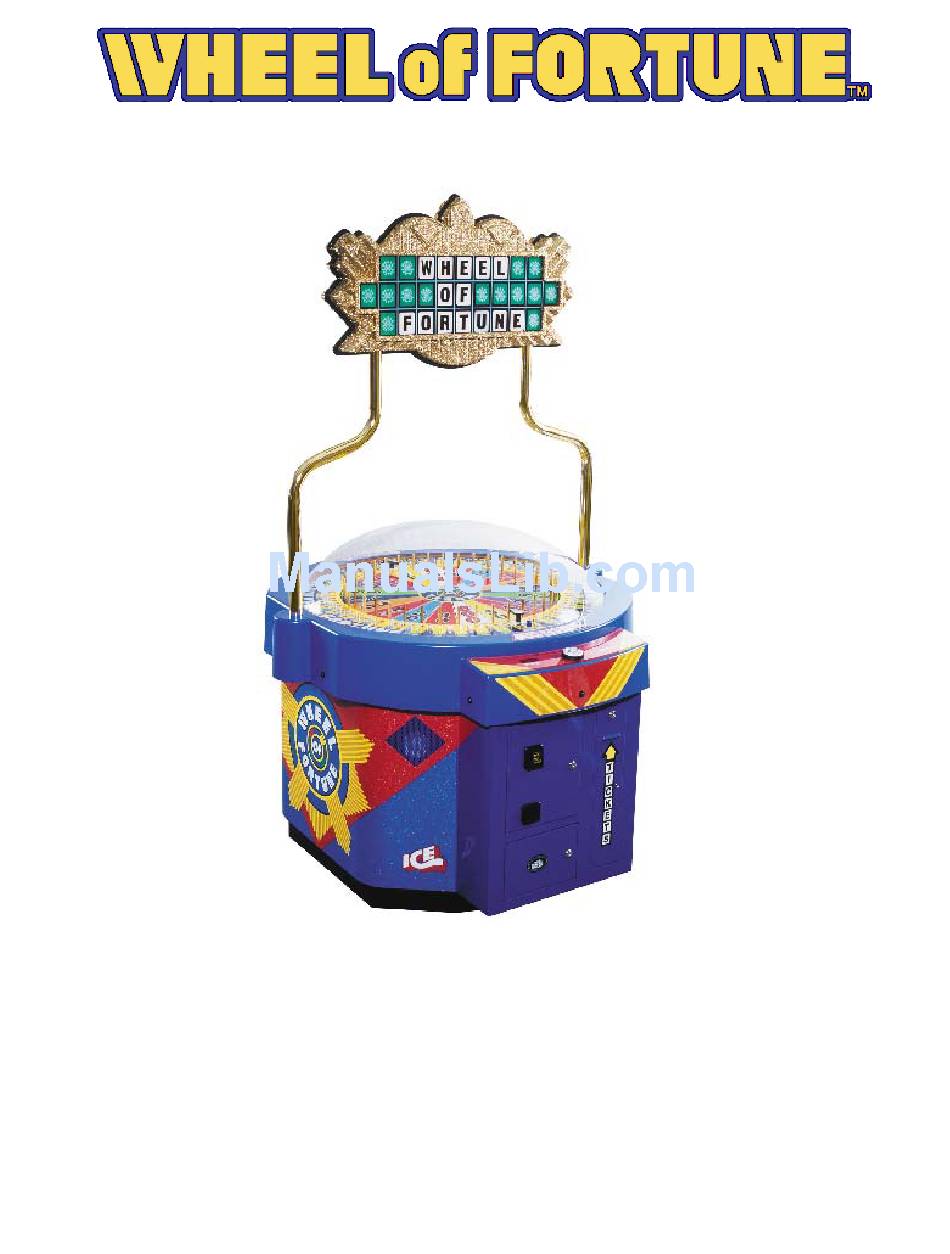

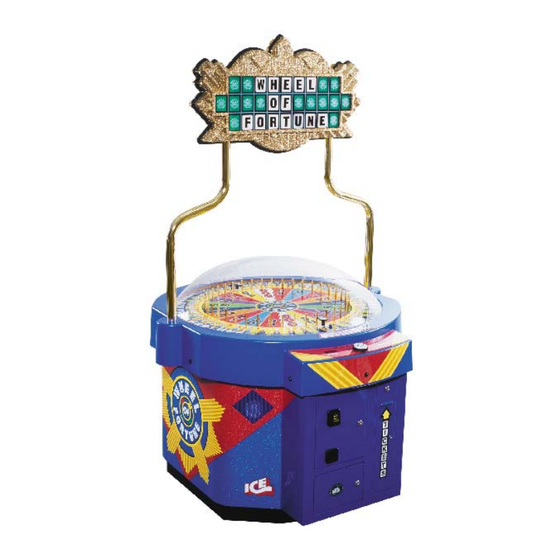

OWNERS AND SERVICE MANUAL
INNOVATIVE CONCEPTS IN ENTERTAINMENT INC.
10123 MAIN STREET, CLARENCE, NY 14031
SERVICE: 1–716–759–0360
FAX: 1–716–759–0884
E–MAIL: service@icegame.com
WEBSITE: icegame.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Wheel Of Fortune and is the answer not in the manual?

Questions and answers

Related Manuals for Innovative Concepts in Entertainment Wheel Of Fortune

Summary of Contents for Innovative Concepts in Entertainment Wheel Of Fortune

  • Page 1 OWNERS AND SERVICE MANUAL INNOVATIVE CONCEPTS IN ENTERTAINMENT INC. 10123 MAIN STREET, CLARENCE, NY 14031 SERVICE: 1–716–759–0360 FAX: 1–716–759–0884 E–MAIL: service@icegame.com WEBSITE: icegame.com...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION GAME FEATURES GAME PLAY INSTALLATION BEFORE YOU BEGIN INSTALLATION PROGRAMMING OPTIONS INTRODUCTION HOW TO ADJUST OPTIONS USING THE PROGRAMMING OPTIONS MAINTENANCE QUICK TROUBLESHOOTING GAME REPAIR OPERATIONAL BACKGROUND TROUBLESHOOTING PHILOSOPHY MECHANICAL REPAIR PARTS LISTINGS SCHEMATICS WARRANTY INFORMATION...

  • Page 3: Introduction

    Cyclone", the great name recognition of the immensely To spin the wheel the player must stop the rotating light in popular TV show Wheel of Fortune", and by adding the the “Spin Zone”. spinning wheel and great game sounds, we’ve taken the “Quick coin”...

  • Page 4: Installation

    BEFORE YOU BEGIN TOOLS YOU WILL NEED The game normally comes fully assembled and ready for WARNING: WHEN INSTALLING THIS GAME, A use. GROUNDED A.C. RECEPTACLE MUST BE USED. FAILURE TO DO SO COULD RESULT IN INJURY TO If however, you need to disassemble or reassemble the YOURSELF OR OTHERS.

  • Page 5: Programming Options

    INTRODUCTION SETTING YOUR PAYOUT PERCENTAGE The Wheel of Fortune" game is extremely flexible from a programming standpoint. This allows the customer to “fine The game has three basic adjustments to allow for tune” the game to his or her exact needs.
  • Page 6 PROGRAMMING OPTIONS FORMULATING YOUR PERCENTAGES ATTRACT TIME (OPTION #5) The game comes from the factory based on a average 25 cent play, and a 1 cent retail ticket value, with a payback of This option determines the duration of time between attract 40%.
  • Page 7 PROGRAMMING OPTIONS ZONE VALUES WHEEL JACKPOT VALUES (OPTIONS #8–27) The jackpot values can be adjusted through programming and by changing the decals themselves. This helps to adjust for differing game play and ticket values The ring light values can be adjusted through programming and by changing the decals on the playfield itself.
  • Page 8 PROGRAMMING OPTIONS BIG JACKPOT LOCKUP WINABILITY (OPTION #30) (OPTION #32) This option will allow the game to “Lock up” when either If you wish to keep your percentages more accurate, or have of the jackpot wedges are hit. This allows the location to some especially talented players that always win easily, you save on tickets if the jackpot wedges are set to pay out a may want to use this option.
  • Page 9 PROGRAMMING OPTIONS FACTORY RESET (OPTION #35) This option is used to GLOBALLY RE–SET all of the software settings to the FACTORY DEFAULT. Setting a “1” will re–set all of the settings to their factory default as when you first received the game. The default value for this option is “0”...
  • Page 10 Total Wheel Value = 905 + J1 + J2 1. Assign Ticket Values to A–J, y (normally 19), and Jackpot 1 (J1; normally 300) and Jackpot 2 (J2; normally 500) 2. Add up values of A–D 3. Add up values of E–J and Divide by 6 4.

  • Page 11: Maintenance

    MAINTENANCE GENERAL MAINTENANCE TICKET DISPENSERS This game has been designed to be as trouble and The biggest problem ticket dispensers have is ticket dust maintenance free as possible. blocking the optical detectors. It is a good idea to occasionally use compressed air to remove the dust from With this in mind the only basics are to keep the game the dispensers.

  • Page 12: Quick Troubleshooting

    QUICK TROUBLESHOOTING GAME WILL NOT TAKE OR ADD MONEY CORRECTLY · Micro switch not working or returning properly. Check and repair or replace as necessary. · Bad Harnessing or connector. Check w/ohm meter and repair as necessary. · Game programming set incorrectly. Check programming option and re–program if necessary. ·...
  • Page 13 QUICK TROUBLESHOOTING LIGHT RING DOES NOT LIGHT · Bad Main P.C. Board. Fix or replace main board. · Bad light ring board. Find problem board and replace or repair as necessary. · Bad light ring board harnessing. Repair as necessary. ·...

  • Page 14: Game Repair

    This will help you to know if you have a problem with a specific component, or The Wheel of Fortune" game has been manufactured with maybe a problem with either the wiring or the Main P.C.
  • Page 15 GAME REPAIR REPLACEMENT & REPAIR Remove the plastic spacers that hold the board in place. Remove the connector to the board. LIGHT RING SERVICING Service the light ring as follows: Remove the Allen bolts that hold the cover on to the cabinet.
  • Page 16 GAME REPAIR MARQUEE BULB / P.C. BOARD Lift the cover up and remove the dome. (See dome replacement instructions) SERVICE Remove the wheel by unscrewing the 3 screws To replace a light bulb or remove the P.C. Board follow that hold it in place. the directions below.
  • Page 17 GAME REPAIR CREDITS / TICKETS OWED P.C. DOME REPLACEMENT BOARD SERVICE Remove the Allen head bolts that hold the cover to Remove the Allen bolts that hold the cover on to the the cabinet. cabinet. Lift up the cover and remove the Dome. Set the new dome onto the playfield centered Lift the cover up to access the Display P.C.

  • Page 18: Parts Listings

    PARTS LISTINGS ELECTRONIC / ELECTRICAL Parts denoted with * indicate available as part of a specially discounted spares kit. WF2002X Transformer 2005* 906 Light Bulb 2008* Solenoid, Spring Tensioner PP2011X* Wheel Motor, D.C. WF2034X Main P.C. Board MECHANICAL PARTS WF2037X* Marquee P.C. Board WF2038X* Clicker Position P.C.
  • Page 19 115 VAC 60~ 16.8 VAC @ 3.75A 18 AWG 18 AWG 14 VAC @ 2.75A 18 AWG PER GAME 8 VAC @ 0.5A 18 AWG Wheel Of Fortune TITLE WFREV2.VSD FILENAME #WF2002X - TRANSFORMER ASY. DESCRIPTION MMARTIN DRAWN BY 2/29/00...
  • Page 20 To Cabinet Frame To Cabinet Frame " " GREEN/YELLOW GREEN/YELLOW #652 #652 TO BASE OF TRANSFORMER PER GAME Wheel Of Fortune TITLE WFREV2.VSD FILENAME #WF2004X - GROUNDING STRAP DESCRIPTION MMARTIN DRAWN BY 2/29/00 6/26/01 2 OF 25 DATE REVISED PAGE...
  • Page 21 BLACK/BLUE 2 " # 8380 - 1/8 " CLEAR WHEEL BLACK/BLUE WHEEL SHRINK TUBE 4 PIN PLUG #2099 SOLID PIN #2100S PER GAME Wheel Of Fortune TITLE WFREV2.VSD FILENAME # WF2008X - WHEEL MOTOR DESCRIPTION ASSEMBLY MMARTIN DRAWN BY 2/29/00...
  • Page 22 #653T .250 To Coin Switch black/white #653T # 2293 7-PIN AMP HOUSING .250 AMP CONTACT PIN #2201 # 2239 KEY PLUG.156 PER GAME Wheel Of Fortune TITLE WFREV2.VSD FILENAME #WF2011AX - P2 STATION HARNESS DESCRIPTION MMARTIN DRAWN BY 2/29/00 6/13/01...
  • Page 23 #653T .250 To Coin Switch black/white #653T # 2293 7-PIN AMP HOUSING .250 AMP CONTACT PIN #2201 # 2239 KEY PLUG.156 PER GAME Wheel Of Fortune TITLE WFREV2.VSD FILENAME #WF2011X - P1 STATION HARNESS DESCRIPTION MMARTIN DRAWN BY 2/29/00 6/13/01...
  • Page 24 +12VDC white/brown To Outer Wheel OuterWheelLong *2 black/white Sensor PCB P GND 3 PIN AMP HOUSING #2945 AMP CONTACT #2201 PER GAME Wheel Of Fortune TITLE WFREV2.VSD FILENAME #WF2013AX - Wheel Sensor Harness DESCRIPTION MMARTIN DRAWN BY 2/29/00 6/13/01 6 OF 25...
  • Page 25 To Clicker Solenoid SPLIT PIN #2100 YELLOW/BLACK #651 #2909 YELLOW/BLACK #651 .187 .187 .187 #WF2013BX- SOLENIOD EXTENTION PER GAME Wheel Of Fortune TITLE WFREV2.VSD FILENAME #WF2013X - CLICKER/CONTROL DESCRIPTION PANEL EXTENTION MMARTIN DRAWN BY 2/29/00 6/13/01 7 OF 25 DATE...
  • Page 26 LATCH BLUE BLUE P GND P GND 6 PIN PLUG #2173 6 PIN PLUG #2173 SOLID PIN #2100S SOLID PIN #2100S PER GAME Wheel Of Fortune TITLE WFREV2.VSD FILENAME #WF2014X - RING INTERCONNECT DESCRIPTION HARNESS MMARTIN DRAWN BY 2/29/00 5/3/01...
  • Page 27 .250 #653T PINS 1 & 7: KEY PLUG #2239 " red/white .250 #653T To Right Speaker Of Station 2 brown/white .250 #653T PER GAME Wheel Of Fortune TITLE WFREV2.VSD FILENAME # WF2018X - SPEAKER HARNESS DESCRIPTION MMARTIN DRAWN BY 2/29/00 7/23/01...
  • Page 28 12VDC 12VDC yellow/green yellow/green CLOCK CLOCK 6 PIN PLUG #2173 6 PIN PLUG #2173 SOLID PIN #2100S SOLID PIN #2100S PER GAME Wheel Of Fortune TITLE WFREV2.VSD FILENAME #WF2022X - DISPLAY INTERFACE DESCRIPTION HARNESS MMARTIN DRAWN BY 2/29/00 6/13/01 10 OF 25...
  • Page 29 +13VDC CLOCK 1 To Light Ring Harness D DATA B LTCH BLACK 6 PIN PLUG #2173 SOLID PIN #2100S PER GAME Wheel Of Fortune TITLE WFREV2.VSD FILENAME # WF2050AX - LIGHT RING HARNESS DESCRIPTION MMARTIN DRAWN BY 2/29/00 5/4/01 11 OF 25...
  • Page 30 + 13VDC + 13VDC 9 PIN PLUG #2292 9 PIN CAP #2551 SPLIT PIN #2100 FEMALE PIN #2102 PIN 7: KEY PLUG #2549 PER GAME Wheel Of Fortune TITLE WFREV2.VSD FILENAME # WF2050X - LIGHT RING EXTENTION DESCRIPTION HARNESS MMARTIN...
  • Page 31 + 12UVDC brown/blue CLK 5 brown/red DDATA brown/green BLTCH BLACK/WHITE D GND BLACK BLACK BLACK BLACK PER GAME Wheel Of Fortune TITLE WFREV2.VSD FILENAME #WF2051X - MARQUEE HARNESS DESCRIPTION MMARTIN DRAWN BY 2/29/00 6/13/01 13 OF 25 DATE REVISED PAGE...
  • Page 32 #PC20217 To Tilt Sensor black/white #PC20217 * Add #2611 - 1/4" Shrink tube (cut at 1 1/2") To each Ring Terminal PER GAME Wheel Of Fortune TITLE WFREV2.VSD FILENAME #WF2052X - TILT/WHEELSENSOR EXT. DESCRIPTION HARNESS MMARTIN DRAWN BY 2/29/00...
  • Page 33 * Add 6" of Spiral Wrap (# 8069) violet/red #651 " To Low Ticket .187 Switch black #649 .187 PER GAME Wheel Of Fortune TITLE WFREV2.VSD FILENAME # WF2053X - TICKET DOOR HARNESS DESCRIPTION MMARTIN DRAWN BY 2/29/00 6/13/01 15 OF 25...
  • Page 34 D Data BLACK Owed Display P GND ORANGE +12VDC yellow/green Clock 6 PIN PLUG #2173 SOLID PIN #2100S PER GAME Wheel Of Fortune TITLE WFREV2.VSD FILENAME # WF2054X - Control Panel Harness DESCRIPTION MMARTIN DRAWN BY 2/29/00 5/3/01 16 OF 25...
  • Page 35 GRN/YEL BLUE Extention Harness " 3 PIN CAP #2288 FEMALE #2102 To Base Of GRN/YEL #PC20217 Transformer PER GAME Wheel Of Fortune TITLE WFREV2.VSD FILENAME # WF2055X - POWER MODULE DESCRIPTION HARNESS MMARTIN DRAWN BY 2/29/00 6/13/01 17 OF 25...
  • Page 36 P GND 5 PIN PLUG #8129 5 PIN CAP #8130 SOLID PIN #2100S FEMALE PIN #2102 PIN 5: 20-14 AWG #8260 PER GAME Wheel Of Fortune TITLE WFREV2.VSD FILENAME # WF2056AX - P1 TICKET DOOR EXT. DESCRIPTION MMARTIN DRAWN BY...
  • Page 37 P GND 5 PIN PLUG #8129 5 PIN CAP #8130 SOLID PIN #2100S FEMALE PIN #2102 PIN 5: 20-14 AWG #8260 PER GAME Wheel Of Fortune TITLE WFREV2.VSD FILENAME # WF2056X - P2 TICKET DOOR EXT. DESCRIPTION MMARTIN DRAWN BY...
  • Page 38 WHEEL Assembly BLACK/BLUE BLACK/BLUE WHEEL WHEEL 4 PIN PLUG #2099 4 PIN CAP #2101 SOLID PIN #2100S FEMALE PIN #2102 PER GAME Wheel Of Fortune TITLE WFREV2.VSD FILENAME # WF2057AX - WHEEL MOTOR DESCRIPTION HARNESS MMARTIN DRAWN BY 2/29/00 5/3/01...
  • Page 39 Harness BLACK/BLUE BLACK/BLUE WHEEL WHEEL 4 PIN PLUG #2099 4 PIN CAP #2101 SOLID PIN #2100S FEMALE PIN #2102 PER GAME Wheel Of Fortune TITLE WFREV2.VSD FILENAME # WF2057X - WHEEL MOTOR EXT. DESCRIPTION HARNESS MMARTIN DRAWN BY 2/29/00 6/13/01...
  • Page 40 AC N .187 * Strip Back 3" From End 3 PIN PLUG #2206 Cut Black & White at 1 1/2" SOLID PIN #2100S PER GAME Wheel Of Fortune TITLE WFREV2.VSD FILENAME # WF2058AX - LIGHT BALLAST POWER DESCRIPTION HARNESS MMARTIN...
  • Page 41 WHITE WHITE AC N AC N 3 PIN CAP #2288 3 PIN PLUG #2206 FEMALE #2102 SOLID PIN #2100S PER GAME Wheel Of Fortune TITLE WFREV2.VSD FILENAME # WF2058X - LIGHT BALLAST POWER DESCRIPTION EXTENTION HARNESS MMARTIN DRAWN BY 2/29/00...
  • Page 42 .110 #650 .110 #2561 4PIN IDC #2562 COVER STRAIN RELIEF " #650 .110 STEP #650 .110 PER GAME Wheel Of Fortune TITLE WFREV2.VSD FILENAME # WF2059AX - PROGRAMMING DESCRIPTION BUTTONS HARNESS MMARTIN DRAWN BY 2/29/00 6/13/01 24 OF 25 DATE...
  • Page 43 P GND orange + 12VDC 4 PIN MLX CAP #2158 FEMALE PIN #2176 2 PIN AMP HOUSING #2240 AMP CONTACTS #2201 PER GAME Wheel Of Fortune TITLE WFREV2.VSD FILENAME # WF2059X - FAN HARNESS DESCRIPTION MMARTIN DRAWN BY 2/29/00...
  • Page 44 Warranty I.C.E warrants all components in the SUPER CHEXX" game to be free of defects in materials and workmanship for a period of ninety days from the date of purchase. This warranty does not cover items damaged due to normal wear and tear, subjected to abuse, improperly assembled by the end user, modified, repaired, or operated in a fashion other than that described in the service manual.
