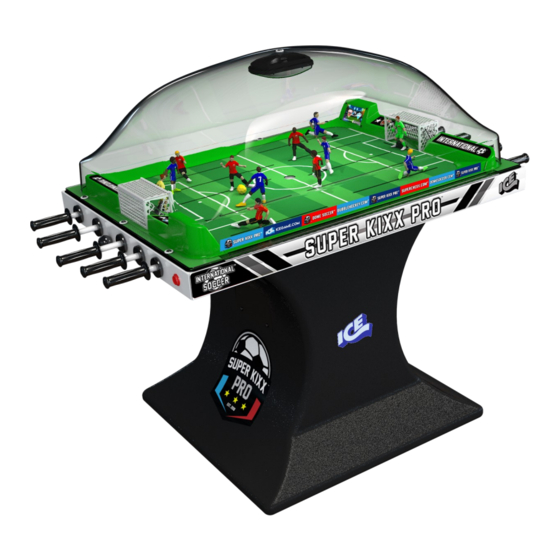

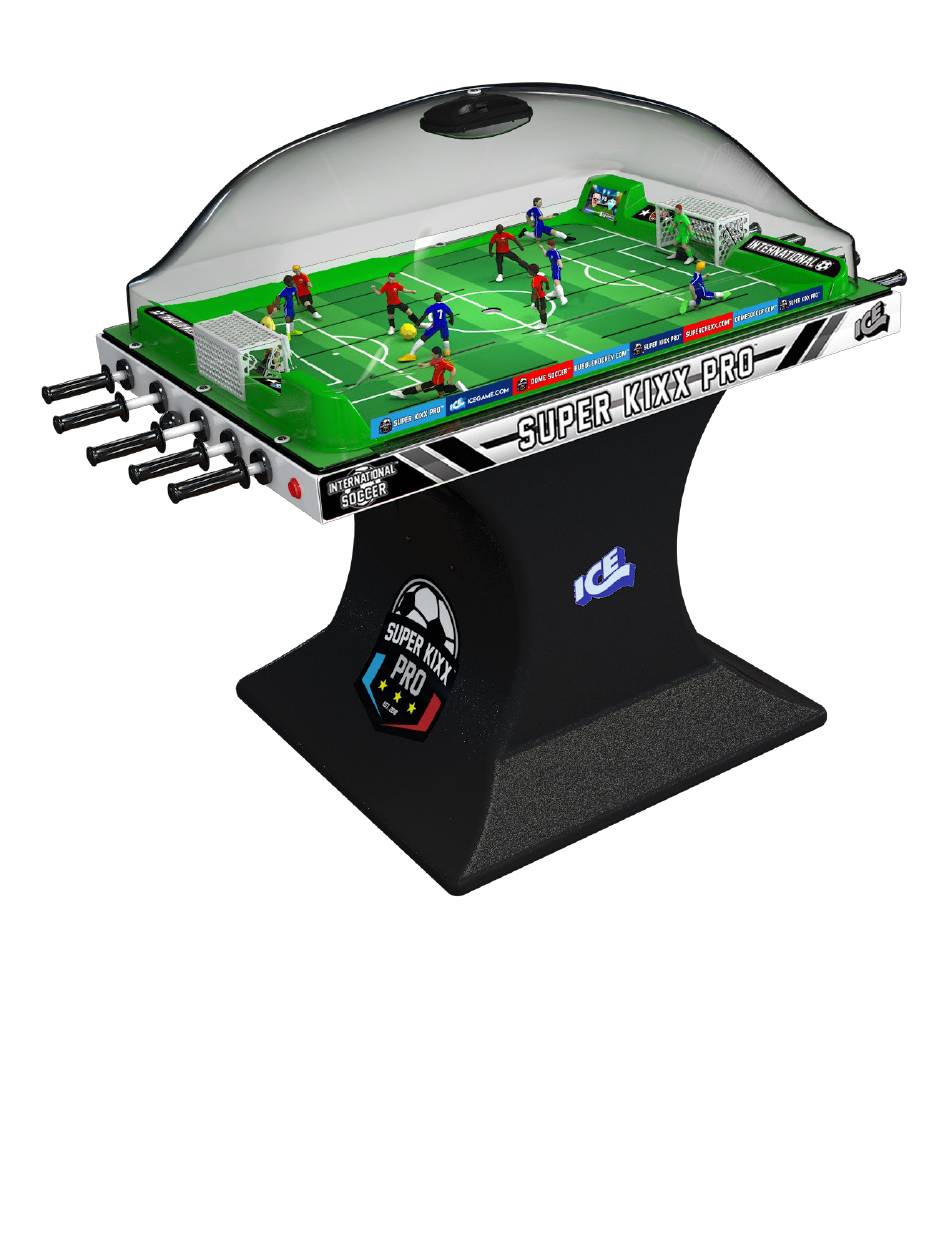

OWNERS AND SERVICE MANUAL
INNOVATIVE CONCEPTS IN ENTERTAINMENT INC.
10123 MAIN STREET, CLARENCE, NY 14031
SERVICE: 1-716-759-0360
FAX: 1-716-759-0884
E-MAIL: service@icegame.com
WEBSITE: www.icegame.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Super Kixx Pro and is the answer not in the manual?

Questions and answers

Summary of Contents for Innovative Concepts in Entertainment Super Kixx Pro

  • Page 1 OWNERS AND SERVICE MANUAL INNOVATIVE CONCEPTS IN ENTERTAINMENT INC. 10123 MAIN STREET, CLARENCE, NY 14031 SERVICE: 1-716-759-0360 FAX: 1-716-759-0884 E-MAIL: service@icegame.com WEBSITE: www.icegame.com...
  • Page 2: Table Of Contents

    Table of Contents Safety Gameplay Elevator Assembly 4 - 9 Connecting Wire Harnessing Ball Return 9-11 Installing Top to Base Connecting Wire Harness Inside Base 13-14 How to open Dome Programming Split Base Home Edition Maintenance 20-21 Troubleshooting Playfield Player Positions 23-24 Elevator Belt Routing Diagram Components...
  • Page 3 SAFETY AND WARNINGS BEFORE YOU BEGIN WARNING: WHEN INSTALLING THIS GAME, A GROUNDED A.C. RECEPTACLE MUST BE USED. FAILURE TO DO SO COULD RESULT IN INJURY TO YOURSELF OR OTHERS. FAILURE TO USE A GROUNDED RECEPTACLE COULD ALSO CAUSE IMPROPER GAME OPERATION, OR DAMAGE TO THE ELECTRONICS.
  • Page 4 Parts Included Inside Base...
  • Page 5: Elevator Assembly

    INSTALLING THE BALL & ELEVATOR ASSEMBLY Step1: A) Pace the top of the game so that the dome goes inside the box. This will allow you to install the elevator with- out scratching the dome. B) INSTALL the GAME BALL NOW. Drop it through the center hole.
  • Page 6 Step 3: Locate the ramp part that is labeled 2. Align the ramp under the elevator mount (See figure A) and between the three cabinet nuts (See where it is labeled 2). IMPORTANT: Do not tighten any screws or nuts until BOTH OF THE elevator RAMPS have been set in place and you have completed step Use one AA6174 screw at the far end to mount ramp part 2 to the cabinet.
  • Page 7 Step 5: Locate the ramp cover labeled 4. Attach the ramp cover with three AA6072 nuts (location shown with red arrows). Make sure the cover is flush to the ramp and pay attention to the three points shown with yellow arrows below. DO NOT TIGHTEN ANY HARDWARE YET.
  • Page 8 Step 7: (continued on next page) HOW TO TIGHTEN the elevator and ball ramp assembly: Make sure the cover is flush to the ramp and CONFIRM BELT IS NOT TRAPPED BETWEEN THE METAL COVER AND RAMP! BELT RAMP Do NOT pinch Belt in RAMP COVER metal ramp cover.
  • Page 9 Step 7: (continued FROM previous page) Make sure the RELAY BOARD is located on the same side as the wire harness hole. RELAY BOARD Wire harness hole this side. AFTER YOU HAVE VERIFIED there is NOT interference on the BELT and the RELAY BOARD is in the correct positon, finish by inserting AA6174 screw with AA6841 washer into the three remaining open holes on each side of the assembly.
  • Page 10 CONNECTING THE WIRE HARNESSING FOR RAMP ASSEMBLY Step 1: Locate the wire harness labeled 6 com- ing from the elevator motor. Step 2: Plug the wire harness labeled 6 into the mating connector labeled 6 on the relay board. Secure wire with zip tie.
  • Page 11 Step 5: Locate the two wire harnesses labeled 8. One will be coming from the elevator limit switches while the other will be coming from the main cabinet harnesses. Connect the two harnesses together.
  • Page 12: Installing Top To Base

    INSTALLING TOP TO THE BASE (2 person operation) Step 1: With a helper, lift the cabinet top and position the base cabinet so that the single door and the top cabinet hinge are on the same side. HINGE ** Warning ** When LIFTING and installing the top cabinet to Single Door the lower cabinet, DO NOT allow THE ELEVATOR...
  • Page 13: Connecting Wire Harness Inside Base

    Step 3: Connect After the dome TOP cabinet is placed on the base, look inside the base unit and Locate the green with yellow stripe wire and attach it to the power supply grounding plug in FIG. B. FIGURE B...
  • Page 14 Step 4: The main circuit board is located on the single access door. Open the access door to connect the two harnesses to the main board. Step 5: Plug the game’s AC cord into a properly GROUNDED AC outlet. Open the front door to access the power switch.
  • Page 15: How To Open Dome

    HOW TO OPEN DOME Once the game has been fully assembled, remove the Allen bolts around the dome. The Allen wrench is included in the spare parts kit (AA6001B). Also included in the spare kit is a metal wire with a hook on one end and a loop on the other. Attach the “S” hook into a hole on the dome and the loop to a goalie handle.
  • Page 16: Programming

    HOW TO ENTER PROGRAM MODE Press button in attract mode Once in program mode, the jumbo screen will show the game option and current value. Press the “SEL” button to go to the next option. • Press “Step” and “TEST” to change the option value. •...
  • Page 17: Split Base Home Edition

    Split base Home edition - How to split the base Step 1: Start on the side with the control panel and remove the five right bolts shown. Do not remove the left side bolts. Then remove the bolts on the same side on the other side of the cabinet. You game might have different decals then shown.
  • Page 18 Game Options Game Volume Set the game’s volume during play. Values can be 1 – 10. Attract Volume Sets the game’s volume when no one is playing. Values can be 1 – 10 Cost Per Play How many pulses to start a game. To play for no money, set it to free. Values can be Free – 8 Coin #2 Value How many pulses is coin line 2 worth? This is used when you accept more than one type of coin.
  • Page 19 Game Abandonment This setting ends the game after the allotted “Game Length” setting. Values can be set 0-10 minutes. Example: Game length is set to 1 1/2 minutes; however, if the golden goal is set to “on” then the game will continue until someone scores.
  • Page 20: Maintenance

    MAINTENANCE All parts in the SUPER KIXX PRO™ Hockey Game have been manufactured to the highest stand- ards possible. WARNING: THIS GAME DOES NOT REQUIRE ANY LUBRICATION. USE OF ANY OILS OR GREASE MAY VOID YOUR WARRANTY. PARTS KIT Included in the spare parts kit, is a wire cable with loop & hooks. This is used to hold the dome open when tilted back to service the game.
  • Page 21 MAINTENANCE PLAYFIELD SURFACE The playfield should be cleaned as needed, using Windex™, Fantastic™, or a comparable product. Apply liberally to a lint-free cloth, wipe surface thoroughly, and let dry. DOME The Lexan dome should be cleaned as needed, using a furniture polish type of cleaner. Apply to a lint-free cloth and wipe dome thoroughly.
  • Page 22: Troubleshooting

    TROUBLE SHOOTING TIPS GEARBOX IS DIFFICULT TO TURN 1. A gearbox-coupling collar may have been forced against a gearbox causing uneven or difficult turning. The usual cause for this is a handle grip coming off a rod and allowing the gearbox to hit either another gearbox or a cabinet end.
  • Page 23: Playfield Player Positions

    Play Field Player Assignment Left Wing #11 Left Defender #3 Goalie #1 Center Forward #9 Right Defender #2 Right Wing #7 ROD Assignments Rod assembly A Rod assembly A Rod assembly B Rod assembly C Rod assembly D Rod assembly D Rod assembly C Rod assembly B Rod assembly A...
  • Page 24 Players Positions and part Numbers Left Wing #11 Right Wing #7 SK4015X SK4014X Center Forward #9 SK4011X Right Defender #2 Left Defender #3 SK4013X SK4012X *Note: Colors will vary. Goalie #1 SK4016X...
  • Page 25 Playfield Components RB2009BMJ Score Sensor EV2005 SC1007-P802 SC1008-P802 SC1009-P802 SC1010-P802 SC1010-P802 SC1009-P802 SC1008-P802 SC1007-P802 RB2009BMJ Score Sensor EV2005...
  • Page 26 Rod assembly A SC3008 SC4004 SC3016 SC3020 SK3123 SC1019 SC3035 SC3017X SC3012X SC1003X 3035 AA6017 Rod assembly B SC3008 3016 SC3020 SC3035 SC4004 SK3124 SC3012X SC1003X SC3035 SC3017X...
  • Page 27 Rod assembly C SC1003 SC3008 3016 SC3020 SK3122 3035 SK4004 SC3017X 1019 SC1003 3035 Rod assembly D 3016 SC3020 3035 3035 SK4004 SC3008 SK3121 SC1003 SC3017X 1019 SC1003 SC3012X...
  • Page 28 Goalie Assembly COTTER PIN 1/16 X 3/4 STAINLESS RB2009BX AA6016 SC3010X SC3007 SC1018X 1005 6010 6006 6011...
  • Page 29 SK3108X PC6022 SK3160 DOME AA6185 AA6913 AA6351 SK3193 AA6912 AA6446 SK3104 SK3105 AA6631 = small SK7125PC SK344B = large...
  • Page 30 Remove the four 6004A nuts to remove the monitor 6004A from the SK3104 plastic ramp. If needed, push the micro SDcard in and it will pop out in case you are replacing it. Remove the five SK344B plastic insert that hold the SK3104 plastic ramp with the monitor installed.
  • Page 31: Elevator Belt Routing Diagram

    Proper Belt Routing Diagram. (Both Belts)
  • Page 34 WARRANTY POLICY I.C.E. Inc warrants all components in your new Super KIXX Pro Home Edition machine to be free of defects in materials and workmanship for the period of ONE YEAR from purchase date. To be a “Home Edition” game it must not contain a coin door or be able to be operated by money.
