- Page 1 OWNERS AND SERVICE MANUAL INNOVATIVE CONCEPTS IN ENTERTAINMENT INC. 10123 MAIN STREET, CLARENCE, NY 14031 SERVICE: 1-716-759-0360 FAX: 1-716-759-0884 E-MAIL: service@icegame.com WEBSITE: www.icegame.com...
-
Page 2: Table Of Contents
Table of Content Game Configurations Safety and warnings before you begin Before you Begin Assembly and Setup Program Navigation The Options Defined 9 - 12 Universal Card Connection Warranty Revision B 10/31/2018... -
Page 3: Safety And Warnings Before You Begin

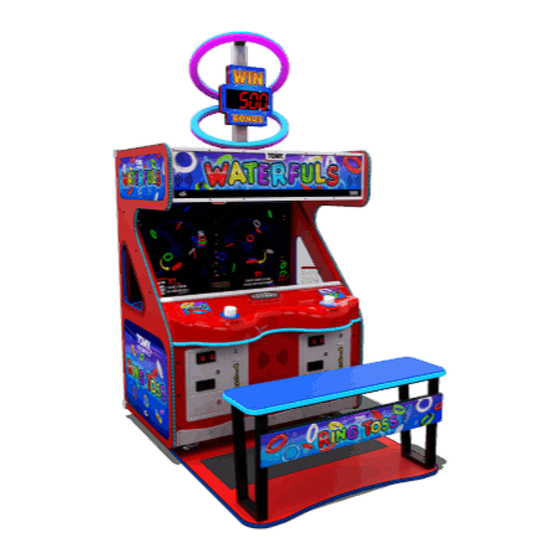

SAFETY AND WARNINGS BEFORE YOU BEGIN WARNING: WHEN INSTALLING THIS GAME, A GROUNDED A.C. RECEPTACLE MUST BE USED. FAILURE TO DO SO COULD RESULT IN INJURY TO YOURSELF OR OTHERS. FAILURE TO USE A GROUNDED RECEPTACLE COULD ALSO CAUSE IMPROPER GAME OPERATION, OR DAMAGE TO THE ELECTRONICS. NOTE: THIS GAME IS INTENDED FOR INDOOR USE ONLY. - Page 4 Waterfuls Ticket and Coin Door Options Product Number: WR1000EX Card Swipe and E-Ticket Locations. (No Coin doors or Ticket mechs) Product Number: WR1000TX Card Swipe with Paper Ticket Locations. (No Coin doors, just Ticket Doors w/mechs. Product Number: WR1000RAX/A/B/C/E Non-Card Swipe locations. (Coin doors, Ticket doors w/mechs).
-
Page 5: Before You Begin
Before you Begin AA6459 If your game has a coin box, you should find one Allen wrench, one Phillip screw, and one USB mouse. If any of these items are missing, please contact ICE Service Department at (716) 759- 0360 Monday through Friday 8:30am to 6:00pm Eastern Standard Time. -
Page 6: Assembly And Setup
Assembly and Setup Remove the three Allen bolts at the front of the marquee then lift the top up. If installed remove the two upper bolts at the top. Slide the marquee assembly through the top hole and at the same time insert the blue, orange, and black wire harness through the hole as shown. - Page 7 Assembly and Setup: Once the belt is installed, secure the marquee with the Phillips screw at the bottom of the shaft. Hand tighten only. Plug the three harnesses together with their mating ends. AC, Display, and LED power. Secure the harnesses to the installed tie-wrap mount.
-
Page 8: Program Navigation
Program Navigation: Programming is done from the front so either pass the mouse through the ticket door, coin door, or around from the back. Press the middle button to Enter program mode. Increase Value Navigate to Option Decrease Value PS2 ports are not functional after power has been applied. Use USB Mouse instead, it can be plugged in at anytime. -
Page 9: The Options Defined
The Options Defined: Credits per play: How many pulses to start the game. (Default 1) Time per play: How much game time given to the player. (Default 30 sec) Set Points per ticket: Allows you to set how many points must be scored to win tickets. The amount of tickets you win is determined by the next option. - Page 10 The Options Defined: Bonus: DO NOT DISABLE THIS SETTING. Reset Bonus: Reset bonus back to starting bonus value. Bonus Tickets to Win: how many tickets you win with this bonus. (Default 1,000) # of Games until Decrement: Each game played without winning a bonus before decrementing score to beat.
- Page 11 The Options Defined: The following sets the values of points scored per ring. (Default) Red Ring Value: (Default is 10) Green Ring Value: (Default is 20) Blue Ring Value: (Default is 30) Silver Ring Value: (Default is 50) Gold Ring Value: (Default is 100) Red Ring Quantity: (Default is 5) Green Ring Quantity: (Default 4) Blue Ring Quantity: (Default 3)
- Page 12 Ticket Value - This sets the value of your ticket. Default is .01. Credit Value - This defines how much money each game costs. It is used for book keeping only and doesn’t change the pulses to start the game. The remainder of the screens are for book keeping purposes.
- Page 13 Step 1: Underneath the control panel are two hatches that allow you to service the pump assembly. The pump assembly is removed from the bottom. Remove the hatch under the pump assembly you wish to service. Step 2: Remove the hose by pulling down. Then the whole pump assembly can be removed from the bottom.
- Page 14 Replacing the Diaphragm ● Remove the 655 screws using a square bit. ● Slide the block out. ● Remove the Diaphragm and replace. ● Assembly in reverse. WR304 WR317 6314 WR400 WR105 SK624 WR317 WR102...
- Page 15 WR3020 Mirror WR3023X WR3001X...
- Page 16 Universal Card link Connection See Wiring Insert for wire colors and which connections are used. Pin 1. +12v- Supply to Card System = Minimum of 2A available for the card systems and a Max of 3A. Pin 2. Coin 1 - input to the game PCB. Pin 3.
-
Page 17: Warranty
WARRANTY STATEMENT Innovative Concepts in Entertainment 10123 Main St. Clarence, NY 14031 Phone #: (716) - 759 – 0360 Fax #: (716) – 759 – 0884 ICE Inc warrants that all of its products will be free from defects in material and workmanship.
