21 Internal Fuse

The thyristor unit have internal fuse extrarapid at low I²t for the thyristor protection of against the
short-circuits.
The Fuses must have I²t 20% less than thyristor's I²t. The warranty of thyristor is null if no proper fuses
are used.
Type
060
090
120
150
180
210
Caution: High speed fuses are used only for the thyristor protection and can not be used to
protect the installation.
Caution: The warranty of thyristor is null if no proper fuses are used. See tab.
Warning: When it is supply, the Thyristor unit is subject to dangerous voltage, don't open
the Fuse-holder module and don't touch the electric equipments.

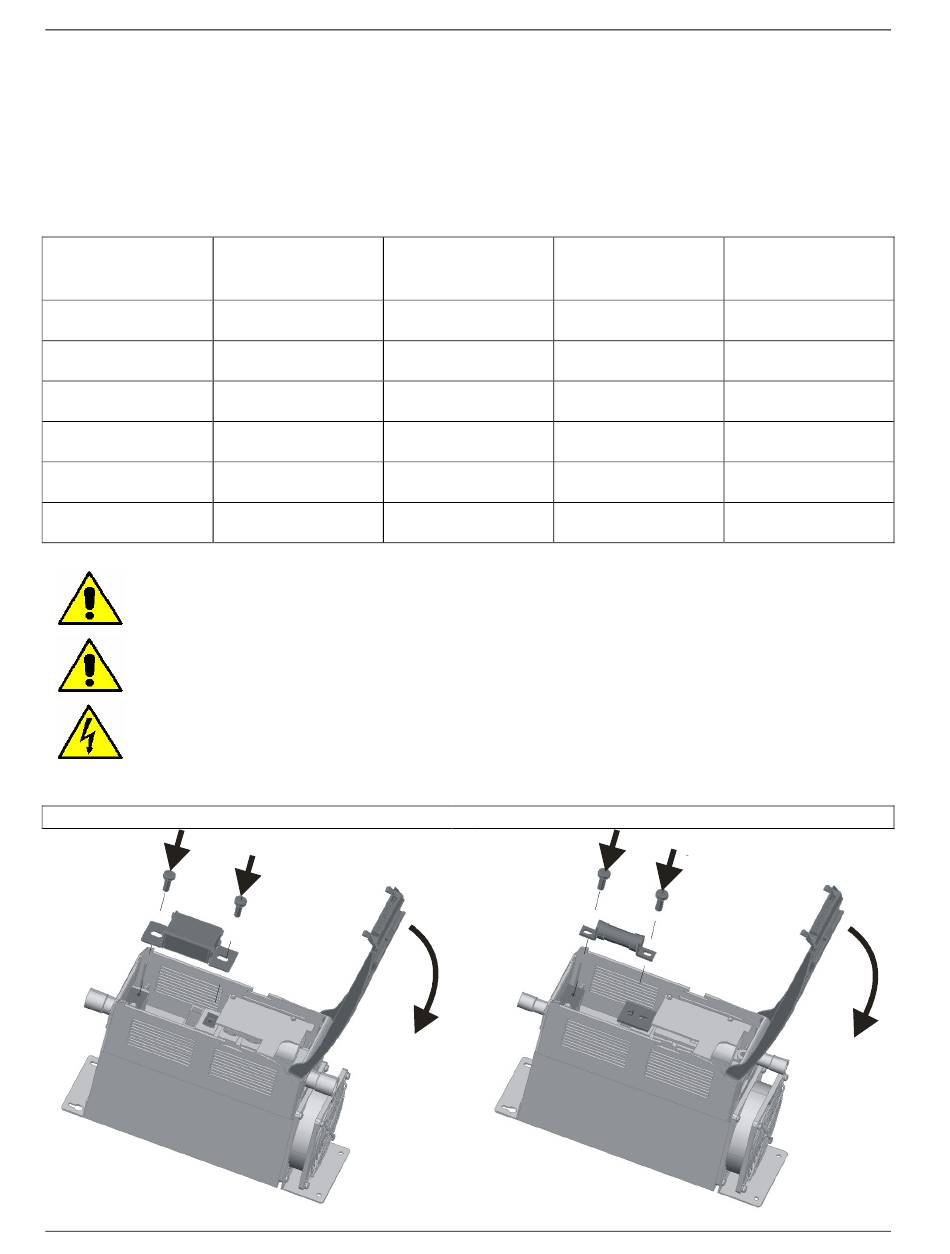

21.1 Fuses Replacement

Open the cover and remove the screws
CD-Eng-REVO-CL-1PH-60-210A-Thyristors-Units
Fuse Code
Spare Part
100FE
FEE200
FEE200
FEE200
URB315
URB315
REVO CL
Current
(ARMS) (A² sec.)
100
200 11400
200 11400
200 11400
315 82000
315 82000
Open the cover and remove the screws
42
User's Manual
I²T
Vac
2800 660
660
660
660
660
660
