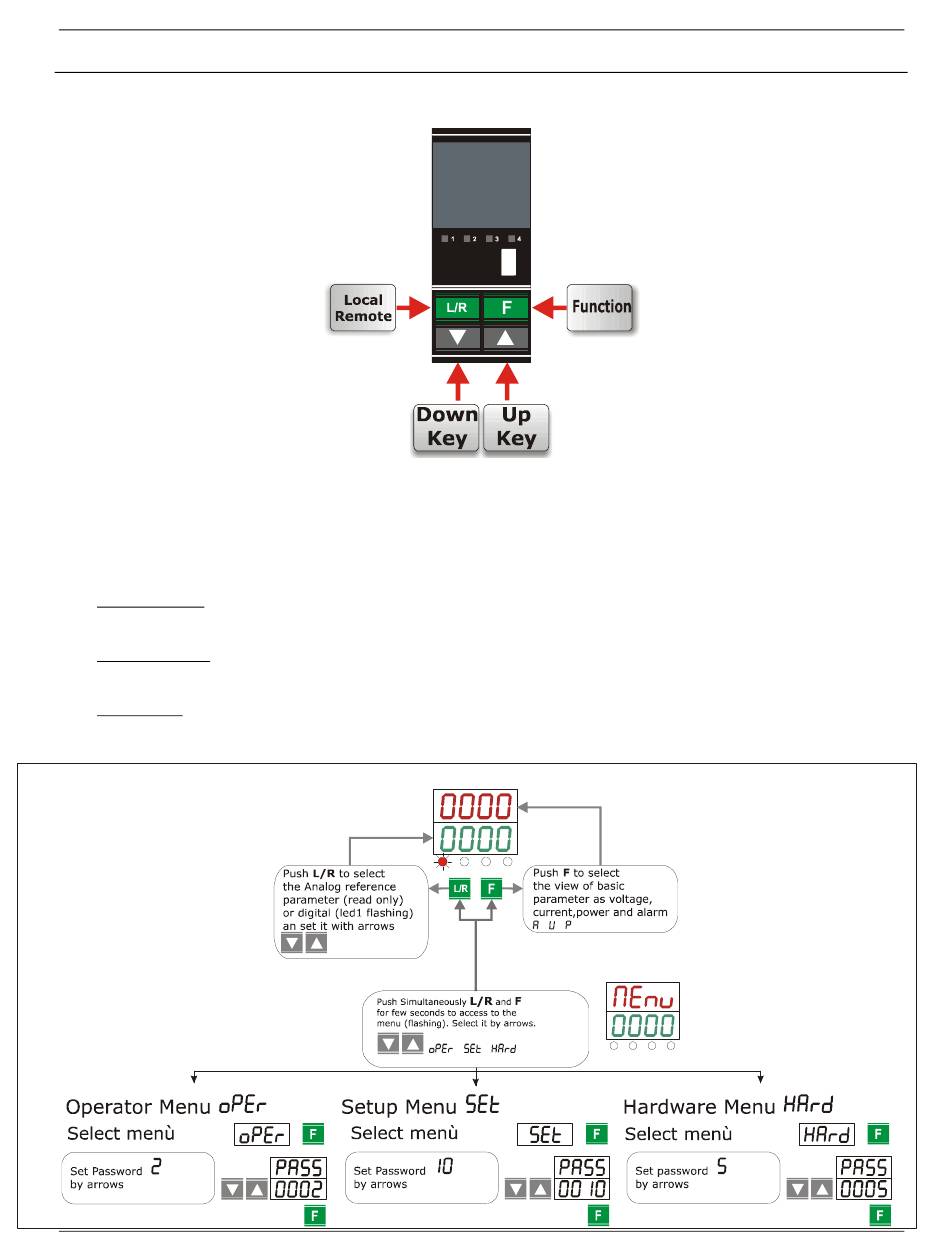

13 Control Panel
The Control Panel is placed on the front of the thyristor unit, on his display you can visualize the alarms, the input
and output signals and all the configuration parameters .
The function keys are the following:
F
The Function key
•
The UP key and DOWN key are used to set the parameters in the menu and to change data.
•
The L/R key is used to edit the parameters and to save the modified values.
•
The F+L/R is used for enter and exit from the menu.
•
The Control Panel have three menu, and to enter in one of them you must set correctly the parameter  :
Operator Menu ( = 2)
•
This menù contains a reading parameters that give information on the state of the unit, it include also the base
parameters for quick start, like the value of current and voltage load and the Set-point data.
Hardware Menu ( = 5)
•
This menu contains all the configuration parameters for analogic and digital I/O, and the parameters to set the
serial port like the address and the baudrate.
Setup Menu ( = 10)
•
This menù contains all the setting parameters to configure the thyristor unit, like the firing type, the current
limit, [ecc].
CD-Eng-REVO-CL-1PH-60-210A-Thyristors-Units
is used to scroll the parameter
