Internal Fuse - CD Automation REVO SX Series User Manual

REVO SX
8

Internal Fuse

The thyristor unit must be protected against short circuit by High speed fuses.
The Fuses must have I²t 20% less than thyristor's I²t.
The warranty of thyristor is null if no proper fuses are used.

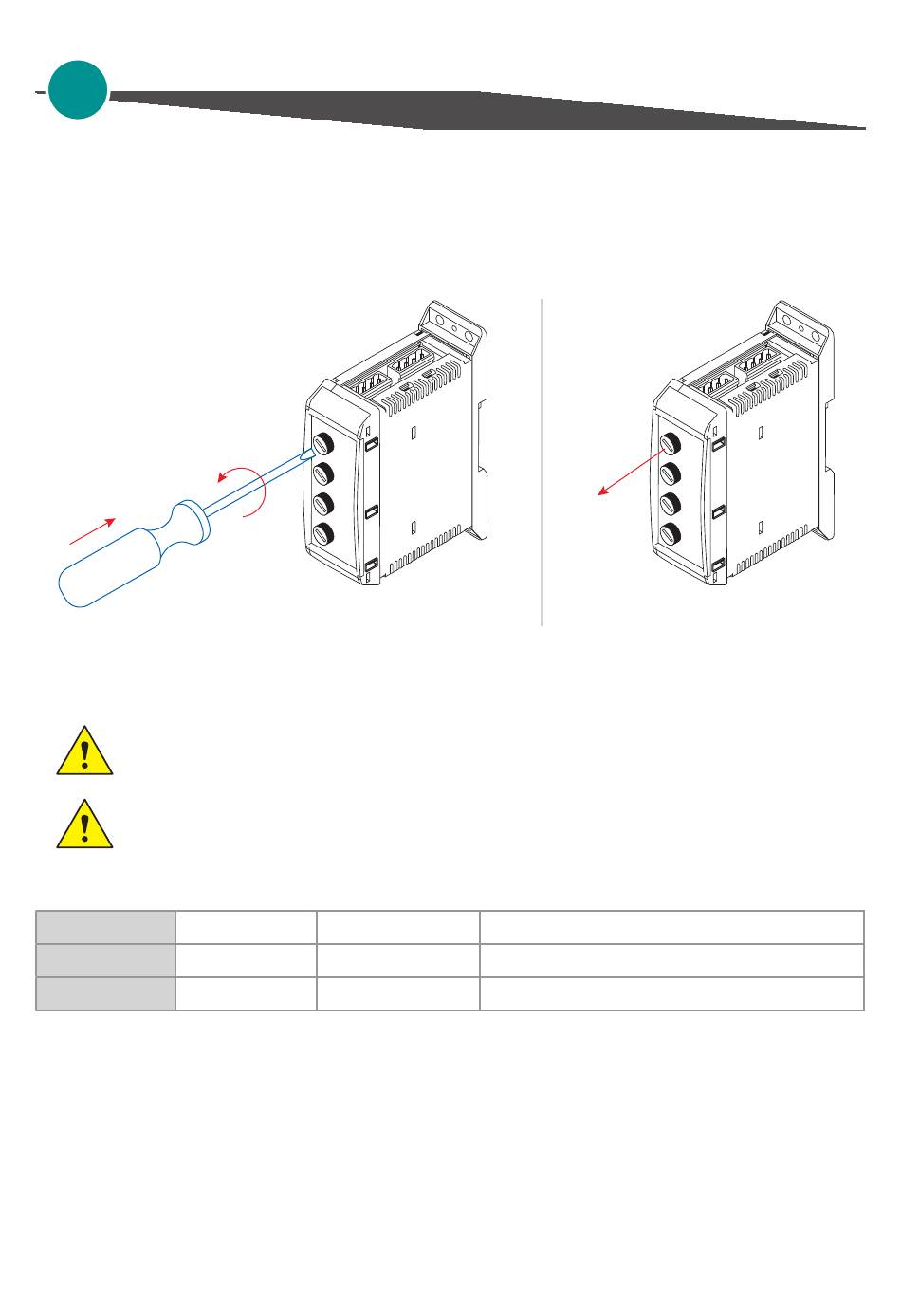

Change the Fuses:
Press, turn in counter-clockwise and release
Caution: High speed fuses are used only for the thyristor protection and can not be used to
protect the installation.
Caution: The warranty of thyristor is null if no proper fuses are used (see table).
Spare Fuse Order Code:
FU5X20-4
REVO 4x3,5A
FU5X20-5
REVO 3x4,5A
REVO 2x7A FU5X20-8
Only one pcs. Type 5x20 4A 250V fast 0324004
Only one pcs. Type 5x20 6A 250V fast 0324005
Only one pcs. Type 5x20 10A 250V fast 0325008
22
User's manual
Extract the fuse
