Danfoss BOCK HGX34e A Operating Manual page 17

Hide thumbs
Table of Contents

Advertisement

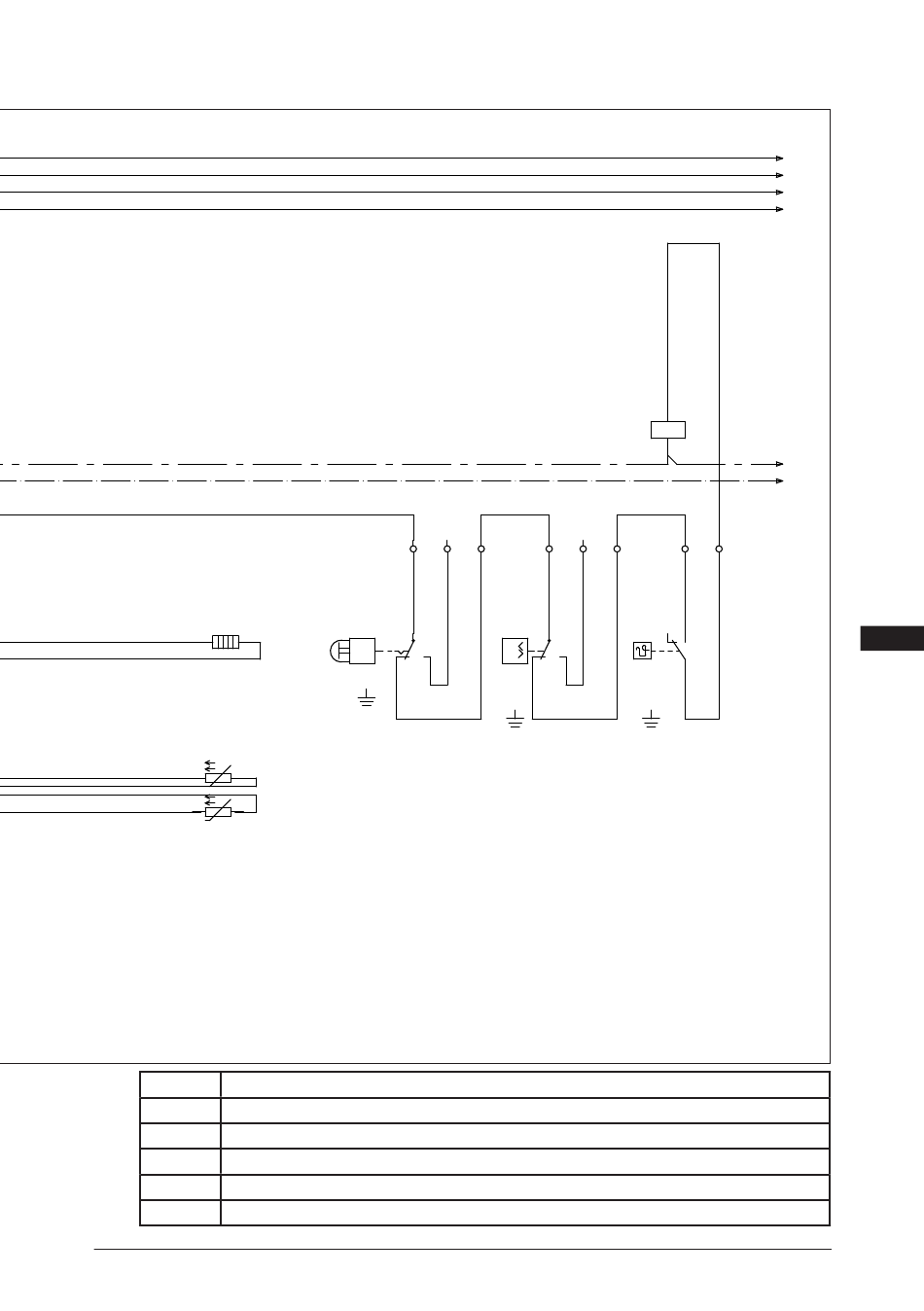

BT2
Θ
BT2
Θ
QA1
Main switch
SF1
Control voltage switch
EC1
Compressor motor
QA2
Compressor contactor
INT69 G
Electronic trigger unit INT69 G
EB1
Oil sump heater
© Danfoss | Climate Solutions | 2024.07
EB1
P>
BP1
QA2
P
BP2
BT3
AQ464037893946en-IN0201 | 17
L1.1
L2.1
L3.1
L1.2
N
PE
D
GB
F
E
