5 | Electrical connection
1

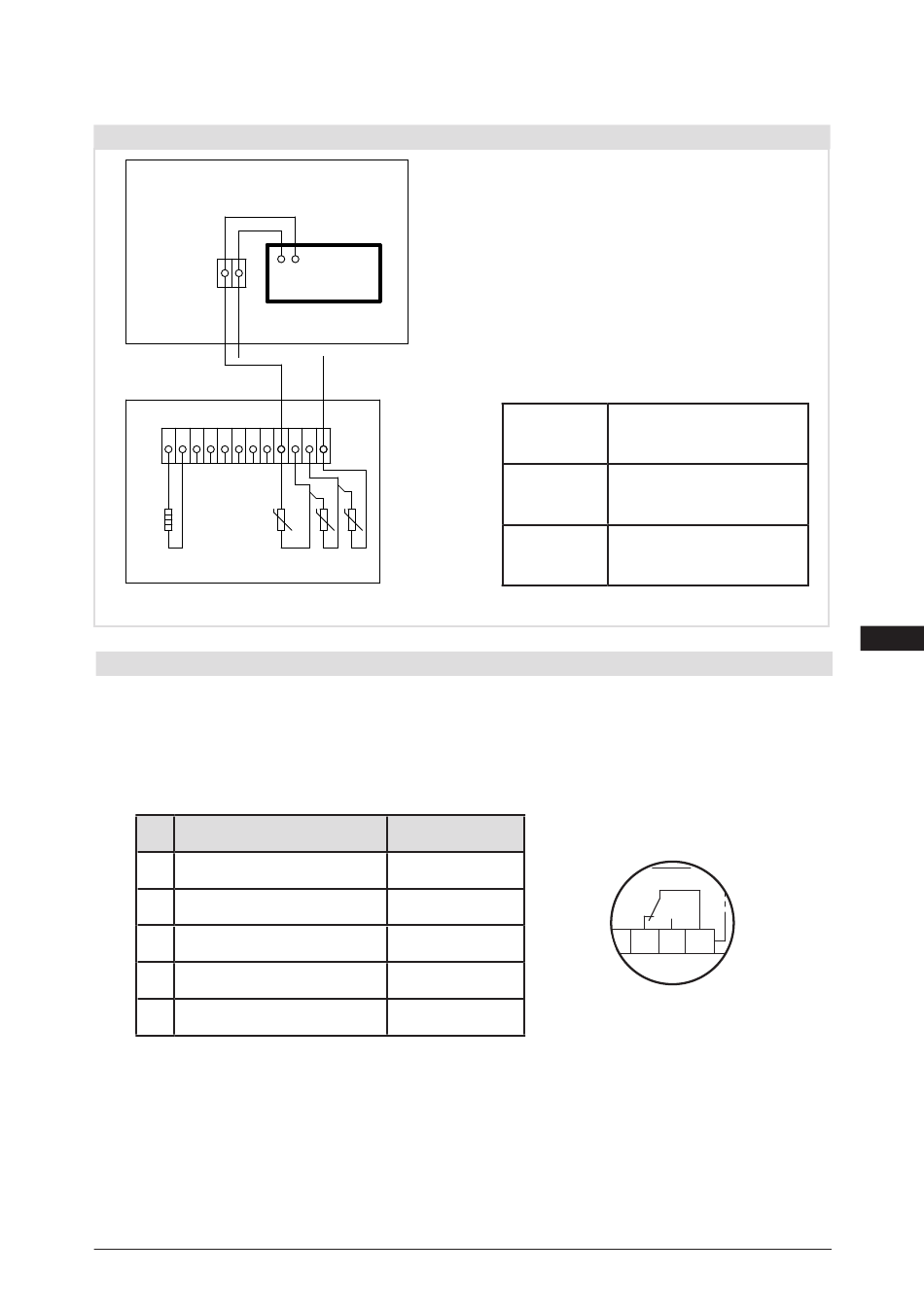

5.6 External connection of the INT69 G

Schaltschrank
Schaltschrank
1
1
EB1
EB1
Fig. 19

5.7 Function test of the trigger unit INT69 G

Before commissioning, after troubleshooting or making changes to the control power circuit, check
the functionality of the trigger unit. Perform this check using a continuity tester or gauge.
1.
2.
3.
Datum 04.12.2009
Bearb. bauknecht
4.
Gepr. 08.05.2020
Datum 04.12.2009
tum Name Norm
Bearb. bauknecht
5.
Gepr. 08.05.2020
tum Name Norm
