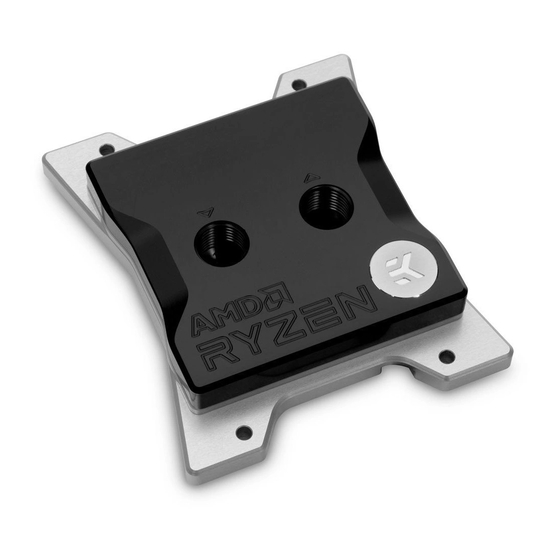

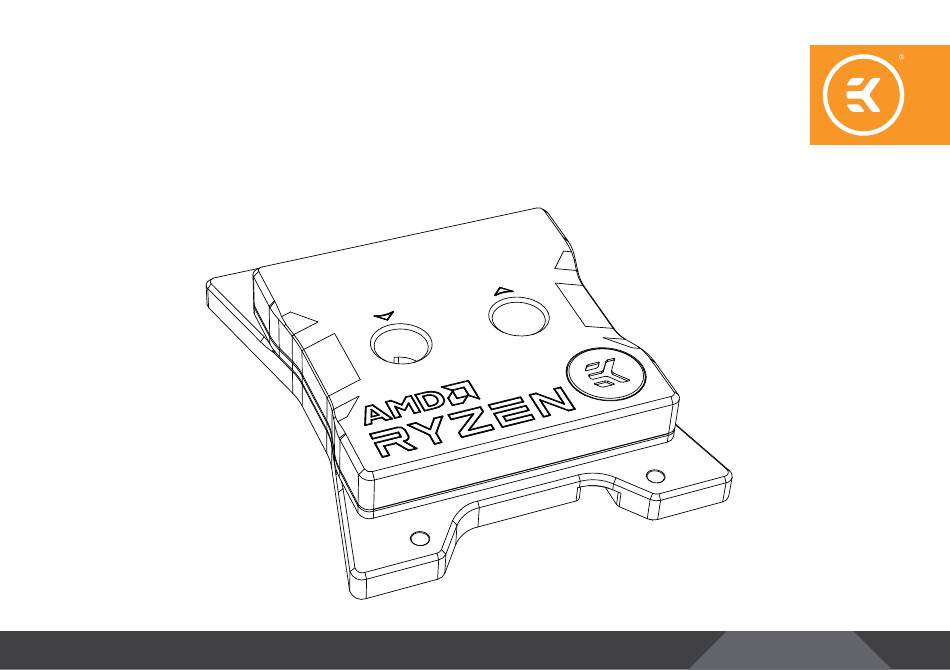

- Page 1 EK-Quantum Velocity D-RGB - AMD Ryzen Edition CPU WATER BLOCK USER GUIDE 1st Revision – November 25, 2020...
- Page 2 GPU or any printed circuit boards (PCB’s). EK-Quantum Torque fittings require only a small amount of force to screw them firmly in place since the liquid seal is ensured by compression of the rubber O-ring gaskets and not the thread itself.
-
Page 3: Table Of Contents
TABLE OF CONTENTS BOX CONTENTS REQUIRED TOOLS GENERAL INFORMATION ON WATER BLOCK COMPATIBILITY WATER BLOCK DIMENSIONS WATER BLOCK SPECIFICATIONS AND MAIN PARTS QUICK INSTALLATION GUIDE INSTALLING THE WATER BLOCK AMX AND FMX SOCKET MOTHERBOARDS CONNECTING THE D-RGB LED STRIP REPLACING THE D-RGB LEDs SUPPORT AND SERVICE SOCIAL MEDIA - 3 -... -
Page 4: Box Contents
BOX CONTENTS EK-Quantum Velocity D-RGB - AMD Ryzen Edition - CPU Water Block (1) Metal Backplate (1) Rubber Gasket (1) Allen Key 2.5mm (1) M4 x 0.8 PA Washer (4) Thumb Nut (4) Standoff (4) Spring (4) Thermal Grease (1) -
Page 5: Required Tools
REQUIRED TOOLS Phillips Head Screwdriver GENERAL INFORMATION ON WATER BLOCK COMPATIBILITY This CPU liquid cooling unit is pre-assembled for use with modern AMD desktop socket type motherboards. By default (out of the box) this water block supports the following CPU sockets: - AMD®... -
Page 6: Water Block Dimensions
WATER BLOCK DIMENSIONS - 6 -... -
Page 7: Water Block Specifications And Main Parts
WATER BLOCK SPECIFICATIONS AND MAIN PARTS Technical Specifications: - Dimensions (LxHxW): 102 x 87 x 24 mm - D-RGB (Adressable RGB) Cable Length: 300 mm EK-BADGE - D-RGB LED Count: 20 - D-RGB Connector: Standard 3-Pin (+5V, Data, Blocked, Ground) TOP PLATE JET PLATE SEALING GASKET... -
Page 8: Installing The Water Block
INSTALLING THE WATER BLOCK AMx AND FMx SOCKET MOTHERBOARDS UNC 6-32 AMD® FACTORY SCREWS BACKPLATE STEP 1 HOLD-DOWN Use a Philips head screwdriver to remove four (4) UNC 6-32 screws CLAMPS securing the plastic hold-down clamps to the motherboard. Remove the clamps and the original motherboard backplate, and store them away. - Page 9 STEP 3 Loosely install all four standoffs and plastic washers before STANDOFF proceeding to tighten them completely. It is mandatory to install plastic washers as they prevent damage to the motherboard PCB. Using pliers or similar tools is not recommended. PA WASHER STEP 3 STEP 4...
- Page 10 STEP 5 THUMB NUT Remove the protective sticker and position the CPU water block onto the standoffs. Place the springs and thumb nuts over each standoff before COILED SPRING tightening them two revolutions at once, in a cross pattern. Do not tighten them fully until all of them are partially screwed in.
-
Page 11: Connecting The D-Rgb Led Strip
CONNECTING THE D-RGB LED STRIP STEP 1 Plug the 3-pin D-RGB connector from your CPU water block to the D-RGB header on your motherboard or controller. The LED strip will work only if the pin layout on the header is as follows: +5V, Data, Empty, Ground. -
Page 12: Support And Service
SUPPORT AND SERVICE In case you need assistance, please contact: https://www.ekwb.com/customer-support/ EKWB d.o.o. Pod lipami 18 1218 Komenda Slovenia - EU SOCIAL MEDIA EKWaterBlocks @EKWaterBlocks ekwaterblocks EKWBofficial ekwaterblocks...
