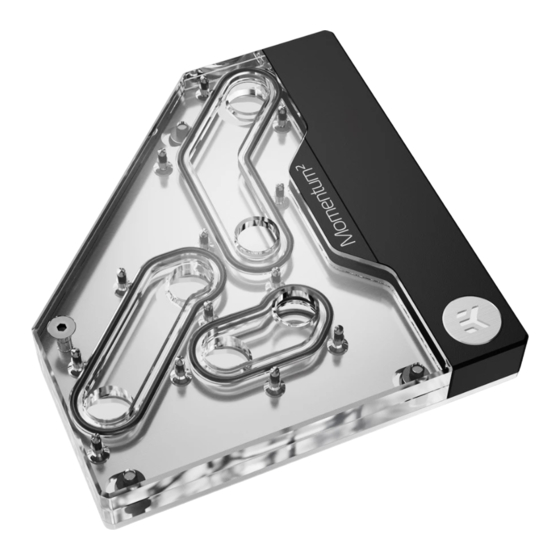

EK-Quantum Momentum2 VRM Bridge ROG Maximus Z790 Formula D-RGB - White User Manual

EK-Quantum Momentum2 VRM Bridge ROG Maximus Z790 Formula D-RGB - White User Manual

Monoblock
Hide thumbs Also See for Momentum2 VRM Bridge ROG Maximus Z790 Formula D-RGB - White:

Advertisement

Quick Links

EK-Quantum
Momentum
VRM Bridge ROG Maximus Z790 Formula D-RGB - White
2
MONOBLOCK
USER GUIDE

Advertisement

loading
Need help?

Need help?

Do you have a question about the Momentum2 VRM Bridge ROG Maximus Z790 Formula D-RGB - White and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for EK-Quantum Momentum2 VRM Bridge ROG Maximus Z790 Formula D-RGB - White

  • Page 1 EK-Quantum Momentum VRM Bridge ROG Maximus Z790 Formula D-RGB - White MONOBLOCK USER GUIDE...
  • Page 2 This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability whatsoever, expressed or implied, for the use of these products, nor their installation.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS BOX CONTENTS WATER BLOCK DIMENSIONS WATER BLOCK SPECIFICATIONS AND MAIN PARTS INSTALLING AND ATTACHING THE WATER BLOCK SUPPORT AND SERVICE SOCIAL MEDIA - 3 -...
  • Page 4: Box Contents

    BOX CONTENTS Mounting Mechanism Extender M12F (2 pcs) VRM Bridge Extender (2 pcs) EK-Quantum Momentum VRM Bridge ROG Maximus Z790 Formula D-RGB - White Allen Key 2.5 mm (1 pc) Grease (1 pc) EK-Loop Multi Allen Key (1 pc) - 4 -...
  • Page 5: Water Block Dimensions

    WATER BLOCK DIMENSIONS 18.1 mm 71.5 mm 128 mm - 5 -...
  • Page 6: Water Block Specifications And Main Parts

    WATER BLOCK SPECIFICATIONS AND MAIN PARTS Technical Specification: - Dimensions: (LxHxW) - 128 x 135 x 18.1mm - D-RGB cable length: 500mm - D-RGB LED count: 19 - D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground) Position Description Quantity 105115 Metal plate 107197 Acetal Standout (White)
  • Page 7: Installing And Attaching The Water Block

    INSTALLING AND ATTACHING THE WATER BLOCK STEP 1 Install your EK-Quantum Velocity 1700 water block in the illustrated EXTENDER orientation and place the motherboard on a secure flat surface. Using M12F the enclosed EK-Loop Multi Key, install two (2) Extenders M12F and two (2) torque push-in fixation fittings to the pre-installed VRM block and CPU block (as shown in the image).
  • Page 8 STEP 3 Slide the Plexi away from the black acetal stand-out with stainless PLEXI PLATE steel fixation plate until it stops (approximately at 3 mm) STANDOUT 3 mm GAP (BLACK ACETAL) STEP 3 STEP 4 Before attempting to mount the water block, apply a small amount of the supplied grease to each of the four (4) O-Rings on the fixation fittings.
  • Page 9 PLEXI PLATE For this step, you will need: Allen Key 2.5mm STEP 5 STEP 6 With the EK-Quantum Momentum VRM Bridge ROG Maximus Z790 Formula D-RGB - White water block, it is mandatory to use INLET OUTLET the bottom port as the INLET. Mixing the ports may result in poor thermal performance of the water block.
  • Page 10 STEP 7 Plug the 3-pin D-RGB connector from the bridge block in a D-RGB header on your motherboard or controller. The LED strip will only work if the pin layout on the header is as follows: +5V, Digital, Empty, Ground. Incorrect installation or installation of the incorrect header could result in damage to the LED strip or the header itself.
  • Page 11: Support And Service

    SUPPORT AND SERVICE In case you need assistance or wish to order spare parts or a new mounting mechanism, please contact: https://www.ekwb.com/customer-support/ For spare parts orders, refer to the page with “TECHNICAL SPECIFICATIONS AND WATER BLOCK PARTS” where you can find the EAN number of each part you might need.
