INSTALLING THE DISTRIBUTION PLATE IN THE 011D

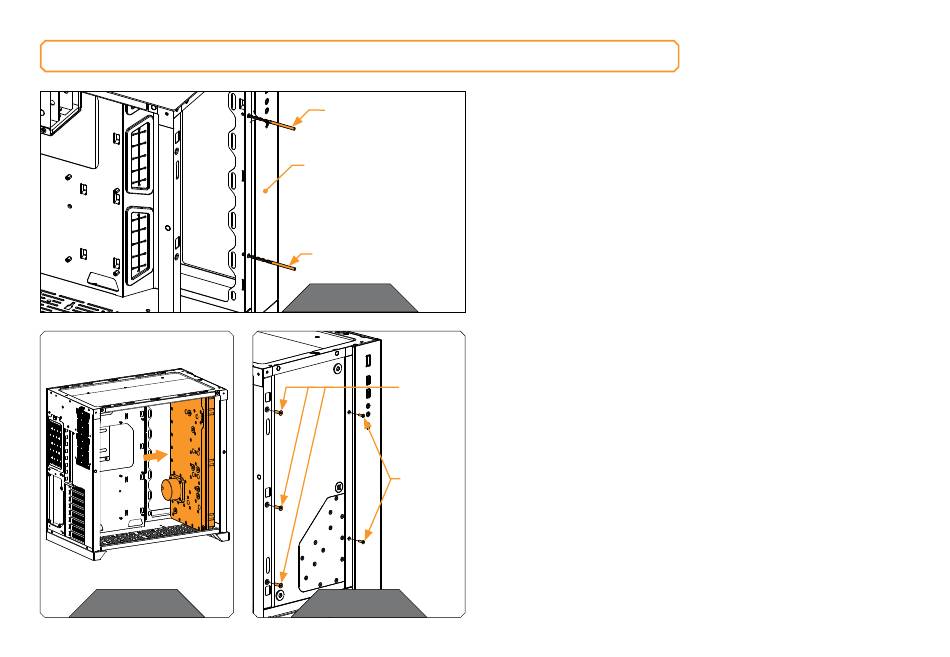

STEP 1
OPTIONAL STEP
DRILL BIT (3.5mm)
Before installing any components, drill out the original rivets using a
3.5mm drill bit.
PC CASE
DRILL BIT (3.5mm)
OPTIONAL
STEP 1
Carefully place the EK-Quantum Reflection PC-O11D D5 PWM D-RGB
distribution plate into the PC case and align the mounting holes.
M4 x 14
DIN7991
STEP 2
M3 x 11 Secure the distribution plate to the chassis with three (3) M4 x
DIN7991 14 DIN7991 and two (2) M3 x 11 DIN7991 screws (as shown in
the diagram).
STEP 2
