Wren INFINITY DEEP DRAWER Manual page 2

7 ¹⁵⁄₁₆"
6 ⅝"
FRONTALS
4 ½"
INFINITY Drawer Guide
2 ⅞"
2 ¹³⁄₁₆"
INFINITY DEEP DRAWER
1 ½"
191
99
67
Drawer Side
Fixing Clip

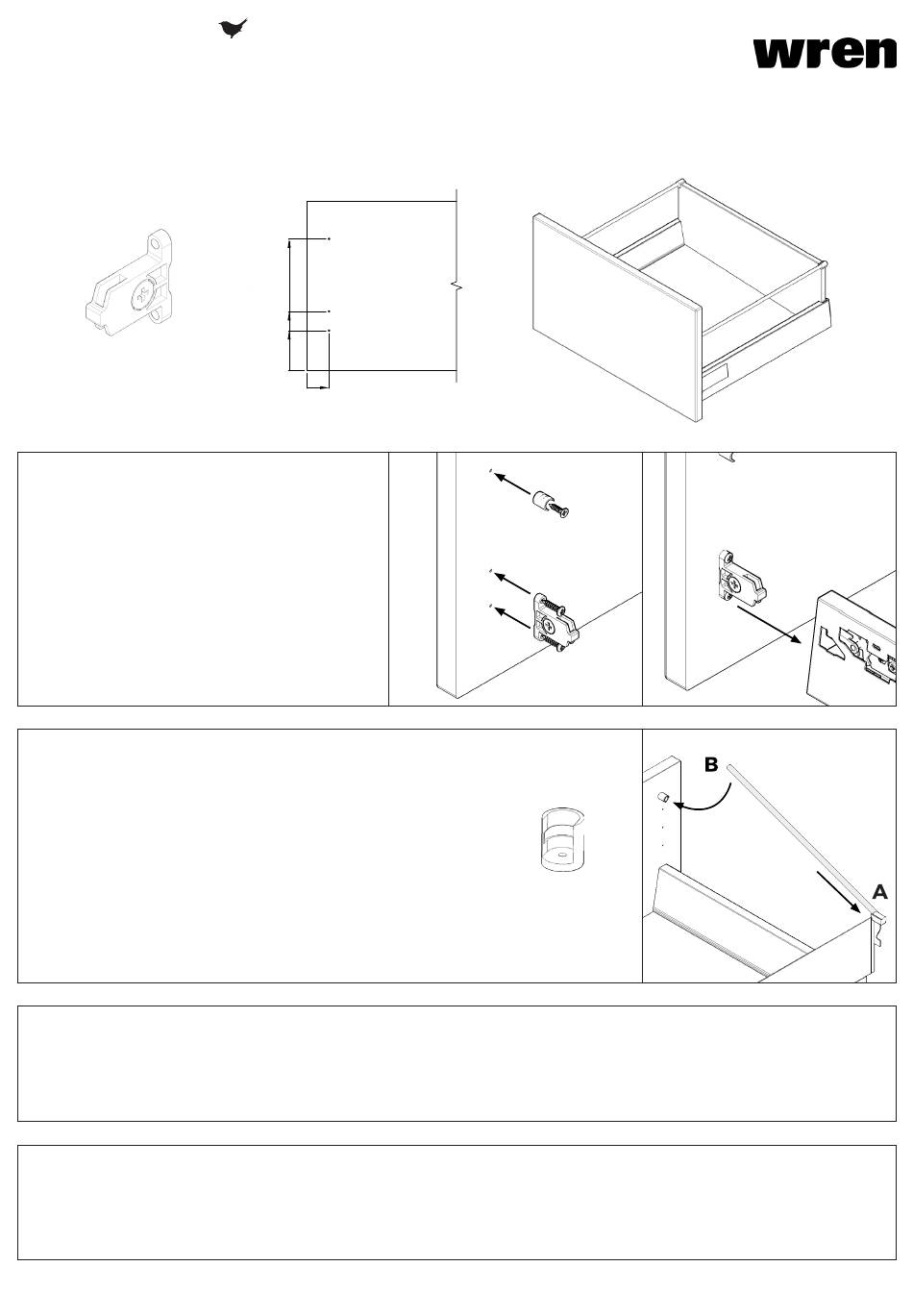

Step 1.
Secure gallery rail head fixings using
1 x 9/16" screw in the top pilot hole and
secure drawer side fixing clips using
2 x 13/16" screws in the bottom 2 pilot
holes provided as shown on both sides.
Step 2.
Push fit drawer side fixing clips onto drawer
side.
Step 3.
A. Clip gallery rail into the top corners of the metal back panel.
B. Locate front end of the gallery rail into the opening of the
gallery head fixing clip, which is secured to the frontal as
shown.
Step 4.
Drawer frontal adjustment and removal - See page 3 for details.
Step 5.
Fit drawer cover caps over drawer side adjustment. See page 4 for more details.
For Internal Use: _CON.INS.014.001_INFINITY_DRAWER_GUIDE_Rev2
Gallery
9 ³⁄₁₆"
Rail Head
4"
Fixing Clip
2 ¾"
Deep Drawer
1 ½"
176
131
99
67
Gallery Rail
Head
195
131
99
67
Page 2 Page 2
