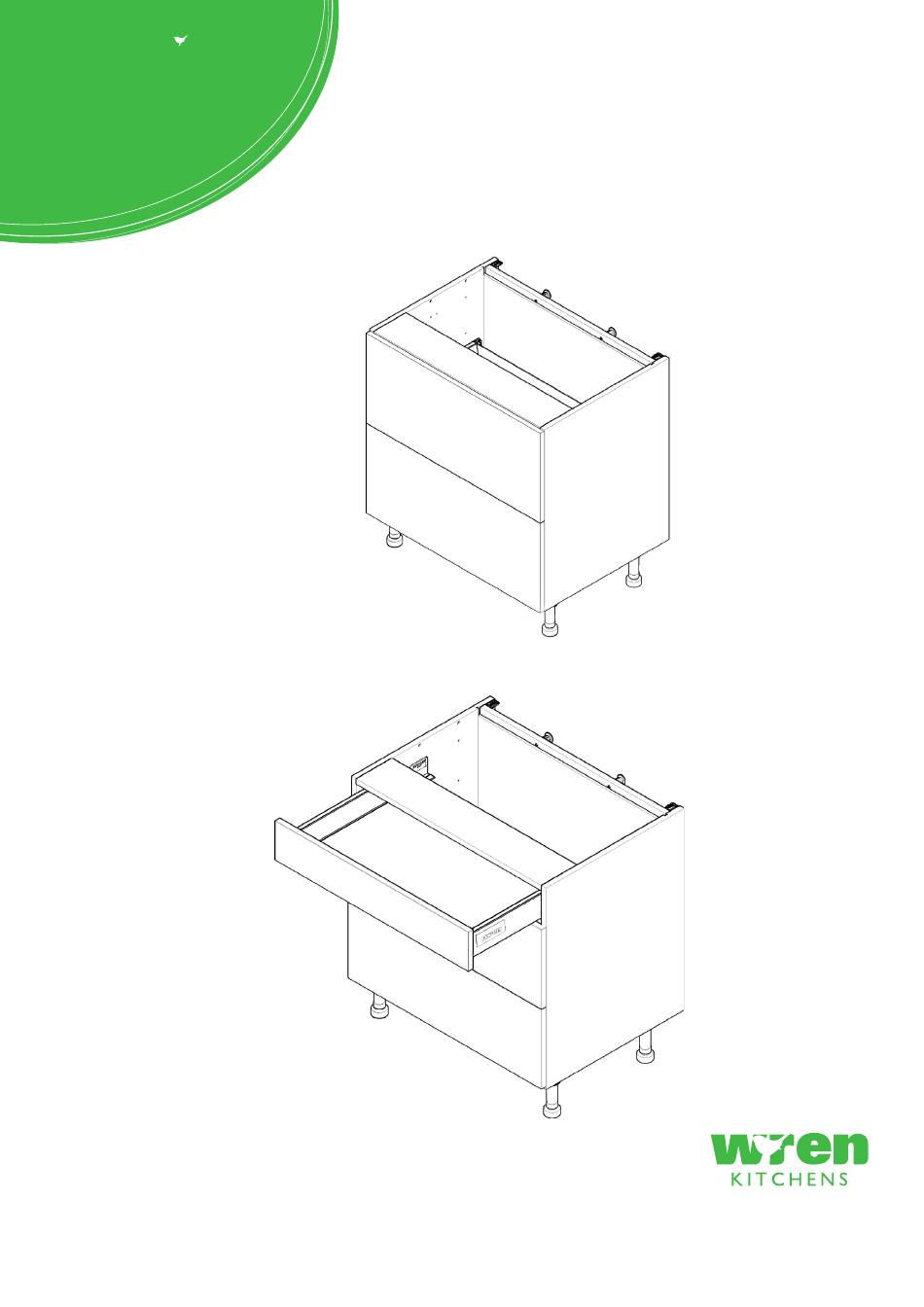

- Page 1 BASE UNIT 800 2/3 Drawer Assembly Guide 2 Drawer 3 Drawer For Internal Use: FI.WR.INS.026_WKIN00108_BASE_800_2_3Drawer_Rev3.indd...
- Page 2 BASE UNIT BASE UNIT BEFORE YOU START 800 2/3 Drawer 800 2/3 Drawer INSTALLATION SHOULD BE PERFORMED BY A Carcass Assembly Drawer Assembly COMPETENT PERSON ONLY. THIS PRODUCT COULD BE DANGEROUS IF INCORRECTLY INSTALLED Standard Drawer (Packed Separately) Fitting Pack Contents Metal Back Panel (J) x16 (N) x1...
- Page 3 BASE UNIT BASE UNIT Step 1. Secure drawer base to drawer side using 4 x 16mm 800 2/3 Drawer 800 2/3 Drawer drawer runner screws (J) in holes provided. Drawer base Carcass Assembly Standard Drawer Seat the edge of drawer base tight Assembly into corner of casing, as shown.
- Page 4 BASE UNIT Step 1. BASE UNIT Secure drawer base to drawer side using 4 x 16mm 800 2/3 Drawer 800 2/3 Drawer drawer runner screws (J) in holes provided. Drawer base Carcass Assembly Deep Drawer Seat the edge of drawerbase tight into corner ofcasing, as shown.
- Page 5 BASE UNIT BEFORE YOU START 800 2/3 Drawer INSTALLATION Carcass Assembly SHOULD BE PERFORMED BY A COMPETENT PERSON ONLY. THIS PRODUCT COULD BE DANGEROUS IF INCORRECTLY INSTALLED Panel A Panel B Panel E Panel C x1 Back Panel x2 End Panel x2 Rail Panel x1 Base Panel (F) x12...
- Page 6 BASE UNIT Drawer runner bracket screw position 800 2/3 Drawer Carcass Assembly 37mm 261mm 431mm 2 drawer 74mm Step 1. from base To attach drawer runner screw into end panels (B) 646mm using 2 x 16mm screws (J) per drawer rail, into pilot holes provided, 3rd hole from front, as shown.
- Page 7 BASE UNIT 800 2/3 Drawer Step 2. Seat dowel (F) into holes in Carcass Assembly panels as shown. Seat (G) cam dowel into hole as shown Step 3. Seat cam dowel (G) into holes in panels as shown. Dowel (F) &...
- Page 8 BASE UNIT 800 2/3 Drawer Carcass Assembly Step 6. Slide back panel (A) into groove of end panels (B). Once back panel (A) is in position, ensure the panel is flush & square with bottom of end panels (B). Step 7. Hand tighten all cam locks (H), this will expand cam dowels (G) and tighten the unit together.
- Page 9 BASE UNIT 800 2/3 Drawer Front Carcass Assembly Step 9. Secure each of the legs into place with 2 x 15mmscrews (L) per leg Ensure legs are rotated as shown so that part of it is supporting the end panels (B). Front legs should have flat edge to the front.
- Page 10 BASE UNIT Secure unit to wall using space plug. 800 2/3 Drawer Drill pilot hole through the back brace into the wall and insert Carcass Assembly wall plug. Then unwind space plug until it contacts both surfaces. Finally, tighten the screw. Screws for attaching to walls are not provided as these vary depending on your wall material and...
