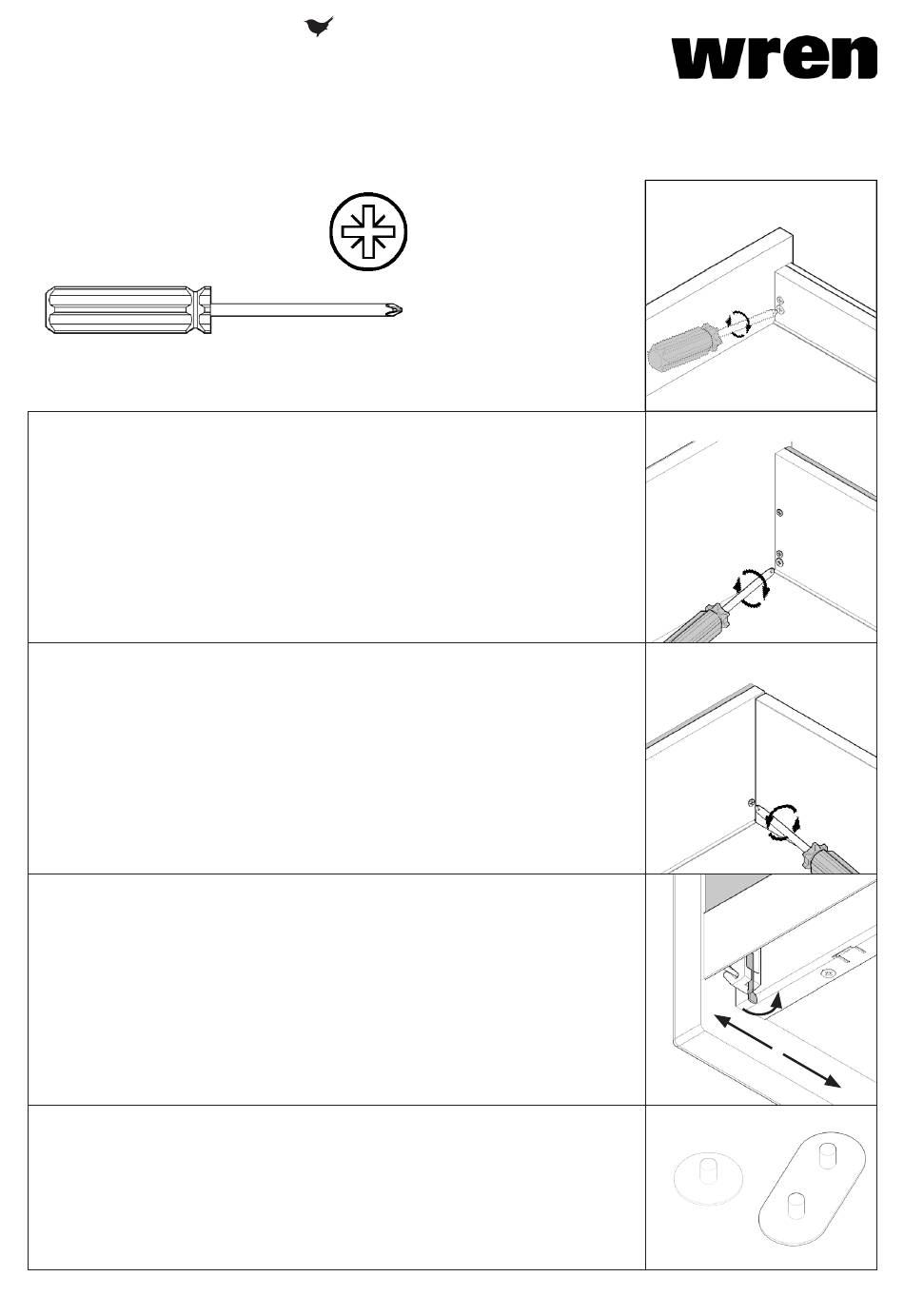

DRAWER BOX
ADJUSTMENT & REMOVAL
INFINITY PLUS
Tools required:
Cross head screwdriver
Up & Down Adjustment.
Standard Drawer
Loosen top screw and turn the bottom screw to adjust drawer frontal height,
once in desired position re-tighten the top screw.
Deep Drawer
Loosen top two screws and turn the bottom screw to adjust frontal height,
once in desired position re-tighten the top screws.
Rear Elevation Adjustment.
Deep Drawer Specific
Turn the screw at the back of the drawer to adjust rear elevation of the drawer.
Left & Right Adjustment.
Press in the fixing clips half way, located at the bottom of the frontal on both
sides of the drawer. Adjust the position of the drawer frontal, left or right.
Release the frontal fixing clips on both sides of the drawer to secure the
frontal in the new position.
Fit Cover Caps.
Fit drawer cover caps over drawer side adjustment screws.
For Internal Use: FI.WR.INS.136_WBIN00032_InfinityPlus_DrawerBox_Rev1
Standard Drawer
inside view
Deep Drawer inside view
Drawer
frontal
Drawer
side
Drawer
Drawer
side
back
Drawer
underside view
Cover caps
Page 1
