FRONTALS

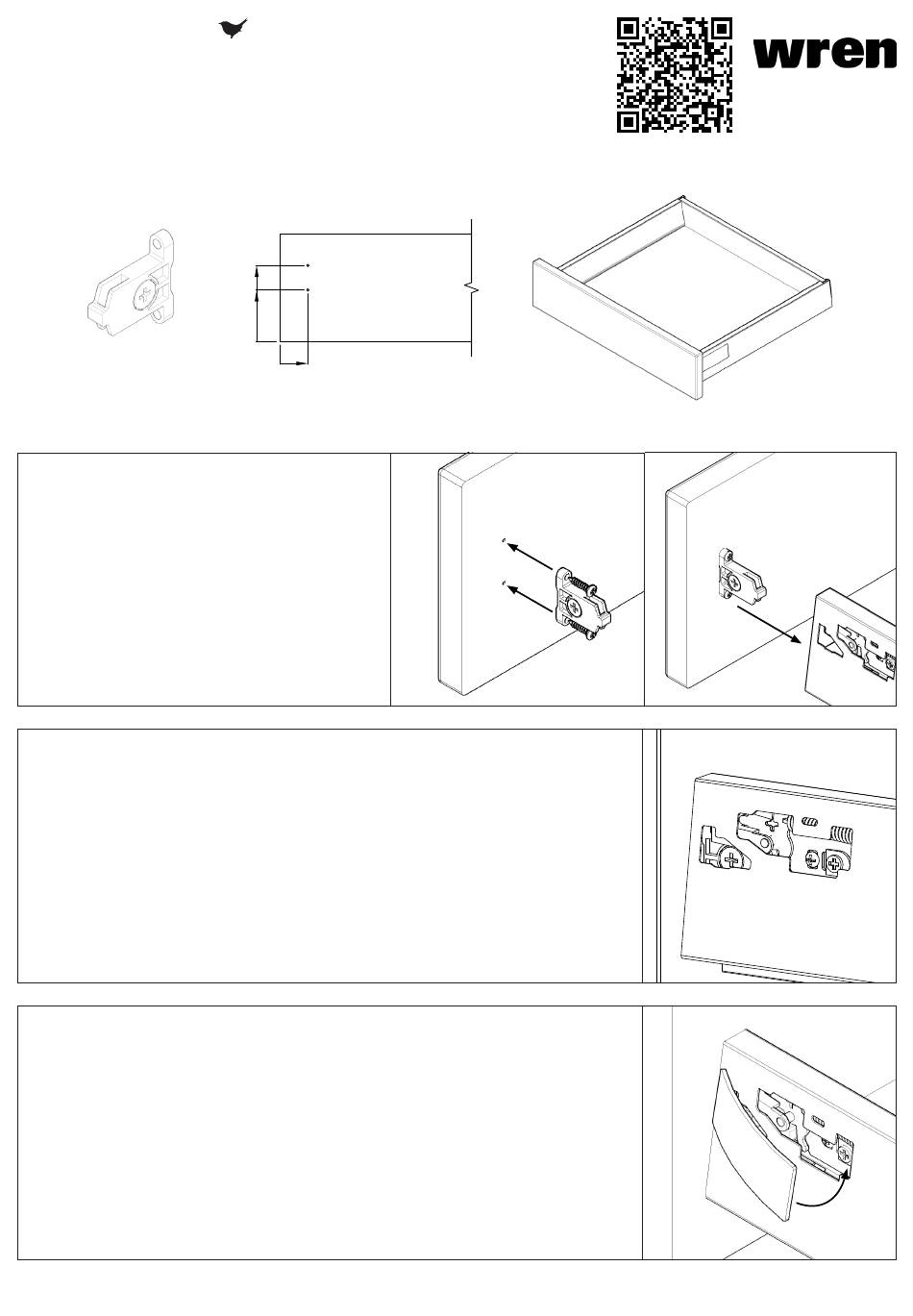

INFINITY Drawer Guide
INFINITY STANDARD DRAWER
Drawer Side
Fixing Clip
Step 1.
Secure drawer side fixing clips using
2 x 13/16" screws in pilot holes provided as
shown on both sides.
Step 2.
Push fit drawer side fixing clips onto drawer
side.
Step 3.
Drawer frontal adjustment and removal - See page 3 for details.
Step 4.
Fit drawer cover caps over drawer side adjustment. See page 4 for more details.
For Internal Use: _CON.INS.014.001_INFINITY_DRAWER_GUIDE_Rev2
2 ⅞"
2 ¹³⁄₁₆"
1 ½"
4"
Fixing Clip
2 ¾"

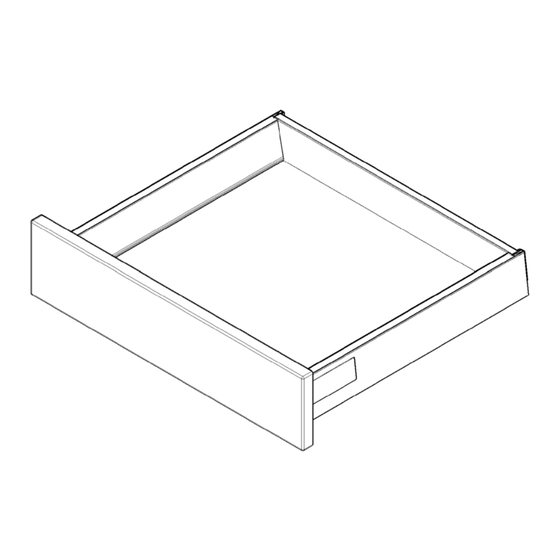

Standard Drawer
1 ½"
2 ⅞"
2 ¹³⁄₁₆"
1 ½"
Escanear para español
191
99
67
9 ³⁄₁₆"
4"
2 ¾"
1 ½"
Page 1
Page 1
Advertisement
Related Manuals for Wren INFINITY DEEP DRAWER
Summary of Contents for Wren INFINITY DEEP DRAWER
- Page 1 2 ⅞“ 2 ⅞“ 2 ¹³⁄₁₆“ 2 ¹³⁄₁₆“ FRONTALS 1 ½“ 1 ½“ INFINITY Drawer Guide INFINITY STANDARD DRAWER Escanear para español 9 ³⁄₁₆“ 4“ 4“ Fixing Clip 2 ¾“ 2 ¾“ Drawer Side Standard Drawer Fixing Clip 1 ½“ 1 ½“...
- Page 2 7 ¹⁵⁄₁₆“ 6 ⅝“ FRONTALS 4 ½“ INFINITY Drawer Guide 2 ⅞“ 2 ¹³⁄₁₆“ INFINITY DEEP DRAWER 1 ½“ Gallery 9 ³⁄₁₆“ Rail Head 4“ Fixing Clip 2 ¾“ Drawer Side Fixing Clip Deep Drawer 1 ½“ Step 1. Secure gallery rail head fixings using 1 x 9/16”...
- Page 3 FRONTALS INFINITY Drawer Guide INFINITY DRAWER ADJUSTMENT Left and Right Adjustment Turn the screw shown to adjust the drawer frontal left & right. Repeat on both sides. Up & Down Adjustment Turn the screw shown to adjust the drawer frontal up & down. Repeat on both sides.
- Page 4 FRONTALS INFINITY Drawer Guide INFINITY DRAWER SIDE COVER CAPS Step 1 Fit drawer cover caps over drawer side adjustment. Position the edge closest to the frontal first. Drawer cover cap Step 2 Position the far side edge into place. Step 3 Press the cover cap against the drawer side to secure it in place.
