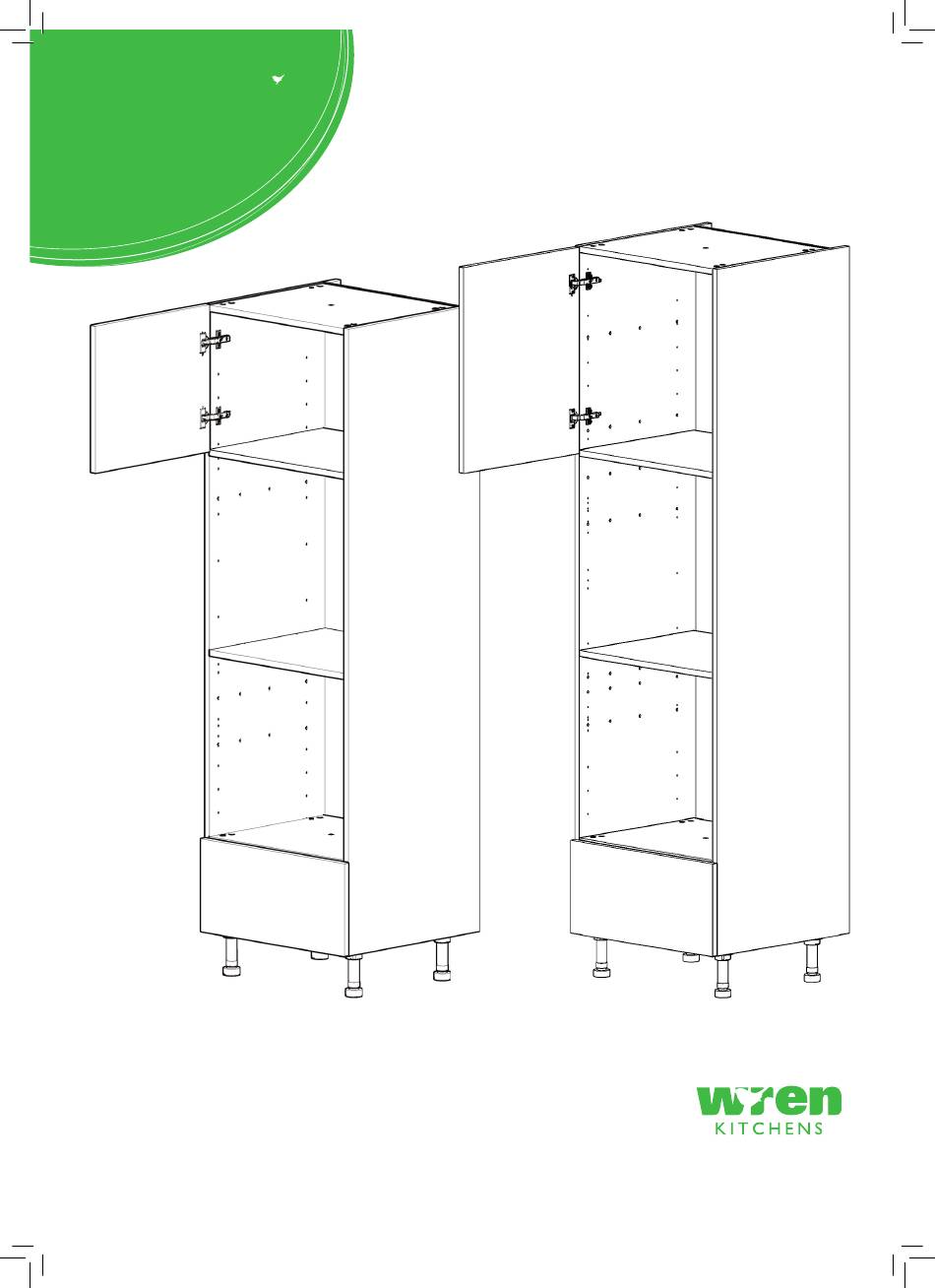

- Page 1 TOWER UNIT 600 Double Appliances Inc Dr+Drw Assembly Guide 2070 x 600 2250 x 600 Tall 600 + 450 Appliance 600 + 450 Appliance For Internal Use: FI.WR.INS.043_WKIN00143_TOWER_600_2AppIncDr+Drw_Rev3.indd...
- Page 2 TOWER UNIT 600 Double Appliances BEFORE YOU START Inc Dr+Drw INSTALLATION Drawer Assembly SHOULD BE PERFORMED BY A COMPETENT PERSON ONLY. THIS PRODUCT COULD BE DANGEROUS IF INCORRECTLY INSTALLED Deep Drawer (Packed Separately) Fitting Pack Contents METAL BACK PANEL (Y) x2...
- Page 3 TOWER UNIT Step 1. Secure drawer base to drawer side using 4 x 16mm drawer 600 Double Appliances runner screws (J) in holes provided. Inc Dr+Drw Seat the edge of drawer base tight into corner of casing, as Assembly Guide shown.
- Page 4 TOWER UNIT BEFORE YOU START 600 Double Appliances Inc Dr+Drw INSTALLATION Assembly Guide SHOULD BE PERFORMED BY A COMPETENT PERSON ONLY. THIS PRODUCT COULD BE DANGEROUS IF INCORRECTLY INSTALLED Panel A Panel B Panel C Panel E Appliance Shelf Legs...
- Page 5 TOWER UNIT 600 Double Appliances Inc Dr+Drw Assembly Guide 2070 Drawer runner position Step 1. Hinge Mounting Plate Attach hinge plates onto end panels (B) in locations shown using 4x 15mm screws (L). Hinge side to be mounted in accordance to customer kitchen plan.
- Page 6 TOWER UNIT Step 1. 600 Double Appliances To attach drawer runner screw into end panels (B) using Inc Dr+Drw 2 x 16mm screws (J) per drawer rail, into pilot holes provided,3rd hole from Assembly Guide front, as shown. 2250 Tall Drawer runner position Step 2.
- Page 7 TOWER UNIT 600 Double Appliances Inc Dr+Drw Assembly Guide Step 3. Seat dowel (F) into holes in both end panels (B) as shown. Step 4. Seat (G) cam dowel Seat cam dowel (G) into into hole holes in both end panels (B) as shown as shown.
- Page 8 TOWER UNIT Step 7. Cut back panel (A) 600 Double Appliances to suit appliance Inc Dr+Drw option, to leaving the Assembly Guide centre appliance aperture open. Step 8. Slide back panel (A) into groove of end panels (B). Once back panel (A) is in position, ensure the panel is flush &...
- Page 9 TOWER UNIT Step 11. 600 Double Appliances Secure each of the legs into place with 2 x 15mm screws (L) per leg Inc Dr+Drw Assembly Guide Leg position diagram Front Ensure legs are rotated as shown so that part of it is supporting the end panels (B).
- Page 10 TOWER UNIT 600 Double Appliances Inc Dr+Drw Assembly Guide Securing to Adjacent Units Screw into any side units using the 30mm screws (K) provided to secure to unit. Screw just to the rear of the Hinge Mounting Plate, at the top and bottom of both sides of the unit, place a cover cap on the head to conceal it.
- Page 11 TOWER UNIT FOR TOWER FRONTALS 600 Double Appliances SEE CUSTOMER SPECIFIC KITCHEN PLAN Inc Dr+Drw Assembly Guide Step 14. Insert hinge in top & bottom Hinges holes as shown. Hinges Step 15. Secure hinges by tightening 2 x screws with hinge dowels attached.
