Wren INFINITY PLUS Manual

FRONTALS

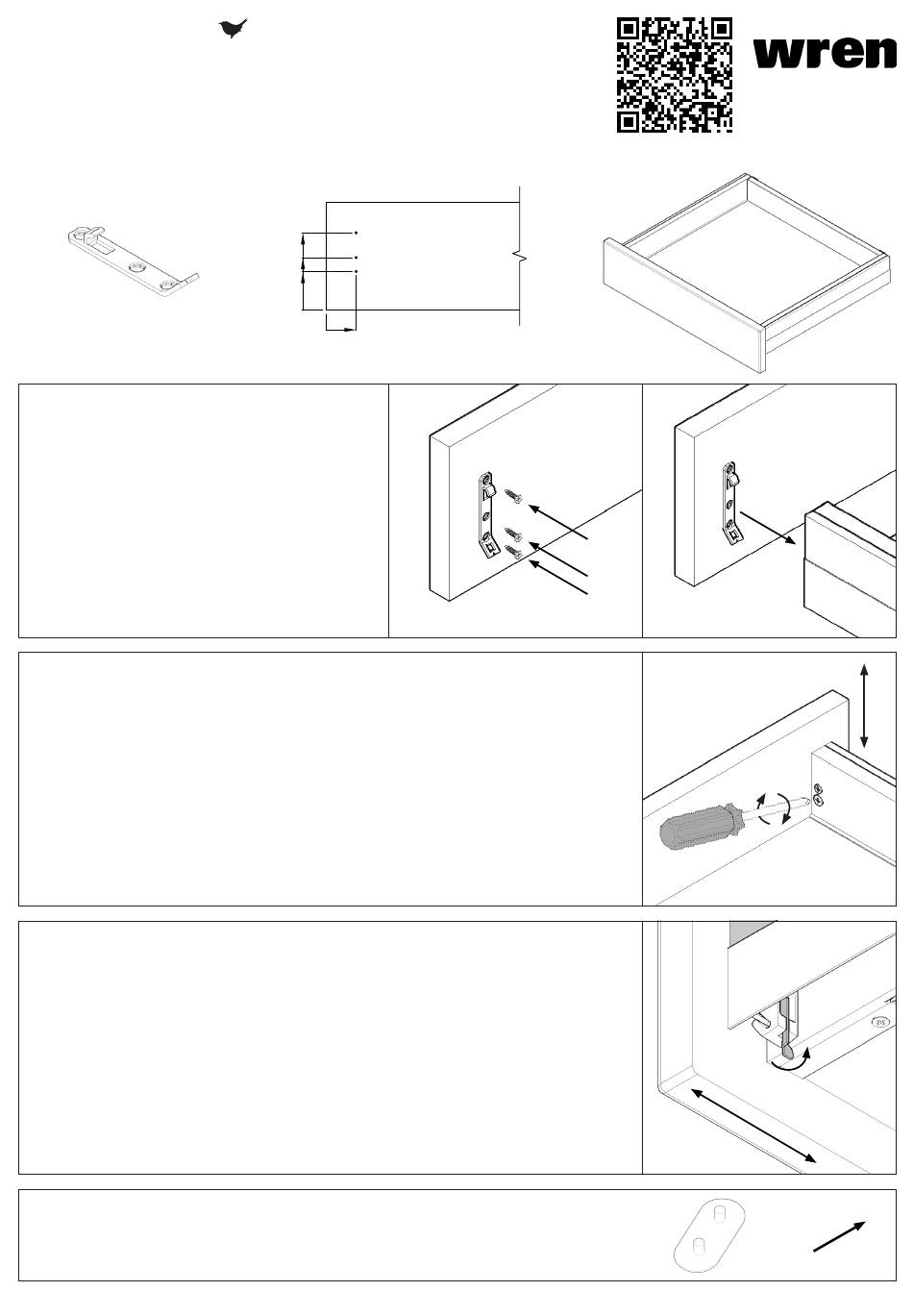

INFINITY PLUS Drawer Guide
INFINITY PLUS STANDARD DRAWER
Standard Fixing
Step 1.
Attach the frontal fixings to the drawer
frontal using 3 x 5/8" screws per bracket using
the screw hole positions as shown on both
sides.
Step 2.
Attach the drawer front by pushing
the frontal onto the sides, aligning the
mechanism with the fixings.
Step 3.
Loosen top screw. Turn the bottom screw to adjust drawer frontal height, once
in desired position re-tighten the top screw.
Step 4.
Press in the fixing clips half way, located at the bottom of the frontal on both
sides of the drawer. Adjust the position of the drawer frontal, left or right.
Release the fixing clips on both sides of the drawer to secure the frontal in the
new position.
Frontal Removal: To remove the frontal, press the fixing clips fully.
Step 5.
Fit drawer cover caps over drawer side adjustment screws.
For Internal Use: _CON.INS.015.001_INFINITYPLUS_DRAWER_GUIDE_Rev5
1 ½"
2 ⅞"
Fixing Clip
2 ¹³⁄₁₆"
Standard Drawer
1 ½"
4"
2 ¾"
1 ½"
Escanear para español
7 ¹⁵⁄₁₆"
6 ⅝"
4 ½"
2 ⅞"
2 ¹³⁄₁₆"
1 ½"
191
99
67
9 ³⁄₁₆"
4"
2 ¾"
1 ½"
Cover caps
