Matrix TBCC Manual page 5

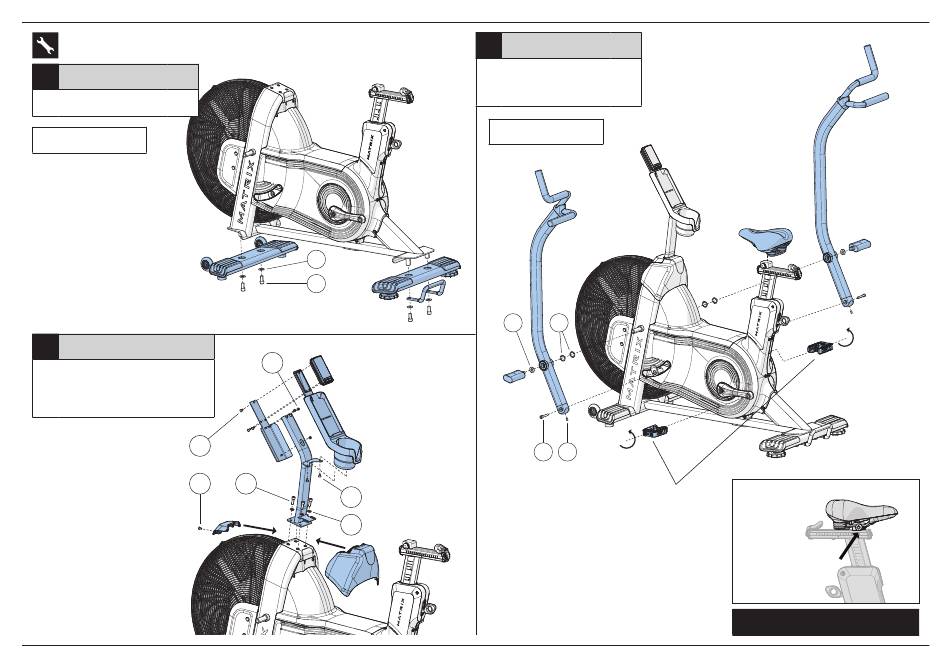

ASSEMBLY
1
Hardware Qty
A Bolt (M12x25L) 4
B Flat Washer (M12) 4
Torque Value
78 Nm / 58 ft-lb.
2
Hardware Qty
C Bolt (M8x25L) 4
D Flat Washer (M8) 4
E Screw (M5x12L) 3
F Flat Head Screw (M5x12L) 3
G Nut (M5) 3
F
E
B
A
G
C
E
D
ENGLISH
3
Hardware Qty
H Wavy Washer 4
I Flat Washer 2
J Bolt (M10x30L) 2
K Set Screw 2
Torque Value
40 Nm / 29.5 ft-lb
I H
J K
5
40 Nm / 29.5 ft-lb
Secure seat near
the front of the seat
ASSEMBLY COMPLETE
