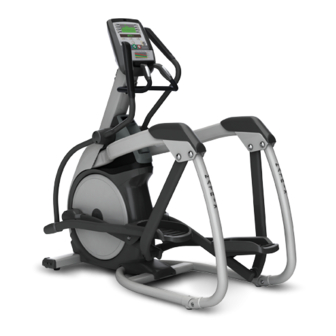

Matrix E3X-02 Service Manual

Suspension elliptical
Hide thumbs
Table of Contents

Advertisement

Quick Links

E 3 X - 0 2 S U S P E N S I O N E L L I P T I C A L
S E R V I C E M A N U A L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E3X-02 and is the answer not in the manual?

Questions and answers

Related Manuals for Matrix E3X-02

Summary of Contents for Matrix E3X-02

  • Page 1 E 3 X - 0 2 S U S P E N S I O N E L L I P T I C A L S E R V I C E M A N U A L...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS CHAPTER 1: SERIAL NUMBER LOCATION ............1 CHAPTER 2: IMPORTANT SAFETY INSTRUCTIONS Read and Save These Instructions ................2 Electrical Requirements ..................... 3 CHAPTER 3: PREVENTATIVE MAINTENANCE Recommended Cleaning Tips ..................4 Check for Damaged Parts ..................4 Care and Maintenance Instructions ................
  • Page 3 TABLE OF CONTENTS 9.14 Foot Pedals Replacement ................... 53 9.15 Pedal Arm Replacement ..................... 44 9.16 Link Arm Replacement ....................45 9.17 Swing Arm Replacement ..................... 46 9.18 Vertical Stabilizer Arm Replacement ................47 9.19 Incline Arm Cover Replacement ................. 48 9.20 Handlebar Service .......................

  • Page 4: Chapter 1: Serial Number Location

    CHAPTER 1: SERIAL NUMBER LOCATION 1.1 SERIAL NUMBER LOCATION SERIAL NUMBER LOCATION...

  • Page 5: Chapter 2: Important Safety Instructions

    This Suspension Elliptical is intended for commercial use. To ensure CAUTION! If you experience chest pains, nausea, dizziness, or your safety and protect the equipment, read all instructions before shortness of breath, stop exercising immediately and consult operating the MATRIX Suspension Elliptical. your physician before continuing. When using an electrical product, basic precautions should always be CAUTION! Any changes or modifications to this equipment followed including the following: could void the product warranty.

  • Page 6: Electrical Requirements

    2.2 ELECTRICAL REQUIREMENTS The Matrix Suspension elliptical is designed to be self powered. NOTE: If an add on TV (using a bracket) or Virtual Active is added to the unit, it must be plugged in, or the TV or VA will not operate correctly. If the Suspension Elliptical will be plugged in, follow the requirements below.

  • Page 7: Chapter 3: Preventative Maintenance

    Preventative maintenance and daily cleaning will prolong the life and DO NOT use any equipment that is damaged or has worn or broken look of your MATRIX Suspension Elliptical. parts. Use only replacement parts supplied by Matrix Fitness Systems. Please read and follow these tips.

  • Page 8: Care And Maintenance Instructions

    3.3 CARE AND MAINTENANCE INSTRUCTION In order to maximize life span, and minimize down time, all MATRIX equipment requires regular cleaning, and maintenance items performed on a scheduled basis. This section contains detailed instructions on how to perform these items, the frequency of which they should be done, and a check list to sign off each time service is completed for a specific machine.

  • Page 9: Chapter 4: Console Overlay And Workout Description

    CHAPTER 4: CONSOLE OVERLAY AND WORKOUT DESCRIPTION 4.1 CONSOLE DESCRIPTION WORKOUT KEYS Simple program view and selection buttons. GO: One touch Start. ENTER: To confirm each program setting. UP / DOWN LEVEL: Easy information and level selection. UP / DOWN TIME: Easy information and time adjustment. STOP: Ends workout and shows workout summary data. COOL DOWN: Puts the Ascent Trainer into Cool Down Mode.

  • Page 10: Workout Setup Steps - Manual

    CHAPTER 4: CONSOLE OVERLAY AND WORKOUT DESCRIPTION 4.2 WORKOUT SETUP STEPS - MANUAL - Press to immediately begin a workout. Workout, resistance level, and time will automatically go to default settings. Pressing GO will not prompt user for age, weight, or level settings. 1) Start pedaling and press the GO key to begin your workout.

  • Page 11: Workout Setup Steps - Heart Rate Control

    4.5 WORKOUT SETUP STEPS - HEART RATE CONTROL TARGET HEART RATE - The Matrix Ascent Trainer comes with standard digital contact heart rate sensors and are POLAR telemetry compatible. The heart rate control workout mode allows the user to program their desired heart rate zone, and the Ascent Trainer will automatically adjust the level based upon the user's heart rate.

  • Page 12: Chapter 5: Manager Mode

    CHAPTER 5: MANAGER MODE 5.1 MANAGER MODE OVERVIEW The Manager's Custom Mode allows the club owner to customize the Suspension Elliptical for the club. 1) To enter Manager Mode, press and hold down the UP and DOWN LEVEL keys. Continue to hold down these two keys until the display reads Manager and hit ENTER (Figure A).

  • Page 13: Manager Mode Information

    CHAPTER 5: MANAGER MODE 5.2 MANAGER MODE INFORMATION CUSTOM SETTING DEFAULT MINIMUM MAXIMUM DESCRIPTION Maximum Time 60 min 5 min 99 min Sets the total run time of any program. Default Time 30 min 5 min Maximum Time Workout time when GO is pressed or when no time is selected Setting during program set up.

  • Page 14: Chapter 6: Engineering Mode

    CHAPTER 6: ENGINEERING MODE 6.1 USING ENGINEERING MODE To enter Engineering Mode, hold the LEVEL UP and DOWN keys for 3-5 seconds until Manager appears on the middle LED display. Press the LEVEL UP or DOWN key to scroll to Engineering. Press ENTER to go into Engineering Mode. CUSTOM SETTING DEFAULT OPTIONS...

  • Page 15: Chapter 7: Service Mode

    CHAPTER 7: SERVICE MODE 7.1 USING SERVICE MODE To enter Service Mode, hold the LEVEL UP and DOWN keys for 3-5 seconds until Manager Mode appears on the middle LED display. Press the LEVEL UP or DOWN key to scroll to Service Mode. Press ENTER to go into Service Mode. CODE DEFAULT OPTIONS...

  • Page 16: Chapter 8: Troubleshooting

    CHAPTER 8: TROUBLESHOOTING 8.1 ELECTRICAL DIAGRAMS...
  • Page 17 CHAPTER 8: TROUBLESHOOTING 8.1 ELECTRICAL DIAGRAMS - CONTINUED G14 - HAND PULSE CONNECTION WIRE...
  • Page 18 CHAPTER 8: TROUBLESHOOTING 8.1 ELECTRICAL DIAGRAMS - CONTINUED P21 - DIGITAL COMMUNICATION WIRE...

  • Page 19: Error Codes On The Console

    CHAPTER 8: TROUBLESHOOTING 8.2 ERROR CODES ON THE CONSOLE CODE CLASS DESCRIPTION SOLUTION 0x02AB Machine type error. Set the correct machine type in Engineering Mode. 0x02B4 Resistance type error. Set the correct machine type in Engineering Mode. 0x0201 Low voltage on the battery Charge by running or by plugging (voltage under 11.2V).

  • Page 20: Lcb Led Indicators

    CHAPTER 8: TROUBLESHOOTING 8.3 LCB LED INDICATORS LED CHECKPOINT POSSIBLE ISSUE SOLUTION LEDs 2, 3, 4, 6, & 7 should be ON. If they are OFF, the LCB is damaged. Replace the LCB. If LED 1 is OFF. No AC power cord plugged in. Normal for a self powered unit.

  • Page 21: Troubleshooting - Error 0X04A0

    CHAPTER 8: TROUBLESHOOTING 8.4 TROUBLESHOOTING - ERROR 0x04A0 ERROR 0x04A0 (DIGITAL COMMUNICATION FAILURE) LED 1 SYMPTOM: Error code 0x04A0 is displayed on the console. CHECK POINT POSSIBLE ISSUE SOLUTION LEDs 2, 3, 4, 6, and 7 should be ON. If they are OFF, the LCB is damaged. Replace the LCB.

  • Page 22: Troubleshooting - Resistance Issues

    CHAPTER 8: TROUBLESHOOTING 8.5 TROUBLESHOOTING - RESISTANCE ISSUES HIGH OR NO RESISTANCE POSSIBLE CAUSES: 1) The console cable is damaged or not properly plugged in. 2) The UCB is damaged. 3) The Generator is damaged. 4) The LCB is damaged. SOLUTION: 1) Check the console cable connections at the UCB and LCB.

  • Page 23: Troubleshooting - Pedals Slipping

    CHAPTER 8: TROUBLESHOOTING 8.6 TROUBLESHOOTING - PEDALS SLIPPING PEDALS SLIPPING POSSIBLE CAUSES: 1) The belt tension is not enough. 2) The one way bearing is damaged. SOLUTION: 1) Remove the covers and check the drive belt tension. a. The drive belt should be tightened to 180 ft / lbs for a new belt and 150 ft / lbs for a used belt. 2) If the belts are tensioned correctly, the one way bearing is damaged, replace the drive assembly.

  • Page 24: Troubleshooting - Heart Rate Issues

    CHAPTER 8: TROUBLESHOOTING 8.8 TROUBLESHOOTING - HEART RATE ISSUES HEART RATE ISSUES POSSIBLE CAUSES: 1) The display is stuck on heart rate. 2) Erratic heart rate. 3) No heart rate. SOLUTION: 1) If the display is stuck on heart rate, it is normally due to the lighting in the area. a.

  • Page 25: Troubleshooting - No Power To The Console

    CHAPTER 8: TROUBLESHOOTING 8.9 TROUBLESHOOTING - NO POWER TO THE CONSOLE POWER SWITCH IS ON, BUT THE CONSOLE HAS NO DISPLAY POSSIBLE CAUSES: 1) The unit is not getting power from the outlet. 2) The LCB is not getting power from the power receptacle. 3 &...

  • Page 26: Chapter 9: Part Replacement Guide

    CHAPTER 9: PART REPLACEMENT GUIDE 9.1 FRONT DISK REPLACEMENT 1) Remove the center cover by turning it counter clockwise (Figures A & B). FIGURE A FIGURE B 2) Remove the 3 screws holding the disk to the axle (Figure C). 3) Remove the disk (Figure D).

  • Page 27: Front Shroud Replacement

    CHAPTER 9: PART REPLACEMENT GUIDE 9.2 FRONT SHROUD REPLACEMENT 1) Remove the link arm and pedal arm plastic caps (Figures A & B). FIGURE A FIGURE B 2) Detach the dual action handlebar from the link arm (Figure C). 3) Secure the handlebar so that it is out of the way (Figure D). FIGURE C FIGURE D 4) Remove the front disks as outlined in Section 9.1.
  • Page 28 CHAPTER 9: PART REPLACEMENT GUIDE 9.2 FRONT SHROUD REPLACEMENT - CONTINUED 7) Pull out the rubber tray from the cup holder plastic (figure G). 8) Remove the 2 screws to disassemble the cup holder plastic and remove it from the unit (Figure H). FIGURE G FIGURE H 9) Remove the 2 screws to disassemble and remove the middle stabilizer sweat cover (Figures I & J). FIGURE I FIGURE J 10) Remove the 1 screw (exposed when the cup holder is removed) holding the orange slot cover to the frame and remove it (Figure K).
  • Page 29 CHAPTER 9: PART REPLACEMENT GUIDE 9.2 FRONT SHROUD REPLACEMENT - CONTINUED 12) Remove the 9 screws to detach the front shrouds from the frame (or each other) (Figure M). 13) Turn the crank to the slotted portion of the shroud (Figure N). FIGURE M FIGURE N 14) Remove the front shrouds for frame access (Figures O &...

  • Page 30: Lower Control Board (Lcb) Replacement

    CHAPTER 9: PART REPLACEMENT GUIDE 9.3 LOWER CONTROL BOARD REPLACEMENT 1) Turn off the power and disconnect the cord from the machine. 2) Remove both front disks from the machine as outlined in Section 9.1. 3) Disconnect all wires from the LCB (Figure A). FIGURE A 4) Remove the 2 screws holding the LCB to the frame (Figure B).

  • Page 31: Generator Replacement

    CHAPTER 9: PART REPLACEMENT GUIDE 9.4 GENERATOR REPLACEMENT 1) Turn off power and disconnect the cord from the machine. 2) Remove the front disks as outlined in Section 9.1. 3) Remove the front shrouds as outlined in Section 9.2. 4) Cut the cable tie holding the cable to the frame (Figure A). 5) Unplug the power cable connector of the generator (Figure B).
  • Page 32 CHAPTER 9: PART REPLACEMENT GUIDE 9.4 GENERATOR REPLACEMENT – CONTINUED 8) Remove the nut from the other side of the generator bracket (Figure E). 9) Loosen and remove the generator belt (Figure F). FIGURE E FIGURE F 10) Remove the generator from the frame. 11) Reverse Steps 1-10 to install a new generator.

  • Page 33: Generator Belt Replacement

    CHAPTER 9: PART REPLACEMENT GUIDE 9.5 GENERATOR BELT REPLACEMENT 1) Turn off the power and disconnect the cord from the machine. 2) Remove the front disks from the machine as outlined in Section 9.1. 3) Remove the front shrouds as outlined in Section 9.2. 4) Remove the generator as outlined in Section 9.4.

  • Page 34: Drive Belt Replacement

    CHAPTER 9: PART REPLACEMENT GUIDE 9.6 DRIVE BELT REPLACEMENT 1) Turn off the power and disconnect the cord from the machine. 2) Remove the front disks from the machine as outlined in Section 9.1. 3) Loosen the belt tension bolt on the left side of the tension pulley and rotate the pulley counter-clockwise until there is enough slack in the belt to remove it (Figures A &...

  • Page 35: Pulley Axle Set Replacement

    CHAPTER 9: PART REPLACEMENT GUIDE 9.7 PULLEY AXLE SET REPLACEMENT 1) Turn off the power and disconnect the cord from the machine. 2) Remove both front disks from the machine as outlined in Section 9.1. 3) Loosen the belt tension bolt on the right side until there is enough slack to remove the drive belt (Figure A). 4) On the right side of the frame, remove the retaining clip that holds the pulley axle bearing into the frame (Figure B).

  • Page 36: Drive Axle Set Replacement

    CHAPTER 9: PART REPLACEMENT GUIDE 9.8 DRIVE AXLE SET REPLACEMENT NOTE: A Matrix special tool is needed to correctly replace a drive axle. Order part # 0000094817 from Matrix CTS at 866-693-4863 ext 3. 1) Turn off the power and disconnect the cord from the machine. 2) Remove the front disks from the machine as outlined in Section 9.1. 3) Remove both belts as outlined in Sections 9.5 & 9.6.
  • Page 37 CHAPTER 9: PART REPLACEMENT GUIDE 9.8 DRIVE AXLE SET REPLACEMENT - CONTINUED 10) The drive axle should have come with an iron plate installed (Figure G). 11) Assemble the Matrix tool as shown in Figure H. FIGURE G FIGURE H 12) Slide the drive axle assembly into the frame from the right side.
  • Page 38 CHAPTER 9: PART REPLACEMENT GUIDE 9.8 DRIVE AXLE SET REPLACEMENT - CONTINUED 16) Turn the nut until the iron plate is close to the frame on the right side (Figure M). 17) Remove the tools, then insert the bearing into the hole in the frame on the left side (Figure N). FIGURE M FIGURE N 18) Again use the M10 x 65L screw with a washer and a nut to attach the tool to the drive axle (Figure O).
  • Page 39 CHAPTER 9: PART REPLACEMENT GUIDE 9.8 DRIVE AXLE SET REPLACEMENT - CONTINUED 22) Use a screwdriver to remove the iron plate from the drive axle (Figures S & T). FIGURE S FIGURE T 23) Re-install the belts as outlined in Sections 9.5 and 9.6. 24) Test the Suspension Elliptical as outlined in Section 9.21.

  • Page 40: Crank Replacement

    CHAPTER 9: PART REPLACEMENT GUIDE 9.9 CRANK REPLACEMENT 1) Turn off the power and disconnect the cord from the machine. 2) Remove the front disks from the machine as outlined in Section 9.1. 3) Remove the screw from the crank (Figure A). 4) Insert an M10 screw (should be at least 40 long) into the crank hole.

  • Page 41: Console Replacement

    CHAPTER 9: PART REPLACEMENT GUIDE 9.10 CONSOLE REPLACEMENT 1) Turn off the power and disconnect the cord from the machine. 2) Remove the 5 screws that hold the console to the top of the console mast (Figure A). 3) Disconnect the console cable and other wiring and remove the console (Figure B). FIGURE A FIGURE B 4) Connect the wire connections to the new console.

  • Page 42: Overlays & Keypads Replacement

    CHAPTER 9: PART REPLACEMENT GUIDE 9.11 OVERLAY & KEYPAD REPLACEMENT NOTE: The instructions below are for console overlays / keypads, but the procedure is the same regardless of where the overlay / keypad is. 1) Turn off power and disconnect the cord from the machine. 2) Remove the console as outlined in Section 9.10.
  • Page 43 CHAPTER 9: PART REPLACEMENT GUIDE 9.11 KEYPAD & OVERLAY REPLACEMENT - CONTINUED 7) Peel part of the protective film from the back of the overlay (Figure E). 8) Push the overlay ribbon cable through the hole in the console and plug it in (Figure F). FIGURE E FIGURE F 9) Match the overlay to the cutout on the console (Figure G).

  • Page 44: Console Mast Handlebar Replacement

    CHAPTER 9: PART REPLACEMENT GUIDE 9.12 CONSOLE MAST HANDLEBAR REPLACEMENT 1) Turn off the power and disconnect the cord from the machine. 2) Remove the 4 bolts that hold the handlebar to the console mast (Figure A). FIGURE A 3) Pull the handlebar away from the console mast to expose the HR grip wiring (Figure B). 4) Carefully remove the wires from inside the console mast until the connectors on the ends come free and disconnect (Figure C).

  • Page 45: Dual Action Handlebar Replacement

    CHAPTER 9: PART REPLACEMENT GUIDE 9.13 DUAL ACTION HANDLEBAR REPLACEMENT 1) Remove the plastic cover where the dual action handlebar meets the link arm (Figure A). 2) Remove the bolt and bushings where the dual action handlebar and the link arm meet (Figure B). FIGURE A FIGURE B 3) Remove the two bolts that hold on the pivot cap and remove the cap (Figure C).

  • Page 46: Foot Pedals Replacement

    CHAPTER 9: PART REPLACEMENT GUIDE 9.14 FOOT PEDALS REPLACEMENT 1) Pull up on and remove the rubber portion of the pedal (Figure A). 2) Remove the 4 screws that hold the plastic pedal to the foot plate (Figure B). FIGURE A FIGURE B 3) Remove the plastic foot pedal (Figure C).

  • Page 47: Pedal Arm Replacement

    CHAPTER 9: PART REPLACEMENT GUIDE 9.15 PEDAL ARM REPLACEMENT 1) Remove the plastic cover where the pedal arm attaches to the crank (Figure A). 2) Disconnect the pedal arm from the crank (Figure B). FIGURE A FIGURE B 3) Remove the plastic cap from the swing arm (Figure C). 4) Remove the bolt that holds the pedal and swing arms together (Figure D).

  • Page 48: Link Arm Replacement

    CHAPTER 9: PART REPLACEMENT GUIDE 9.16 LINK ARM REPLACEMENT 1) Remove the plastic cover where the dual action handlebar meets the link arm (Figure A). 2) Remove the bolt and bushings where the dual action handlebar meets the link arm (Figure B). FIGURE A FIGURE B 3) Remove the bolt that holds the link arm to the pedal arm and remove the link arm (Figure C).

  • Page 49: Swing Arm Replacement

    CHAPTER 9: PART REPLACEMENT GUIDE 9.17 SWING ARM REPLACEMENT 1) Remove the bolt from the upper pivot joint on the swing arm (Figure A). 2) Remove the plastic cap from the swing arm (Figure B). FIGURE A FIGURE B 3) Remove the bolt that holds the swing arm to the pedal arm (Figure C). 4) Take the bolt removed in Step 1 and turn it into the shaft (Figure D).

  • Page 50: Vertical Stabilizer Arm Replacement

    CHAPTER 9: PART REPLACEMENT GUIDE 9.18 VERTICAL STABILIZER ARM REPLACEMENT 1) Remove the bolt that holds the vertical stabilizer arm to the frame (Figures A & B). FIGURE A FIGURE B 2) Remove the bolt from the upper pivot joint of the vertical stabilizer arm (Figure C). 3) Remove the vertical stabilizer arm (Figure D).

  • Page 51: Incline Arm Cover Replacement

    CHAPTER 9: PART REPLACEMENT GUIDE 9.19 INCLINE ARM COVER REPLACEMENT 1) Remove the screw that holds the plastic cover on the arm (Figures A & B). FIGURE A FIGURE B 2) Remove the incline arm cover (Figure C). FIGURE C 3) Reverse Steps 1-2 to install a new incline arm.

  • Page 52: Handlebar Service

    CHAPTER 9: PART REPLACEMENT GUIDE 9.20 HANDLEBAR SERVICE 1) All items on the handlebar are removed using a Phillips screwdriver from the underside of the bar. 2) Once the screws are removed, lift the part carefully, then disconnect any wire connections to fully remove the part. This includes the resistance buttons and heart rate grip plates (Figures A &...

  • Page 53: Testing The Suspension Elliptical

    CHAPTER 9: PART REPLACEMENT GUIDE 9.21 TESTING THE SUSPENSION ELLIPTICAL ONCE THE UNIT OR REPLACEMENT PART IS FULLY INSTALLED AND ASSEMBLED AND PROPERLY PLACED ON THE FLOOR, USE THE FOLLOWING INSTRUCTIONS TO TEST THE MACHINE: 1) Enter Engineering Mode and input the serial number of the console. Also set the Machine Type and verify that the Date and Time are correct.

  • Page 54: Chapter 10: Suspension Elliptical Specifications And Assembly Guide

    CHAPTER 10: SUSPENSION ELLIPTICAL SPECIFICATIONS AND ASSEMBLY GUIDE 10.1 SUSPENSION ELLIPTICAL SPECIFICATIONS FEATURES Stride Length 21" Incline Range Contact and Telemetric Heart Rate Sensors Cushioned Footpads Pedal Spacing 2.5" Handlebar Design Multi-position dual action and ergo bend stationary. Thumb Switch Controls RESISTANCE SYSTEM Technology Generator...

  • Page 55: Assembly Hardware

    CHAPTER 10: SUSPENSION ELLIPTICAL SPECIFICATIONS AND ASSEMBLY GUIDE 10.2 ASSEMBLY HARDWARE QUANTITY SKETCH DESCRIPTION PACKAGE COLOR SOCKET HEAD CAP SCREW RED (2 BAGS) (M10 X 1.5P X 25L) 10.9 GRADE MINIMUM FLAT WASHER RED (2 BAGS) (10.2 X 20 X 2.0T) SOCKET HEAD CAP SCREW GREEN (M10 X 1.5P X 100L)

  • Page 56: Suspension Elliptical Assembly Steps

    CHAPTER 10: SUSPENSION ELLIPTICAL SPECIFICATIONS AND ASSEMBLY GUIDE 10.3 SUSPENSION ELLIPTICAL ASSEMBLY STEPS STEP 1...
  • Page 57 CHAPTER 10: SUSPENSION ELLIPTICAL SPECIFICATIONS AND ASSEMBLY GUIDE 10.3 SUSPENSION ELLIPTICAL ASSEMBLY STEPS - CONTINUED STEP 2 - RED HARDWARE BAG...
  • Page 58 CHAPTER 10: SUSPENSION ELLIPTICAL SPECIFICATIONS AND ASSEMBLY GUIDE 10.3 SUSPENSION ELLIPTICAL ASSEMBLY STEPS - CONTINUED STEP 3 - PINK HARDWARE BAG...
  • Page 59 CHAPTER 10: SUSPENSION ELLIPTICAL SPECIFICATIONS AND ASSEMBLY GUIDE 10.3 SUSPENSION ELLIPTICAL ASSEMBLY STEPS - CONTINUED STEP 4 - GREEN / YELLOW HARDWARE BAG Torque this bolt to 80 N-m.
  • Page 60 CHAPTER 10: SUSPENSION ELLIPTICAL SPECIFICATIONS AND ASSEMBLY GUIDE 10.3 SUSPENSION ELLIPTICAL ASSEMBLY STEPS - CONTINUED STEP 5 - RED HARDWARE BAG...
  • Page 61 CHAPTER 10: SUSPENSION ELLIPTICAL SPECIFICATIONS AND ASSEMBLY GUIDE 10.3 SUSPENSION ELLIPTICAL ASSEMBLY STEPS - CONTINUED STEP 6...
  • Page 62 CHAPTER 10: SUSPENSION ELLIPTICAL SPECIFICATIONS AND ASSEMBLY GUIDE 10.3 SUSPENSION ELLIPTICAL ASSEMBLY STEPS - CONTINUED STEP 7 - BLUE / BLACK HARDWARE BAG...
  • Page 63 CHAPTER 10: SUSPENSION ELLIPTICAL SPECIFICATIONS AND ASSEMBLY GUIDE 10.3 SUSPENSION ELLIPTICAL ASSEMBLY STEPS - CONTINUED STEP 8 - WHITE HARDWARE BAG...
  • Page 64 CHAPTER 10: SUSPENSION ELLIPTICAL SPECIFICATIONS AND ASSEMBLY GUIDE 10.3 SUSPENSION ELLIPTICAL ASSEMBLY STEPS - CONTINUED STEP 9 - PINK HARDWARE BAG...
  • Page 65 CHAPTER 10: SUSPENSION ELLIPTICAL SPECIFICATIONS AND ASSEMBLY GUIDE 10.3 SUSPENSION ELLIPTICAL ASSEMBLY STEPS - CONTINUED STEP 10 - PINK HARDWARE BAG...
  • Page 66 CHAPTER 10: SUSPENSION ELLIPTICAL SPECIFICATIONS AND ASSEMBLY GUIDE 10.3 SUSPENSION ELLIPTICAL ASSEMBLY STEPS - CONTINUED STEP 11 - PINK HARDWARE BAG...
  • Page 67 CHAPTER 10: SUSPENSION ELLIPTICAL SPECIFICATIONS AND ASSEMBLY GUIDE 10.3 SUSPENSION ELLIPTICAL ASSEMBLY STEPS - CONTINUED STEP 12 - PINK HARDWARE BAG...

  • Page 68: Leveling The Suspension Elliptical

    STABILIZING THE MATRIX SUSPENSION ELLIPTICAL The Matrix Suspension Elliptical should be level for optimum use. Once you have placed your unit where you intend to use it, raise or lower one or both of the adjustable levelers located on the bottom of the frame. Use a 6mm Allen wrench through the access hole at the rear hinge joint on both sides (Figure A).

  • Page 69: Chapter 11: Software Upgrade Procedure

    4) Build a path of folders on the USB drive that will be used. The path should be MATRIX\FW\UCB (create a folder called MATRIX, then a folder within MATRIX called FW, then a folder within FW called UCB).
  • Page 70 NOTES...
