Summary of Contents for Matrix MD-S70

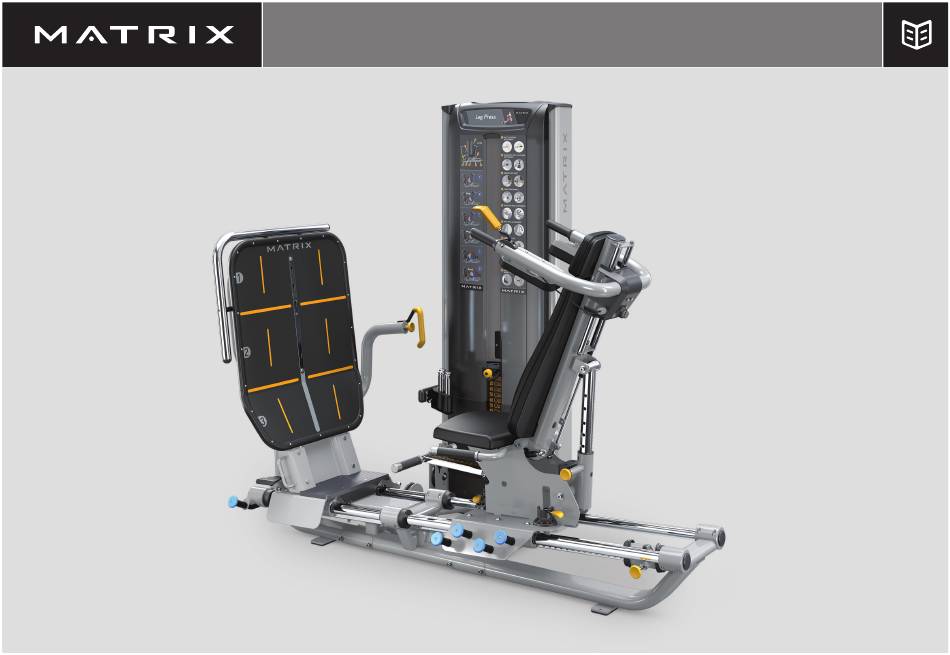

- Page 1 MD-S70 MEDICAL LEG PRESS...
- Page 3 This equipment is for indoor use only. This training equipment with reduced physical, sensory or mental that MATRIX equipment be used properly to avoid injury. is a Class S product (designed for use in a commercial capabilities, or lack of experience and knowledge, environment such as a fitness facility).
- Page 4 MODES OF USE 1. ISOMETRIC • Muscle contraction without movement against a static weight • How to: choose a fixed numbered position for the range limiter under the carriage by pulling the pin and sliding range limiter to the desired position. Move the weight stack disengagement lever to the “unlocked” position. Switch the carriage lock-out lever to the “locked”...
-
Page 5: Intended Use
PROPER USAGE 1. Do not exceed weight limits of the exercise device. The intended use of the Matrix MD-S70 Medical Leg Press is to create a 2. If applicable, set safety stops to appropriate height. predetermined, defined physical activity level for the patient. The physical activity level is generated by the user pushing against a stationary foot plate to move the 3. - Page 6 ADJUSTMENT POINTS FOOT PLATFORM STARTING POSITION Foot Rest Grasp handle, squeeze pin, push or pull platform Grasp center of foot rest, pull out to full extension. to desired start position, release pin. Gives the user a place to rest a foot Allows the user to adjust the starting position of while doing 1-legged exercises.
- Page 7 ADJUSTMENT POINTS Shoulder Pad Adjustment Carriage Lock Squeeze handle down and slide shoulder harness To lock the carriage into a fixed position, grasp up or down to a comfortable starting position. handle and rotate to the lockout position. By sliding the carriage back to the range limiter position and engaging the carriage lockout, this allows the user to perform isometric exercises.
- Page 8 As Needed * Ensure a minimum clearance width of 0.6 meters (24”) for access to and pas- sage around MATRIX strength equipment. Please note, 0.91 meters (36”) is the Upholstery & Grips should be cleaned with a mild soap ADA recommended clearance width for individuals in wheelchairs.
- Page 9 4MM L-Shaped Allen Wrench Phillips Screwdriver 5MM L-Shaped Allen Wrench 8MM Open-End Wrench 6MM L-Shaped Allen Wrench 17MM Open-End Wrench 8MM L-Shaped Allen Wrench Guide Rod Lubrication If any items are missing please contact your country’s local MATRIX dealer for assistance.
- Page 10 Do not fully tighten frame connectors until Step 2 Hardware assembly is complete. Vibra-Tite 135 Red Gel Description or equivalent must be used on all fasteners Bolt (M10x150L) that are not assembled with Nylock Nuts. Arc Washer (Φ10.2) Nut (M10) Hex Head Bolt (M10x20L) Spring Washer (Φ10.2) Washer (Φ10.2)
- Page 11 Step 3 Hardware Step 4 Hardware Description Description Hex Head Bolt (M10x20L) Arc Washer (Φ10.2) Spring Washer (Φ10.2) Hex Head Bolt (M10x20L) Washer (Φ10.2) Spring Washer (Φ10.2) Washer (Φ10.2) Socket Head Bolt (M10x20L) Pre-installed Nut (M12) Cable...
- Page 12 Step 6 Hardware Description Nut (M10) Washer (Φ10.2) Bolt (M10x75L) Bolt (M10x30L) Pre-installed Screw (M5x20L)
- Page 13 Step 7 Hardware Description Washer (Φ10.2) Socket Head Bolt (M10x20L) Route cable through hole and attach using pre-installed hardware...
- Page 14 Step 9 Hardware Step 10 Hardware Description Description Pre-installed Screw (M5x20L) Washer (Φ10.2) Screw (M8x20L) Socket Head Bolt (M10x20L) Washer (Φ8.2) Socket Head Bolt (M10x25L)
- Page 15 Step 12 Hardware Description Socket Head Bolt (M10x25L) Plastic Cap Bolt (M8x15L) Rubber Stopper...
- Page 16 Step 13 Hardware Step 14 Hardware Description Description Hex Head Bolt (M10x20L) Special Screw Washer (Φ10.2) Nylon Washer (Φ13.2) Socket Head Bolt (M10x20L) Plastic Spacer Ring Torque Value 2.5 Nm / 22 in -lbs...
- Page 17 Step 15 Hardware Step 16 Hardware Description Description Washer (Φ10.2) Washer (Φ8.2) Bolt (M8x25L) ASSEMBLY COMPLETE!
- Page 18 OPTIONAL ASSEMBLY (SOLD SEPARATELY) INCREMENTAL WEIGHTS STEP STOOL Small platform used to help users enter the machine. Set of 4 with Hardware holder. Each Description weight adds Plug (pre-installed) 0.9 kg / 2 lbs Bolt (M10x20L) ACCESSORY PACK of effective Spring Washer (Φ10.2) resistance to Arc Washer (Φ10.2)
- Page 20 MD-S70 Part # XXXXXXXXXX © 2019 Johnson Health Tech Rev 1.2 A...
