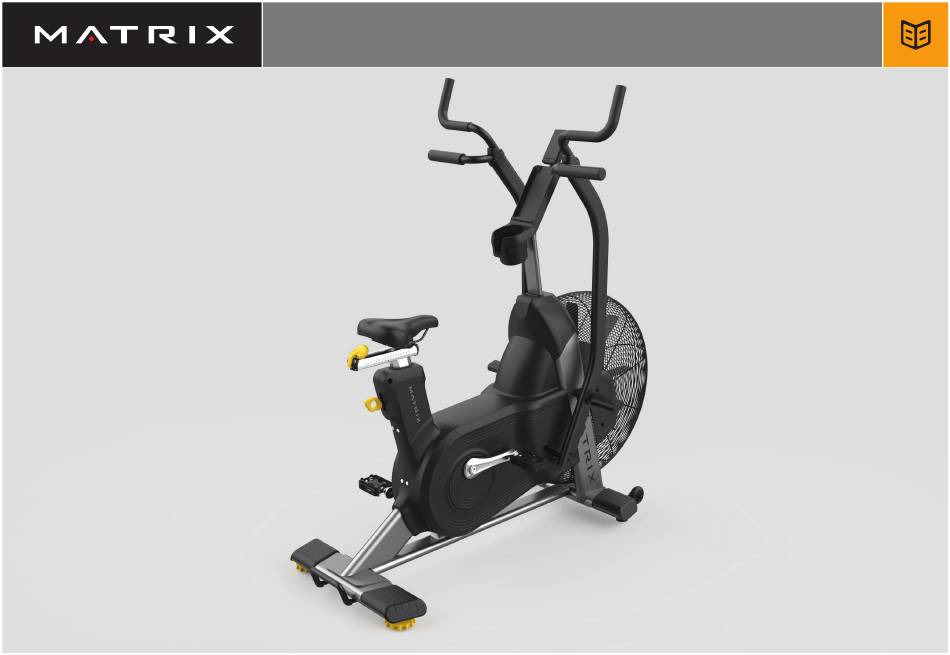

- Page 1 TBCC...
-
Page 2: Important Precautions
IMPORTANT PRECAUTIONS SAVE THESE INSTRUCTIONS When using Matrix exercise equipment, basic precautions should always be followed, including the following: Read all instructions before using this equipment. It is the responsibility of the owner to ensure that all users of this replacement parts supplied by Customer Technical Support or an authorized dealer. - Page 3 F 1 Bicycle Saddle If you have questions or if there are any missing parts, contact Customer Tech Support. F 2 Pedals F 1 Hardware Kit SERIAL NUMBER MODEL TBCC MATRIX TOTAL BODY CYCLE * Use the information above when calling for service.

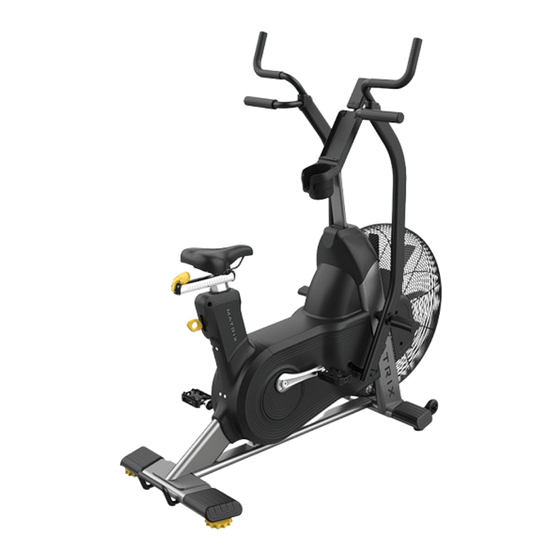

- Page 4 ENGLISH ASSEMBLY SADDLE PIVOTING HANDLEBARS HORIZONTAL SADDLE CONSOLE ADJUSTMENT LEVER DEVICE HOLDER MAIN FRAME SADDLE HEIGHT WATER BOTTLE HOLDER ADJUSTMENT LEVER FAN CAGE PEDALS FOOT PEGS CRANK FRONT STABILIZER TRANSPORT HANDLE TRANSPORT WHEELS REAR STABILIZER LEVELERS LEVELERS...
- Page 5 ENGLISH ASSEMBLY Hardware Wavy Washer Hardware Flat Washer Bolt (M10x30L) Bolt (M12x25L) Set Screw Flat Washer (M12) Torque Value Torque Value 40 Nm / 29.5 ft-lb 78 Nm / 58 ft-lb. Hardware Bolt (M8x25L) Flat Washer (M8) Screw (M5x12L) Flat Head Screw (M5x12L) Nut (M5) 40 Nm / 29.5 ft-lb Secure seat near...
-
Page 6: Console Operation
ENGLISH CONSOLE OPERATION FEATURES • ANT+ interoperable 2.4Ghz wireless technology • Best-in-class interference immunity • Low power consumption for long battery life • Code memory during battery displacement • Triple data display; Cadence, Heart rate and Training data • Automatic Scan function •... -
Page 7: Using The Console
ENGLISH CONSOLE OPERATION USING THE CONSOLE 6. For setting Mode: Long press ( ) Adjust values using Up/Down keys • The top display (RPM) shows Cadence in RPM, average RPM and Low • Heart Rate Pairing: Press ( ) for heart rate pairing, you must battery indicator. - Page 8 ENGLISH CONSOLE OPERATION LINK HERE STOP Mile PAIRING CADENCE TRANSMITTER TO CONSOLE 1. Remove the battery from the console and the display should go blank. 2. Insert the same battery again while pressing and holding any key. The display will now show the maintenance screen. 3.
- Page 9 ENGLISH CONSOLE OPERATION PAIRING CHEST TRANSMITTER TO CONSOLE 1. From sleep mode, press any key to activate the console. 2. Press and hold Set key ( ). This will display heart rate and ANT+ symbol. 3. For automatic pairing, press Mode Key ( ), this will display a four digit code below the stated heart rate.
- Page 10 ENGLISH CONSOLE OPERATION AVG RPM HEART RATE TRAINING TIME STOP PERSONAL DATA SETTINGS AND CHEST TRANSMITTER SETUP Once complete, the personal data is stored in the console memory. This can be changed or modified during exercise or when paused by pressing The product comes with three default settings: and holding Set key ( •...
-
Page 11: Before You Begin
ENGLISH BEFORE YOU BEGIN LOCATION OF THE UNIT TRAINING AREA FREE AREA Place the equipment on a level and stable surface away from direct sunlight. The intense UV light can cause discoloration on the plastics. Locate your equipment in an area with cool temperatures and low humidity. Please leave a clear zone on all sides of the equipment that is at least 60 cm (23.6”). - Page 12 ENGLISH BEFORE YOU BEGIN HOW TO ADJUST THE TBC The TBC can be adjusted for maximum comfort and exercise effectiveness. The instructions below describe one approach to adjusting the TBC to ensure optimal user comfort and ideal body positioning; you may choose to adjust the TBC differently. SADDLE ADJUSTMENT Proper saddle height helps ensure maximum exercise efficiency and comfort, while reducing the risk of injury.
-
Page 13: Maintenance
5. Ensure that any person(s) making adjustments or performing maintenance or and ammonia free). WEEKLY repair of any kind is qualified to do so. MATRIX dealers will provide service Clean all exterior parts, the steel frame, front and rear and maintenance training at our corporate facility upon request. -
Page 14: Product Information
(L x W x H)* 58.3 x 28.7 x 58.3” * Ensure a minimum clearance width of 0.6 meters (24”) for access to and passage around MATRIX equipment. Please note, 0.91 meters (36”) is the ADA recommended clearance width for individuals in wheelchairs. - Page 15 © 2024 Johnson Health Tech TBCC Rev 1.3 A...
