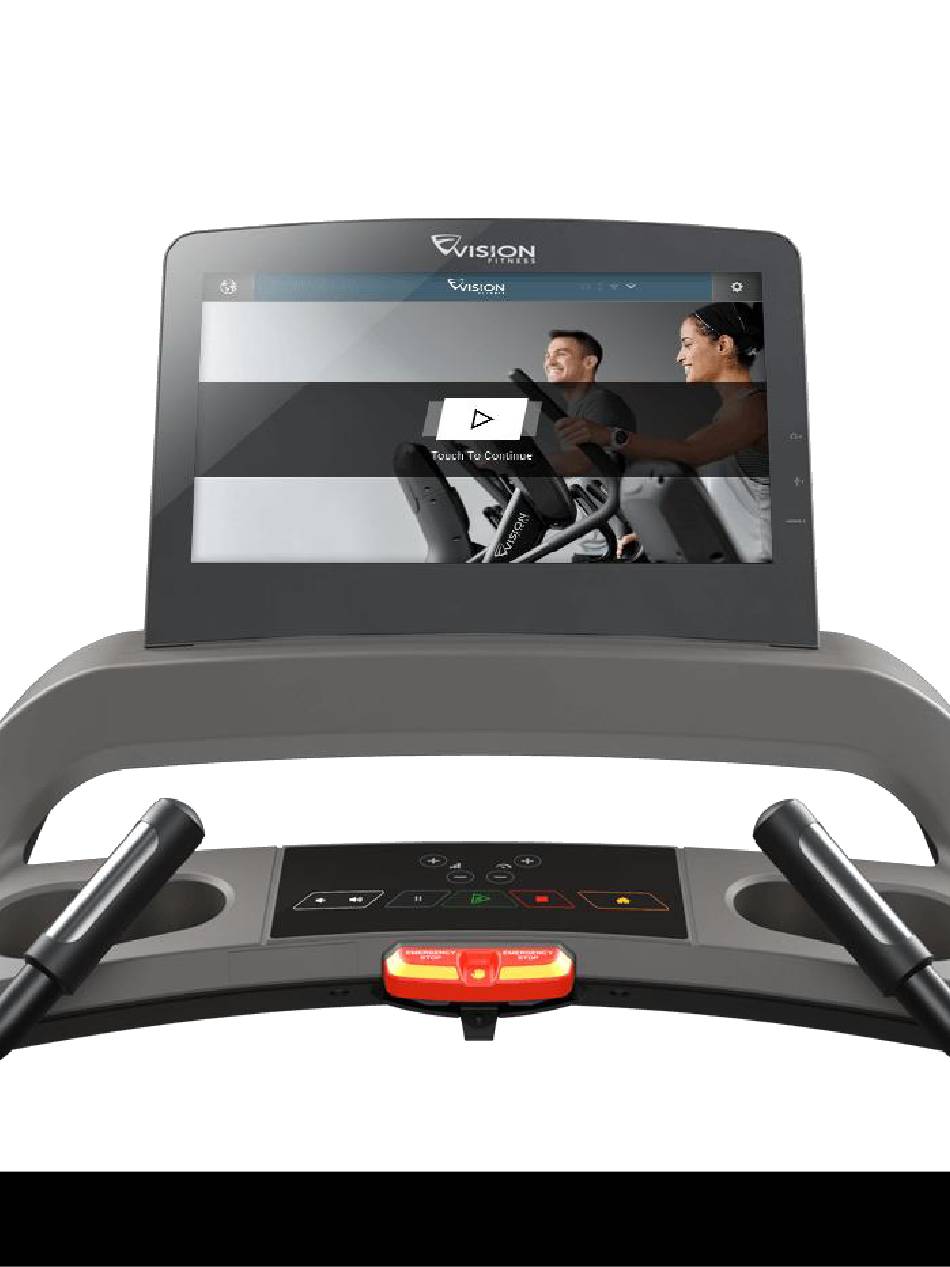

- Page 1 CAB MANUAL FOR MATRIX V600E CONSOLE FOR CABLE/SATELLITE BOX CONTROL – Part # CAB-MATRIX-V600E BVE Technical Support Tel: 888.330.4283 x 3 Support@Broadcastvision.com...
- Page 2 ACCESS MENU ON CONSOLE TO SET UP FOR CAB CONTROL Press and HOLD Vision logo for 3-5 seconds Select Machine Settings Type 3001 enter on the touch keypad Select TV Select TV Channel Setup BVE Technical Support Tel: 888.330.4283 x 3 Support@Broadcastvision.com...
- Page 3 ACCESS MENU ON CONSOLE TO SET UP FOR CAB CONTROL (Cont.) Select HDMI if you are connecting the console to the cable/satellite box using an HDMI cable. Select US6 if you are connecting via a Coaxial cable. Once selected, click CAB SET UP. HDMI COAXIL Select default channel for cable or...
- Page 4 How to Prepare the Console To Install the CAB • The V600 Entertainment console lacks an external port for connecting the CAB. Therefore, it will be necessary to drill an entry point on the shroud. Parts Needed: •Tape measure •Pen or something to mark the console shroud •Drill with ½”...
- Page 5 How to Prepare the Console To Install the CAB (Cont.) • Using a ½ inch drill bit and drill, carefully drill a hole at your mark. The plastic shroud is thin, so do not press hard when you drill as you do not want to damage any wires.
- Page 6 How to Install the CAB (Cont.) 12. If not already pre-assembled, plug the other end of CABLE C into the CAB. 13. Connect (CABLE B) into the other side of the CAB. You can plug (CABLE A) which is a 12 foot IR cable that is used when the cable or satellite box is next to the cardio equipment or you can use the adapters included that will allow you to extend the IR signal over CAT5.
- Page 7 Troubleshooting Double button presses – Some set top boxes respond to more than one of the IR codes that we send out. If you notice that pressing a channel button on the console results in multiple channel changes, simply remove the 2 screws that hold the lid on the CAB and turn on dip switch 2 and 4.
- Page 8 Troubleshooting (Cont.) No control over set top box (Cont.) IR signal strength issue – In rare circumstances, the CAB may output too strong of an IR signal for the set top box IR receiver. To test if the IR emitter is over-driving the set top box receiver, pull the emitter away from the front of the set top box, and press the channel button to see if the set top box now receives the channel No Continuity between CAB and IR emitter –...
