Summary of Contents for Matrix E1x

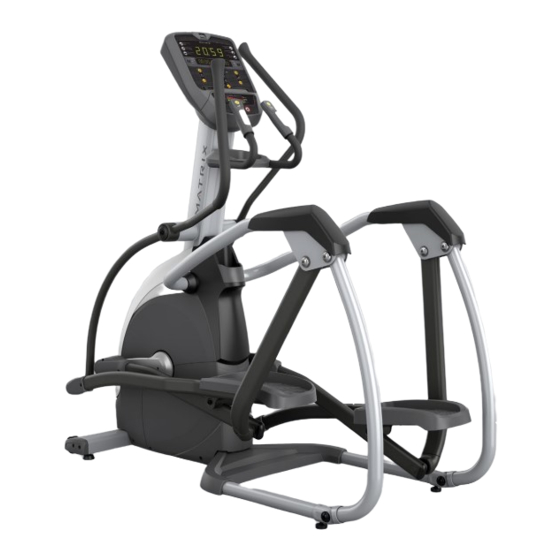

- Page 1 1-SERIES E1x Elliptical E1x_081201.indd 1 12/1/08 9:18:13 AM...
- Page 2 E1x_081201.indd 2 12/1/08 9:18:13 AM...
-
Page 3: Table Of Contents
ONTENTS CHAPTER 1: IMPORTANT SAFETY INSTRUCTIONS PAGE # 1.1 Before Getting Started ....................1.2 Proper Usage ......................... 1.3 Read and Save These Instructions ................... CHAPTER 2: SETUP 2.1 Getting Started ......................2.2 Choosing a Location ....................... 2.3 Stabilizing the Elliptical Trainer ..................2.4 Unpacking ........................CHAPTER 3: SERIAL NUMBER LOCATION 3.1 E1x Elliptical ........................CHAPTER 4: ELLIPTICAL PARTS & ASSEMBLY GUIDES 4.1 Fasteners and Assembly Tools ....................4.2 Exploded Diagram ........................4.3 Assembly Steps ........................CHAPTER 5: OVERLAY DESCRIPTION / ENGINEERING MODE 5.1 Console Display ........................5.2 Workout Parameter Prompts ..................... 5.3 Workout Overviews ........................5.4 Workout Tips ........................... 5.5 Workout Setup Steps ....................... -
Page 4: Before Getting Started
It is the sole responsibility of the purchaser of Matrix Fitness Systems in front of the Total Body Elliptical Trainer. products to instruct all individuals, whether they are the end user or supervising personnel, on proper usage of the equipment. • Assemble and operate the Matrix Total Body Elliptical Trainer on a solid, level surface. It is recommended that all users of Matrix Fitness Systems exercise equipment be informed of the following information prior to its use. • If you plan to move the unit, obtain help and use a hand truck. Do not grasp any plastic parts while lifting or moving the unit. The unit is too heavy and the plastic parts will break. 1.2 PROPER USAGE • Never operate the unit if it is damaged, not working properly, when it has • Do not use the equipment in any way other than designed or intended by been dropped, or has been dropped in water. the manufacturer. It is imperative that all Matrix Fitness Systems equipment is used properly to avoid injury. • Do not step on or set any object on the top of the pedal lever covers or the rear platform. • Keep hands and feet clear of moving parts at all times to avoid injury. • This unit is not equipped with a free wheel. Pedal speed should be reduced in a controlled manner. • Unsupervised children must be kept away from this equipment. CAUTION • Do not wear loose clothing while on equipment. If you experience chest pain, nausea, dizziness or shortness of breath, STOP exercising immediately and consult a physician before continuing. 1.3 READ AND SAVE CAUTION... -
Page 5: Chapter 2: Setup
CHAPTER 2: S etup 2.1 GETTING STARTED Read the Owner’s Manual before setting up the Matrix Elliptical Trainer. Place the unit where it will be used before beginning the setup procedure. 2.2 CHOOSING A LOCATION The site should be well-lit and well-ventilated. Place the E1x on a structurally solid and flat surface a few feet from the wall or any equipment. If the site has a heavy plush carpet, to protect the carpeting and machinery, you should place a rigid plastic base under the unit. Please do not place the Total Body Elliptical Trainer in an area of high humidity, such as the vicinity of a steam room, indoor pool, or sauna. Exposure to intensive water vapour or chlorine could adversely affect the electronics, as well as other parts of the machine. To make exercise a desirable daily activity for you, the Total Body Elliptical Trainer should be in an attractive setting. 2.3 STABILIZING THE MATRIX ELLIPTICAL TRAINER After placing the unit where it will be used, check its stability. If the Elliptical E1x is placed on a slightly, uneven surface, adjusting the adjustable levelers located underneath the base frame can help, but will not compensate for extremely uneven surfaces. To adjust, loosen the nut, and turn the leveler until the rocking motion ceases, and both levelers rest firmly on the floor. Retighten the nut. 2.4 UNPACKING THE TOTAL BODY ELLIPTICAL TRAINER The Elliptical Trainer is carefully inspected before shipment so it should arrive in good operating condition. Matrix Fitness ships the unit in the following pieces: Main Frame Assembly Front Foot Console Mast Handlebar Set Hardware Kit Console Mast Boot Console Dual-Action Handrails Accessory Tray Pedal Arms Hareware Kit E1x_081201.indd 3 12/1/08 9:18:16 AM... -
Page 6: Chapter 3: Serial Number Location
CHAPTER 3: S erial umber ocation 3.1 SERIAL NUMBER LOCATION The serial number is located under the console mast boot. SERIAL # PLACEMENT E1x_081201.indd 4 12/1/08 9:18:17 AM... -
Page 7: Chapter 4: Elliptical Parts & Assembly Guides
CHAPTER 4: E lliptical arts and ssembly uides 4.1 FASTNERS & ASSEMBLY TOOLS FASTENERS & ASSEMBLY TOOLS COLOR PARTS NO. DESCRIPTION SKETCH QUANTITY OF BAG Yellow Socket Buttonhead Screw (M8 X 1.25p X 20mm) Socket Buttonhead Screw (M8 X 1.25p X 80mm) Flat Washer (Ø8.2) Nylon Nut (M8 X 1.25p) Bushing Buttonhead Bolt (M8 X 1.25p X 35mm) Nylon Nut (M8 X 1.25p) -
Page 8: Exploded Diagram
CHAPTER 4: E lliptical arts and ssembly uides 4.2 EXPLODED DIAGRAM E1x_081201.indd 6 12/1/08 9:18:20 AM... -
Page 9: Assembly Steps
CHAPTER 4: E lliptical arts and ssembly uides 4.3 ASSEMBLY STEPS STEP 1 STEP 2 Water-holder Bracket Water-holder Bracket Lift up the Main Body at the front end. Ask your assistant to insert the CONSOLE MAST wooden or hard box underneath the Main Body while you lift up the Thread the Console Mast through the Console Mast Boot. Main Body. Feed the cable through the Console Mast. Tape the cable to the top of the Fasten the Front Foot to the Main Body by using two screws (Z10). Console Mast to secure it temporarily. Attach the Console Mast to the Base Frame using two screws (Z03), four washers (Z04) and two nylon nuts (Z07). Ask your assistant to hold the Console Mast while tighten screws. Fix the water-holder bracket to the console mast using 2 bolts and then use #5 L-type wrench to tighten the screws. CONSOLE Connect the cable inside the Console, and unscrew the screws attached the back of the Console. -
Page 10: 4.3 Assembly Steps
CHAPTER 4: E lliptical arts and ssembly uides 4.3 ASSEMBLY STEPS STEP 3 HR HANDGRIPS Plug in the heart rate wires to the wires from the Console Mast. Attach the heart rate handgrips to the Console Mast by using four screws (Z25) and washers (Z24). ACCESSORY TRAY Attach the Accessory Tray to the positioned base of the accessory tray by using two screws (Z22). E1x_081201.indd 8 12/1/08 9:18:27 AM... -
Page 11: 4.3 Assembly Steps
CHAPTER 4: E lliptical arts and ssembly uides 4.3 ASSEMBLY STEPS STEP 4 Attach the Dual-Action handrail (R) and (L) to the Console Mast using screws (Z18), and place the Handlebar Caps around the Handlebars. Fasten the Link Arm (R) and (L) to the Pedal Arms using screws (Z01) and washers (Z02). Attach the Dual-Action handrails to the link arms using bolts (Z06), bushings (Z05), and nylon nuts (Z07). Align the cut-out inside the link arm caps (Z08) with the link arm mounting hole. Apply pressure to the cap until it snaps into place. ASSEMBLY COMPLETE Assembly is complete. Final assembly and optional entertainment shown. E1x_081201.indd 9 12/1/08 9:18:32 AM... -
Page 12: Chapter 5: Overlay Description / Engineering Mode
CHAPTER 5: O verlay escription nGineerinG 5.1 CONSOLE DISPLAY WORKOUT PROFILE WINDOW: During a workout, this window displays shapes, made of triangle columns of lights, which represent the levels of intensity in a workout-in-progress. The height of the furthest column is proportional to the current level of the intensity. Information will cycle every 30 seconds. INSTURCTION CENTER: This window displays step-by-step instructions for setting up a workout. INFORMATIONAL DISPLAY: During a workout, three sets of numbers, including Speed, Time and Distance, display statistics about the progress of the workout. PROGRAM PLUS™ KEYS Press the key to select one of the workouts. The program key with a symbol of plus “+” represents additional workout options. Press this key repeatedly for similar workout options. LEVEL ARROW KEYS During a workout, pressing the UP or DOWN arrow can adjust intensity levels. RIGHT / LEFT ARROW KEYS A pair of RIGHT and LEFT arrows is located on the side of SELECT. Use arrows, when setting up a workout, to change workout parameters displayed on the LCD console, such as length of workout, weight, age, heart rate, and intensity level. In addition, the pair of RIGHT and LEFT arrows is corresponding to the arrows in the LCD display. QUICK START Press QUICK START to begin your workout immediately, without having to select a workout program. RESET PAUSE: If you need to PAUSE your program during a workout, stop pedaling. It will PAUSE your program for 30 seconds. Pressing START will return you to your workout. NOTE: Pause time is only available for ellipticals equipped with the battery. RESET: If you need to RESET the console during your workout, you can do so by holding down the RESET button for three seconds, or until the display resets. E1x_081201.indd 10 12/1/08 9:18:34 AM... -
Page 13: Workout Parameter Prompts
CHAPTER 5: O verlay escription nGineerinG 5.2 WORKOUT PARAMETER PROMPTS This section lists the default value and value range of workout parameters appeared in the PROMPT AREA, located in the bottom of WORKOUT PROFILE WINDOW. Before an exercise session, each parameter prompt will appear here depending on different programs. PROMPT DEFAULT MINIMUM MAXIMUM UNIT TIME minute LEVEL WEIGHT 68 / 150 34 / 75 182 / 400 kg / lbs years old DISTANCE 5 / 3 1 / 1 80 / 50 km / mile CALORIES 5000... -
Page 14: Workout Overviews
CHAPTER 5: O verlay escription nGineerinG 5.3 WORKOUT OVERVIEWS This chart lists the Matrix elliptical trainer’s pre-programmed workouts. PROGRAM DEFAULT PROMPT PROGRAM DESCRIPTION NAME TIME INPUT NAME QUICK START Quick Start is the fastest way to begin exercising and TIME bypasses the setup prompts. After pressing the QUICK GOAL START key, a constant-level workout begins. - Page 15 CHAPTER 5: O verlay escription nGineerinG 5.3 WORKOUT OVERVIEWS OMPT PROGRAM DEFAULT PROMPT DESCRIPTION NPUT NAME TIME INPUT TIME Time, Time Goal sets exercise duration as the workout goal. 20 min GOAL Weight Once the objective is met, the workout automatically goes into a cool-down phase and ends afterward. DISTANCE Distance Goal is designed to build endurance in a Distance,...
-
Page 16: Workout Tips
CHAPTER 5: O verlay escription nGineerinG 5.4 WORKOUT TIPS Matrix Fitness strongly recommends seeing your physician for a complete physical examination before beginning any fitness program. Know your physician-recommended heart rate target zone. If, at any time while exercising, you experiences faintness, dizziness, pain, or shortness of breathe, you must stop immediately. To mount the elliptical trainer, grasp the front stationary handlebars and place your feet on the pedals. When you are comfortably situated, begin pedaling. To dismount the elliptical trainer, stop pedaling, grasp the front stationary handlebars and get off the unit. It is highly recommended that you always incorporate the warm-up and cool-down period into your workout. Warm-up brings the heart rate into the lower end of the target zone and increases respiration and blood flow to working muscles. Cool-down takes time for a user’s heart rate to return to a resting state after vigorous exercise and reduces the amount of lactic acid in muscle tissue. 5.5 WORKOUT SETUP STEPS Different elliptical trainer workouts require different setup procedure. This section provides details for settling up any workout program. Begin to pedal the elliptical trainer. Use the PROGRAM PLUS™ KEYS to enter the program, or use RIGHT / LEFT ARROW keys to scroll to desired program. The program name is displayed in the PROMPT AREA. Use the RIGHT / LEFT ARROW keys to scroll to desired parameter values displayed in the PROMPT AREA. Press the SELECT key to confirm each selection. Follow the steps to set up each workout. NOTE: The PROGRAM PLUS™ KEYS with a symbol of plus “+” have couple of similar workout options included. Press the key repeatedly to select the desired program. Or, press the program key once and use RIGHT / LEFT ARROW keys to scroll to the desired program. - Page 17 CHAPTER 5: O verlay escription nGineerinG 5.5 WORKOUT SETUP STEPS INTERVAL + HILL INTERVAL Repeatedly Press the “INTERVAL+” key to select “HILL INTERVAL”, and then press SELECT. “SELECT LEVEL” using the RIGHT / LEFT ARROW keys, and then press SELECT. “SELECT TIME” using the RIGHT / LEFT ARROW keys, and then press SELECT. “SELECT WEIGHT” using the RIGHT / LEFT ARROW keys, and then press SELECT. Press START to begin the workout. RANDOM HILL Repeatedly Press the “INTERVAL+” key to select “RANDOM HILL”, and then press SELECT. “SELECT TIME” using the RIGHT / LEFT ARROW keys, and then press SELECT. “SELECT WEIGHT” using the RIGHT / LEFT ARROW keys, and then press SELECT. Press START to begin the workout. MULTI FX + CONSTANT WATTS Repeatedly Press the “MULTI FX+” key to select “CONSTANT WATTS”, and then press SELECT. “SELECT WATTS” using the RIGHT / LEFT ARROW keys, and then press SELECT. “SELECT TIME” using the RIGHT / LEFT ARROW keys, and then press SELECT. “SELECT WEIGHT” using the RIGHT / LEFT ARROW keys, and then press SELECT. Press START to begin the workout. RANDOM Repeatedly Press the “MULTI FX+” key to select “RANDOM ”, and then press SELECT. “SELECT LEVEL” using the RIGHT / LEFT ARROW keys, and then press SELECT. “SELECT TIME” using the RIGHT / LEFT ARROW keys, and then press SELECT. “SELECT WEIGHT” using the RIGHT / LEFT ARROW keys, and then press SELECT. Press START to begin the workout. GOAL + TIME GOAL 1) Repeatedly Press the “GOAL+” key to select “TIME GOAL”, and then press SELECT. 2) “SELECT TIME” using the RIGHT / LEFT ARROW keys, and then press SELECT. 3) “SELECT WEIGHT” using the RIGHT / LEFT ARROW keys, and then press SELECT. 4) Press START to begin the workout. DISTANCE GOAL 1) Repeatedly Press the “GOAL+” key to select “DISTANCE GOAL”, and then press SELECT. 2) “SELECT DISTANCE” using the RIGHT / LEFT ARROW keys, and then press SELECT. 3) “SELECT WEIGHT” using the RIGHT / LEFT ARROW keys, and then press SELECT. 4) Press START to begin the workout.
- Page 18 CHAPTER 5: O verlay escription nGineerinG 5.4 WORKOUT SETUP STEPS HEART RATE + TARGET HR / WEIGHT LOSS Repeatedly Press the “HEART RATE+” key to select “TARGET HR” or “WEIGHT LOSS”, and then press SELECT “SELECT AGE” using the RIGHT / LEFT ARROW keys, and then press SELECT. “SELECT HR” using the RIGHT / LEFT ARROW keys, and then press SELECT. “SELECT TIME” using the RIGHT / LEFT ARROW keys, and then press SELECT. “SELECT WEIGHT” using the RIGHT / LEFT ARROW keys, and then press SELECT. Press START to begin the workout. FIT TEST “SELECT GENDER” using the RIGHT / LEFT ARROW keys, and then press SELECT. “SELECT AGE” using the RIGHT / LEFT ARROW keys, and then press SELECT. “SELECT LEVEL” using the RIGHT / LEFT ARROW keys, and then press SELECT. “SELECT WEIGHT” using the RIGHT / LEFT ARROW keys, and then press SELECT. Press START to begin the workout. The tables below list fit test results: FIT TEST’S RESULT FOR MALE Male Estimated VO2 Max (ml/kg/min) Per Age Category Rating Very Poor Poor Fair Good Excellent Superior 15 –...
-
Page 19: Using Fitness Networking
CHAPTER 5: O verlay escription nGineerinG 5.6 USING FITNESS NETWORK The two RJ45 networking ports are equipped in Matrix Elliptical Trainer E1x. These ports allow the bike to be connected to a fitness entertainment system and/or a fitness network, such as FitLinxx®. C-SAFE / CARDIO PORT The ports are located on the back of the console. The C-SAFE port enables the bike to upload user workout statistics to a fitness network database. The CARDIO port is compatible to entertainment protocol such as Cardio Theater® or BroadcastVision™. C-SAFE CARDIO C-SAFE CARDIO E1x_081201.indd 17 12/1/08 9:18:37 AM... -
Page 20: Chapter 6: Manager's Custom Mode
CHAPTER 6: M ’ anaGer ustom 6.1 LIST OF MANAGER’S CUSTOM MODE The Manager’s Custom Mode allow the club owner to customize the elliptical trainer for the club. To enter the Manager’s Custom Mode, press and hold down the “LEVEL ARROW keys“ . Continue to hold down these two keys until the INSTRUCTION CENTER displays “MANAGER MENU”. To scroll through the list of Manager’s Custom Mode, use the “LEFT / RIGHT ARROW keys”, or “LEVEL ARROW keys”. The INSTRUCTION CENTER will display, in turn, each of custom settings. To select a custom mode, press the SELECT key to enter. To change the value of the setting, use the “LEFT / RIGHT ARROW keys”, or “LEVEL ARROW keys”.z To confirm and save the value of the setting, press the QUICK START key. “SETTING SAVED” will appear in the INSTRUCTION CENTER. To exit the setting without saving, press the RESET key within 5 seconds, or if there is no key pressed, the system will resume automatically. LIST OF MANAGER’S CUSTOM MODES: CUSTOM DEFAULT MINIMUM MAXIMUM UNIT STEP DESCRIPTION SETTING Enable fitness club managers to set the program maximum workout duration limits MAXIMUM... - Page 21 CHAPTER 6: M ’ anaGer ustom 6.1 LIST OF MANAGER’S CUSTOM MODE CUSTOM DEFAULT MINIMUM MAXIMUM UNIT STEP DESCRIPTION SETTING Accumulated time is not editable, but only for display. After the machine reaches the ACCUMU- maximum time, it will reset to "0" automati- LATED 65,000 hrs hour cally.
-
Page 22: Chapter 7: Maintenance
CHAPTER 7: M aintenance MAINTENANCE Matrix Elliptical Trainer E1x is built for commercial environment 12 hours a day and seven days a week. However, as a club manager or owner, you are responsible for cleaning and maintaining the unit’s integrity. If you fail to maintain the elliptical trainer as described below, it could affect or void the Matrix limited warranty. NOTE: Safety of the equipment can be maintained only if the equipment is examined regularly for damage or wear. Keep the equipment out of use until defective parts are repaired or replaced. Pay special attention to parts that are subject to wear, such as display console, console mounting screws, handrails, link arms, pedal arms and pedals. 7.1 DAILY INSPECTION Look and listen for loose fasteners, unusual noises, and any other indications that the equipment may be in need of service. If you notice any of these, obtain service. 7.2 DAILY MAINTENANCE Matrix Fitness recommends the E1x be cleaned before and after each workout. The following daily maintenance tips will keep your unit operating at peak performance: Use a damp, soft cloth with water or mild liquid detergent to clean all exposed surfaces. DO NOT use ammonia, chlorine, or acid-based cleaners. Keep the display console free of fingerprints and salt build-up caused by sweat. Frequently vacuum the floor underneath the unit to prevent the accumulation of dust and dirt, which can affect the smooth operation of the unit. 7.3 MONTHLY MAINTENANCE Perform the following services each month, or as needed: Check that the console, handrails, link arms, pedal arms and pedals are secure. 7.4 RECYCLING THE BATTERY When the Matrix elliptical trainer is about to be discarded at the end of its useful life, the rechargeable battery must first be removed and recycled. If the elliptical trainer is being equipped with the battery. To access the battery, unscrew the cover on the back of the console. To remove the battery, disconnect the cable. E1x_081201.indd 20 12/1/08 9:18:38 AM... -
Page 23: Chapter 8: Product Specifications
Yes, equipped in the dual action arms Remote Operation Keys Auto-positioning pedals with front safety fences Pedals Integrated Reading Rack Accessory Tray ENTERTAINMENT SOLUTIONS Matrix ® LCD TV Mount CSAFE-Ready, Finlinxx™ certified Networking Capabilities *Product specifications are subject to change without notice. E1x_081201.indd 21... - Page 24 E1x_081201.indd 22 12/1/08 9:18:39 AM...
- Page 25 M AT r i x F iTn ess sysT e Ms | 1 610 L An dM Ark d ri v e CoT TAg e grov e w i 53527 UsA To l l Fre e m a t r i x f i t n e ss . co m Fa x 8 6 6 .693.48 63 60 8 .
