Summary of Contents for Matrix PERFORMANCE CLIMBMILL

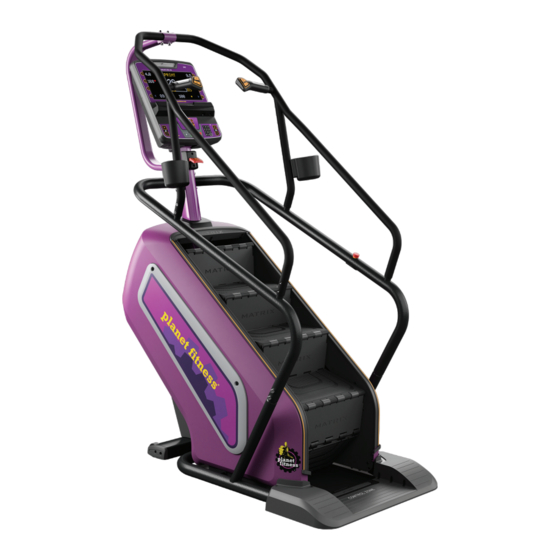

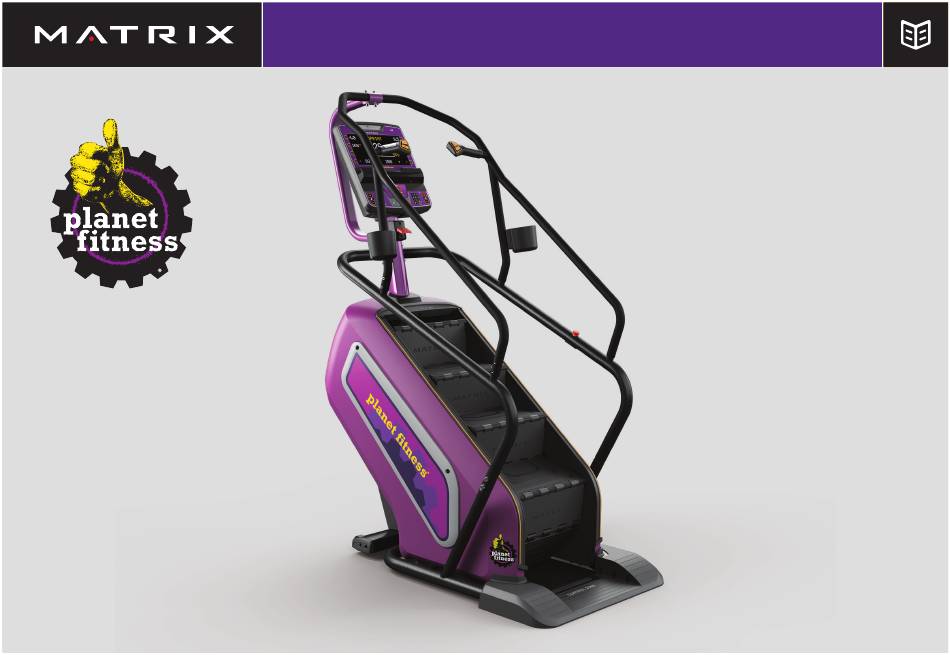

- Page 1 PERFORMANCE CLIMBMILL...
-
Page 2: Important Precautions
IMPORTANT PRECAUTIONS SAVE THESE INSTRUCTIONS When using Matrix exercise equipment, basic precautions should always be followed, including the following: Read all instructions before using this equipment. It is the responsibility of the owner to ensure that all users of this equipment are adequately informed of all warnings and precautions. -
Page 3: Power Requirements
If the user does not follow these grounding instructions, comply may void the warranty. the user could void the Matrix limited warranty. 2. It is essential that this equipment is used only indoors in a climate controlled room. If... -
Page 4: Tools Required
ENGLISH ASSEMBLY UNPACKING TOOLS REQUIRED: Unpack the equipment where you will be using it. Place the carton F 6mm Allen Wrench on a level flat surface. It is recommended that you place a protective F 5mm Allen Wrench covering on your floor. Never open box when it is on its side. IMPORTANT NOTES PARTS INCLUDED: •... - Page 5 ENGLISH ASSEMBLY Hardware Bolt (16 mm) Hardware Curved Washer Bolt (20 mm) Bolt Flat Washer Washer Bolt (35 mm) Torque Value Torque Value 24 Nm / 17.7 ft-lb 24 Nm / 17.7 ft-lb Hardware Bolt (20mm) Bolt (10mm) Torque Value H - 24 Nm / 17.7 ft-lb I - 9.8 Nm / 7.2 ft-lb...
-
Page 6: Before You Begin
ENGLISH ASSEMBLY BEFORE YOU BEGIN PERFORMANCE Levelers LOCATION OF THE UNIT 1. Connect the wires from the Place the unit on a level and stable surface away from direct sunlight. The intense UV light can frame to the Base Step. cause discoloration on the plastics. -
Page 7: Proper Usage
ENGLISH BEFORE YOU BEGIN PROPER USAGE MOUNTING THE CLIMBMILL Stand directly behind the ClimbMill. Grasp either the upper or lower handle bars and step onto the ClimbMill until you are within comfortable reach of the console, emergency stop lever, and remote handlebar controls. There are two emergency stop buttons the ClimbMill. -
Page 8: Maintenance
5. Ensure that any person(s) making adjustments or performing maintenance or heart rate reading is intended only as an exercise aid in determining repair of any kind is qualified to do so. MATRIX dealers will provide service heart rate trends in general. Please consult your physician. -
Page 9: Product Specifications
MAINTENANCE SCHEDULE ACTION FREQUENCY Unplug the unit. Clean entire frame and shrouds using water and a mild soap or other Matrix approved solution DAILY (cleaning agents should be alcohol and ammonia free). Check step motion and stability to ensure the ClimbMill does not rock or wobble. - Page 10 PREMIUM LED CONSOLE DESCRIPTION The Matrix machine is inspected before it is packaged. Carefully unpack the unit and dispose of the box material. Note: There is a thin protective sheet of clear plastic on the overlay of the console that should be removed before use.
-
Page 11: Frame Serial Number
ENGLISH SERIAL NUMBERS Before proceeding, find the serial numbers located on barcode stickers and enter them in the spaces provided below. Use the information below when calling for service. CONSOLE SERIAL NUMBER FRAME SERIAL NUMBER (Located on back of the console) (Located on front lower frame) ADDITIONAL NOTES This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. - Page 12 © 2021 Johnson Health Tech PERFORMANCE CLIMBMILL Rev 1.4 PF...
