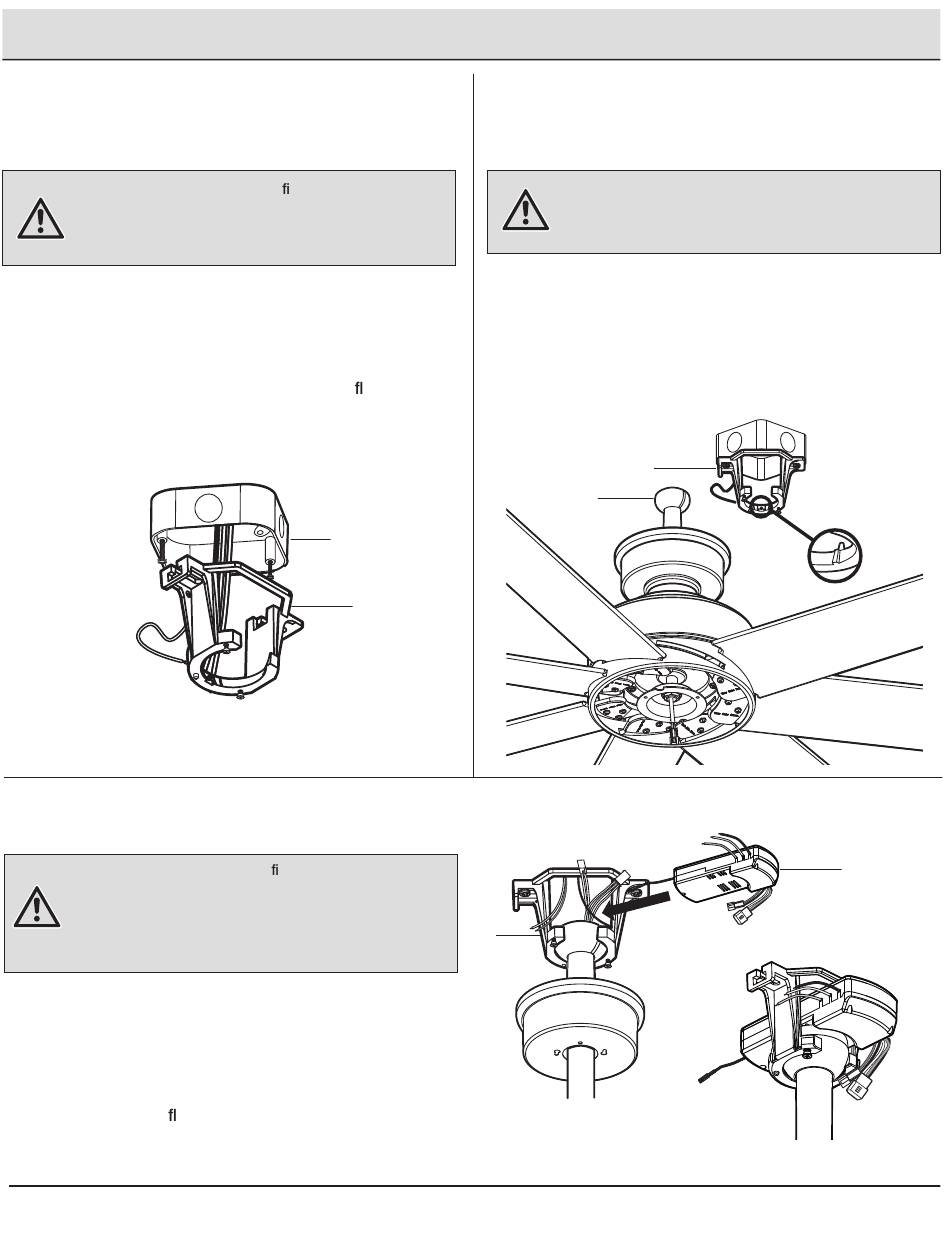

Assembly — Hanging the Fan
5
Installing the mounting bracket
to the electrical box
WARNING: To reduce the risk of re, electric shock or
other personal injury, mount the fan only to an outlet box or
supporting system marked acceptable for fan support and
use the mounting screws provided with the outlet box.
□
Pass the 120-volt supply wires through the center
hole in the mounting bracket (A).
□
Attach the mounting bracket (A) on the outlet box by
sliding the mounting bracket (A) over the screws
provided with the outlet box. Note that the at side of
the mounting bracket (A) is toward the outlet box.
□
Securely tighten the two mounting screws.
7
Installing the receiver
WARNING: To reduce the risk of re or electric shock,
remember to disconnect power. The electrical wiring must meet
all local and national electrical code requirements. The electrical
source and fan must be 120 volt, 60Hz. Do not use this product in
conjunction with any variable wall control. Incorrect wire
connection can damage this receiver.
□
Position the house supply black wire to one side of
the mounting bracket (A), and position the house
supply white and green wires to the opposite side.
□
Push the yellow antenna wire through the mounting
bracket (A) and insert the narrow end of the receiver
(L) (as shown, at side towards the ceiling) into the
slide-on mounting bracket (A) until it rests on top of
the ball/downrod assembly.
6
□
Outlet Box
A
A
9
Hanging the fan to the mounting
bracket
WARNING: The tab in the ring must rest in the groove of
the hanger ball/downrod assembly (D). Failure to properly
seat the tab in the groove could cause damage to the wiring.
Carefully lift the fan motor assembly (F) up to the
mounting bracket (A) and seat the hanger
ball/downrod assembly (D) in the mounting bracket
(A) socket. Make sure the tab on the mounting
bracket (A) socket is properly seated in the groove in
the hanger ball/downrod assembly (D). This will help
to balance the ceiling fan.
A
D
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
F
L
View after installation
