Assembly (continued)
3

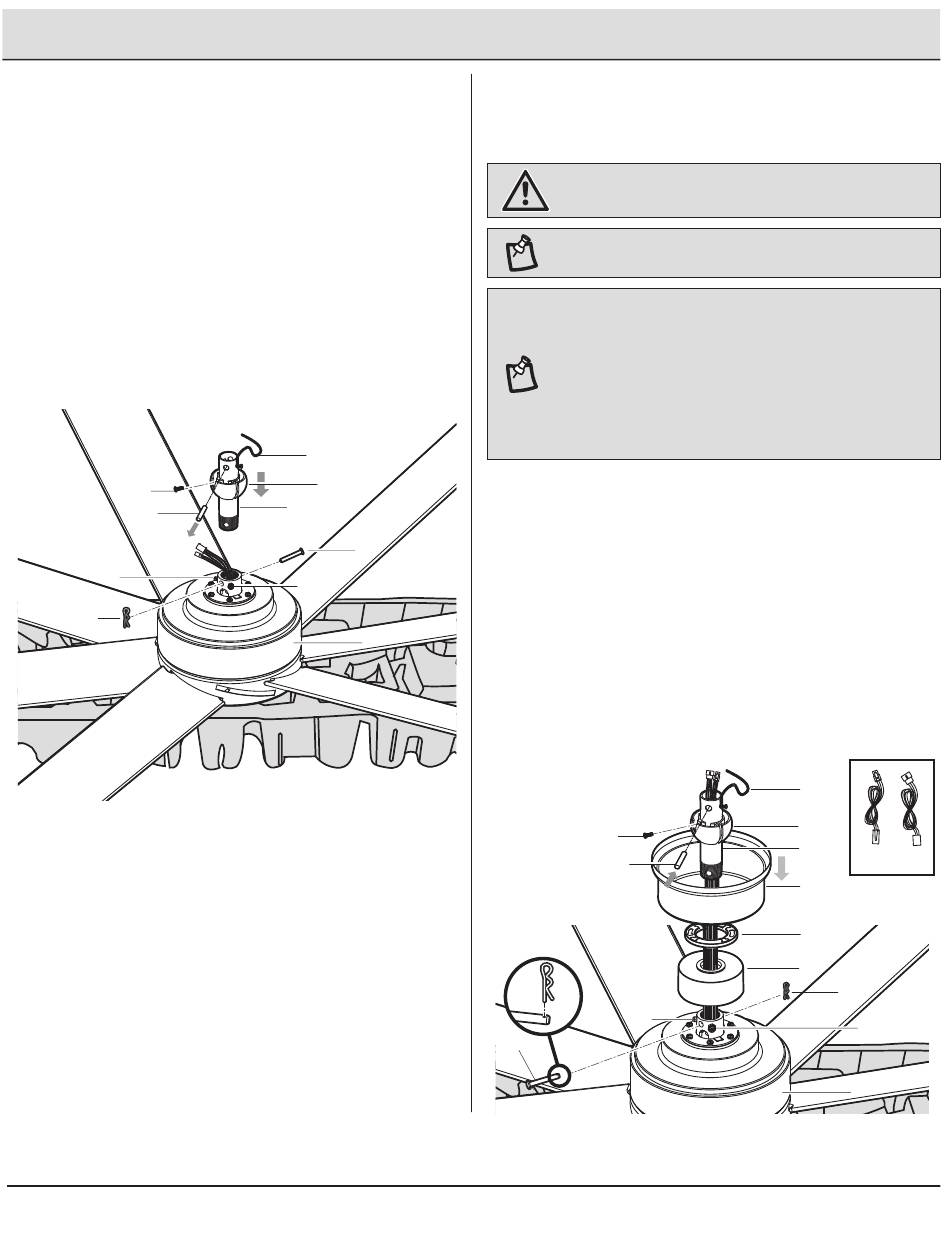

Preparing the motor
□
Flip the motor. Remove the cotter pin (FF) and clevis pin
(GG), and loosen the two collar set screws (HH) from the
motor collar.
□
Take out the set screw (II) located in the hanger ball (JJ),
lower the hanger ball (JJ) and remove the cross pin (KK).
Remove the hanger ball (JJ) from the hanger ball/downrod
assembly (D).
□ Remove the ground lead (LL) from the downrod assembly (D).
II
KK
HH
FF
LL
JJ
D
GG
HH
F
4
Assembling the fan
WARNING: Failure to properly install the cotter pin (FF)
could result in the fan loosening and possibly falling.
NOTE: DO NOT install extensions cords (CC and DD) when
using included downrod.
NOTE: If a longer downrod (not included) is needed, take out
the screw located in the hanger ball (JJ), lower the hanger ball
(JJ) and remove the pin (KK). Remove all three pieces from the
downrod and assemble them onto the new longer downrod
before proceeding to the downrod installation. Be sure to snap
together the 2-pin and 3-pin connectors, the two male plugs
from the fan and female plugs from the extension cords (CC
and DD).
□
Carefully feed the motor wires up through the downrod
(MM). Thread the downrod (MM) into the collar.
□
Align the holes and replace the clevis pin (GG) and cotter
pin (FF). Tighten the two collar setscrews (HH).
□
Slip the coupling cover (E), the canopy bottom cover (C),
and the canopy (B) onto the downrod (MM).
□
Carefully reinstall the hanger ball (JJ) and the ground lead
(LL) onto the downrod (MM). Being sure that the cross pin
(KK) is in the correct position, the set screw (II) is tightened
and wires are not twisted.
II
KK
HH
GG
8
Please contact 1-800-986-3460 for further assistance.
LL
JJ
MM
B
C
E
FF
HH
F
