INDOOR/COVERED OUTDOOR CEILING FAN
We appreciate the trust and con dence you have placed in Home Decorators Collection through the purchase of this ceiling fan.
We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for
your home improvement needs. Thank you for choosing Home Decorators Collection!
USE AND CARE GUIDE

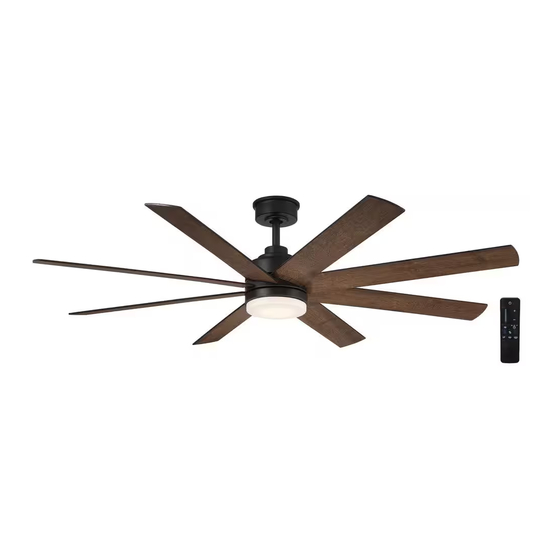

62 IN. CELENE II
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
9 a.m. - 7 p.m., EST, Monday - Friday.
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Visual instruction of how to install this fan:
Visit www.homedepot.com and enter either the Item or Model number to nd
this fan and click the link of visual instruction in the product overview section.
Item #1010 461 019
1010 461 020
1010 461 022
1010 461 023
1010 461 024
1010 461 743
THANK YOU
Model #YG908J-MBK+V8
YG908J-MWH
YG908J-MWH+WWO
YG908J-CB
YG908J-MBK
YG908J-BN
Advertisement
Table of Contents
Related Manuals for Home Decorators Collection CELENE II
Summary of Contents for Home Decorators Collection CELENE II
- Page 1 THANK YOU We appreciate the trust and con dence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ........Assembly . -
Page 3: Warranty
Warranty The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period of lifetime after the date of purchase by the original purchaser. The manufacturer warrants the light kit (excluding any glass), to be free from defects in workmanship and material present at time of shipment from the factory for a period of ve years after the date of purchase by the original purchaser. - Page 4 Pre-Installation (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Plastic wire nut 1.5V AAA battery 2-pin extension cord (only for use when installing longer downrod) 3-pin extension cord (only for use when installing longer downrod)
- Page 5 Pre-Installation (continued) PACKAGE CONTENTS Quantity Part Description Quantity Part Description Mounting bracket (preassembled) Blade support plate Canopy Light kit mounting plate Canopy bottom cover (preassembled) 20 watt LED light kit Hanger ball/downrod assembly Plastic shade Coupling cover Receiver Fan motor assembly Remote control Blade HOMEDEPOT.COM/HOMEDECORATORS...
-
Page 6: Installation
Installation MOUNTING OPTIONS NOTE: You may need a longer downrod to maintain proper WARNING: To reduce the risk of re, electric shock, or blade clearance when installing on a steep, sloped ceiling. personal injury, mount the fan to an outlet box marked The maximum angle allowable is 18°... -
Page 7: Assembly
Assembly Preparing the canopy Attaching the fan blades □ Remove the canopy bottom cover (C) from the canopy (B) □ Begin by using the original product packaging to create a by turning the canopy bottom cover (C) counterclockwise. base to hold the fan. Place the fan motor (F) with the bottom facing up. - Page 8 Assembly (continued) Preparing the motor Assembling the fan □ Flip the motor. Remove the cotter pin (FF) and clevis pin WARNING: Failure to properly install the cotter pin (FF) (GG), and loosen the two collar set screws (HH) from the could result in the fan loosening and possibly falling.
- Page 9 Assembly — Hanging the Fan Hanging the fan to the mounting Installing the mounting bracket bracket to the electrical box WARNING: To reduce the risk of re, electric shock or WARNING: The tab in the ring must rest in the groove of other personal injury, mount the fan only to an outlet box or the hanger ball/downrod assembly (D).
- Page 10 Assembly — Hanging the Fan (continued) Making the electrical connections Ground White Black conductor WARNING: Check to see that all connections are tight, including ground, and that no bare wire is visible at the wire nuts, except for the ground wire. Outlet Box CAUTION: To reduce the risk of electric shock, this fan must be installed with an isolating wall control/switch.
- Page 11 Assembly — Hanging the Fan (continued) Installing the canopy WARNING: Make sure the tab on the mounting bracket (A) Outlet Box properly sits in the groove in the hanger ball/downrod assembly (D) before attaching the canopy (B) to the mounting bracket (A) by turning the canopy (B) until it drops into place.

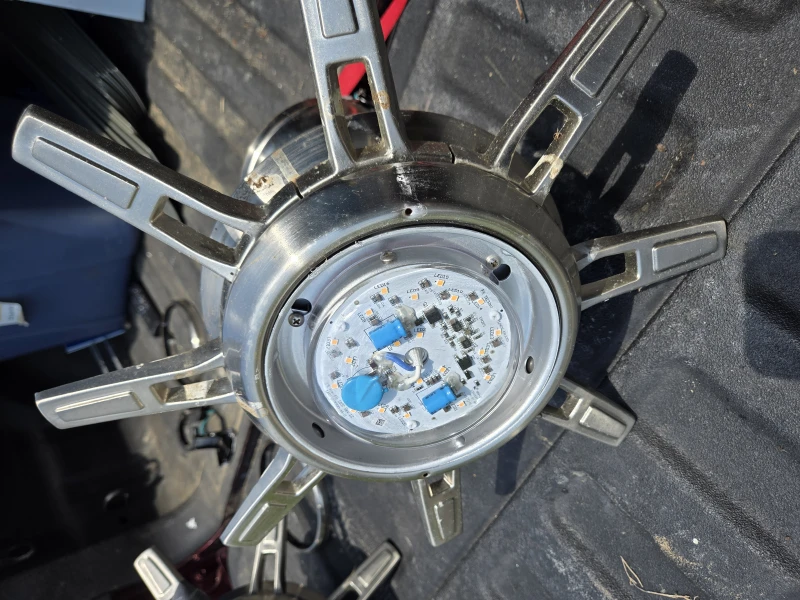

- Page 12 Assembly — Installing the Light Kit Attaching the light kit mounting Attaching the LED light kit plate to the mounting ring and plastic shade □ Remove one of the three light kit mounting plate CAUTION: Before starting installation, disconnect the screws (NN) from the mounting ring (OO) and loosen power by turning off the circuit breaker or removing the fuse the other two screws.
-
Page 13: Operation
Operation PREPARING THE TRANSMITTER NOTE: Batteries will weaken with age and should be replaced before leaking takes place as this will damage the remote control. Dispose of used batteries properly and keep them out of the reach of children. □ Remove the battery cover by pressing rmly on the arrow and sliding the cover off. - Page 14 Operation (continued) To clear all other remotes from your fan’s memory, use the steps below: □ Ensure AC power to the fan is OFF to begin the learning process. □ Slide the dip switch in the battery compartment to the "0" position.
- Page 15 Operation (continued) OPERATING YOUR FAN AND REMOTE CONTROL NOTE: The fan will store the last used speed setting for the next time it is turned on. NOTE: You must turn the fan on prior to using the speed or time functions. NOTE: On each start up of your ceiling fan, the fan blades will oscillate back and forth.
- Page 16 Operation (continued) Timer □ Pressing the timer button will automatically turn fan off after 2, 4, or 8 hours. When you activate the timer mode, the LED to the left of the time above the clock will illuminate. Disables timer 5.
-
Page 17: Care And Cleaning
Operation (continued) WARM/COOL WEATHER OPERATING INSTRUCTIONS Speed settings for warm or cool weather depend on factors such as the room size, ceiling height, numbers of fans. NOTE: The fan reverse button must be pressed while the fan is running. Warm weather - (Counterclockwise Direction) A downward air ow creates a cooling effect. -
Page 18: Troubleshooting
Troubleshooting Problem Solution Check the main and branch circuit fuses or breakers. Check the line wire connections to the fan and switch wire connections in the switch housing. Check to make sure the frequency switches from the remote control and receiver are set to the same The fan will not start. - Page 19 - Consult the dealer or an experienced radio/TV technician for help. Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m.- 6 p.m., EST, Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS...
