Item #1001 693 792
#1001 693 790
Model #AM443-BN
#AM443-GLBK
USE AND CARE GUIDE

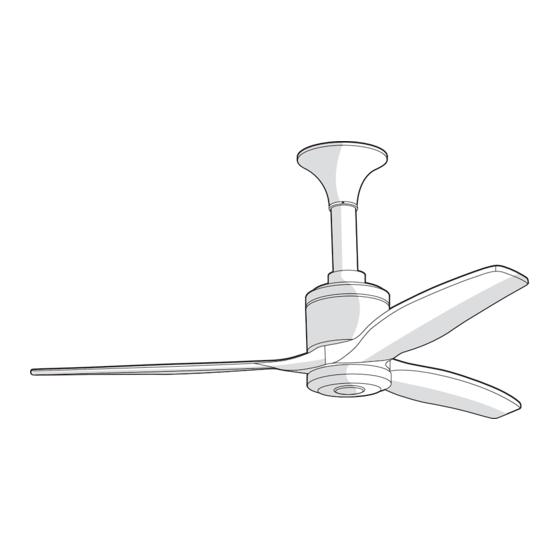

CHAPLIN 52 IN. CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
THANK YOU

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CHAPLIN AM443-BN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Home Decorators Collection CHAPLIN AM443-BN

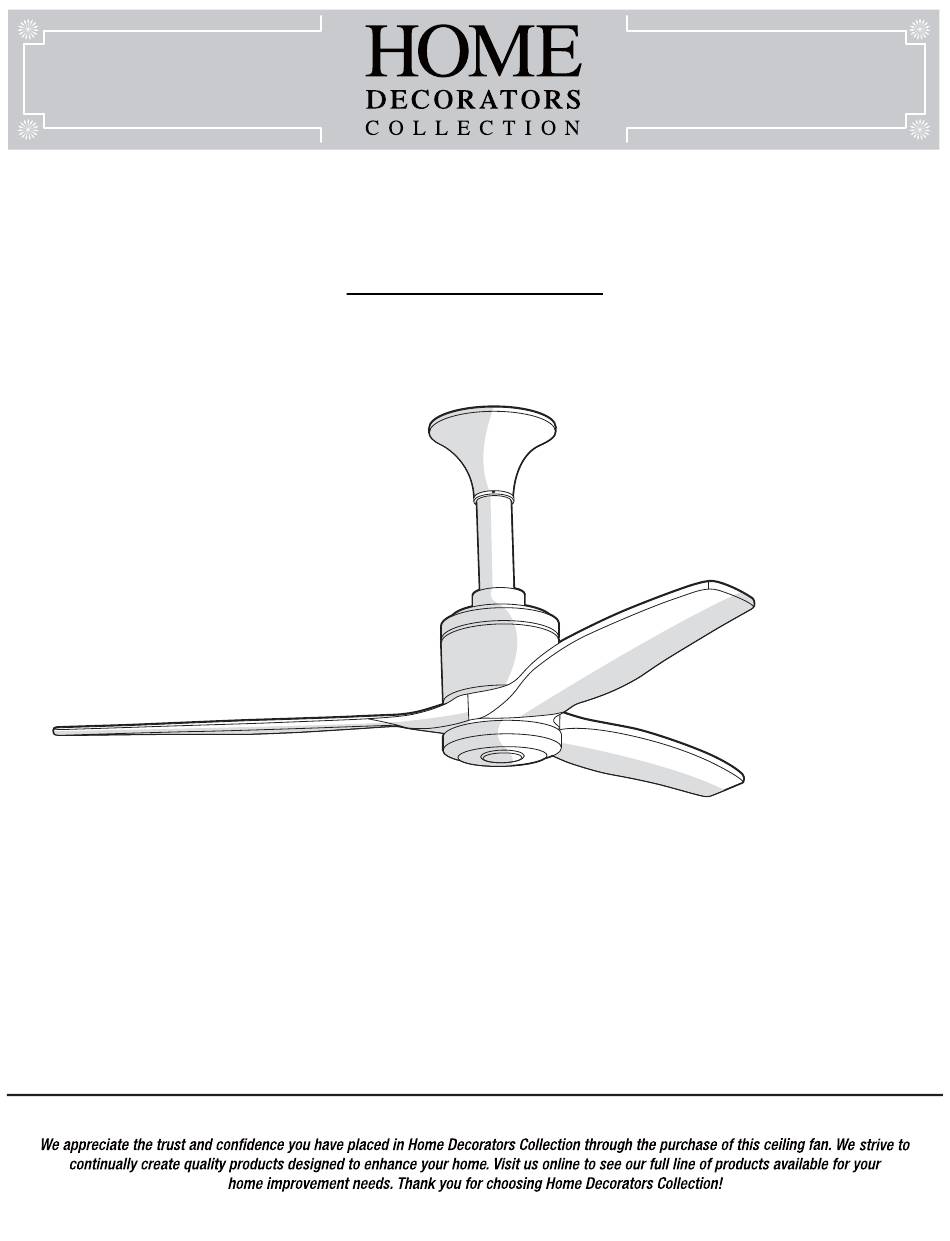

  • Page 1 USE AND CARE GUIDE CHAPLIN 52 IN. CEILING FAN Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS...
  • Page 2: Table Of Contents

    Table of Contents Table of Contents ............Operation ..............Preparing the Transmitter ............Safety Information ............Learning Process ..............Operating Your Fan and Remote Control ....... Warranty ................. Warm/Cool Weather Operating Instructions ......Pre-installation .............. Care and Cleaning ............Specifications ................Tools Required .................
  • Page 3: Safety Information

    Safety Information To reduce the risk of electric shock, ensure electricity has However, there is no guarantee that interference will not occur been turned off at the circuit breaker or fuse box before in a particular installation. If this equipment does cause harmful beginning.
  • Page 4: Warranty

    Warranty We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period of lifetime after the date of purchase by the original purchaser. We also warrant that all other fan parts, excluding any glass or acrylic blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the date of purchase by the original purchaser.
  • Page 5: Hardware Included

    Pre-Installation (continued) HARDWARE INCLUDED HARDWARE INCLUDED NOTE: Hardware shown to actual size unless noted otherwise in the table below. Part Part Description Description Quantity Quantity Plastic wire nut Clevis pin (preassembled) Cotter pin (preassembled) Cross pin (preassembled) Setscrew (preassembled) Collar setscrew (preassembled) Blade screw with lock washer and metal washer Mounting plate screw Decorative cover mounting screw (preassembled)
  • Page 6: Package Contents

    Pre-Installation (continued) PACKAGE CONTENTS PACKAGE CONTENTS Part Part Description Description Quantity Quantity Part Part Description Description Quantity Quantity Mounting bracket Fan motor assembly Hanger ball/downrod assembly Blade Canopy Mounting plate Decorative downrod ring Decorative cover Decorative downrod sleeve Remote control Coupling cover...
  • Page 7: Installation

    Installation MOUNTING OPTIONS MOUNTING OPTIONS WARNING: To reduce the risk of fire, electric shock, or NOTE: You may need a longer downrod to maintain proper personal injury, mount the fan to an outlet box marked blade clearance when installing on a steep, sloped ceiling. acceptable for fan support using the screws provided with the The maximum angle allowable is 18°...
  • Page 8: Assembly

    Assembly Preparing the motor Assembling the fan □ Remove the cotter pin (CC) and clevis pin (BB), and WARNING: Failure to properly install the cotter pin (DD) loosen the two collar setscrews (FF) from the motor could result in the fan loosening and possibly falling. collar.
  • Page 9: Hanging The Fan

    Assembly — Hanging the Fan Hanging the fan to the mounting Installing the mounting bracket bracket to the electrical box WARNING: To reduce the risk of fire, electric shock or WARNING: The tab in the ring must rest in the groove of other personal injury, mount the fan only to an outlet box or the hanger ball/downrod assembly (B).
  • Page 10 Assembly — Hanging the Fan (continued) Making the electrical connections Ground Black White WARNING: To avoid possible electrical shock, be sure conductor electricity is turned off at the main fuse box before wiring. WARNING: Check to see that all connections are tight, including ground, and that no bare wire is visible at the wire nuts (except for the ground wire).
  • Page 11 Assembly — Hanging the Fan (continued) Installing the canopy WARNING: Make sure the tab on the mounting bracket (A) properly sits in the groove in the hanger ball/downrod assembly (B) before attaching the canopy (C) to the mounting bracket (A) by turning the canopy (C) until it drops into place. □...
  • Page 12: Attaching The Fan Blades

    Assembly — Attaching the Fan Blades Fastening the blade Removing the rubber assemblies to the motor packing mounts □ The fan motor assembly (G) is shipped with rubber WARNING: packing mounts (QQ) to prevent movement during To reduce the risk of personal injury, do not transportation.
  • Page 13: Installing The Decorative Cover

    Assembly — Installing the Decorative Cover Attaching the mounting Attaching the decorative cover plate to the mounting ring □ Remove one of the three mounting plate screws (II) CAUTION: Before starting installation, disconnect the from the mounting ring (RR) and loosen the other two power by turning off the circuit breaker or removing the fuse screws.
  • Page 14: Operation

    Operation PREPARING THE TRANSMITTER NOTE: Batteries will weaken with age and should be replaced before leaking takes place as this will damage the remote control. Dispose of used batteries properly and keep them out of the reach of children. NOTE: The switch marked ON/DIM controls the dimming function of the lights.
  • Page 15: Operating Your Fan And Remote Control

    Operation (continued) OPERATING YOUR FAN AND REMOTE CONTROL NOTE: The fan will store the last used speed setting for the next time it is turned on. NOTE: You must turn the fan on prior to using the speed or time functions. button.
  • Page 16: Warm/Cool Weather Operating Instructions

    Operation (continued) Timer □ Pressing the timer buttons will automatically turn fan and light (if light is on) off after 2, 4, or 8 hours. When you activate the timer mode, the LED to the left of the time above the clock will illuminate. Disables timer Fan reverse button (Must be pushed when the fan is in operation) □...
  • Page 17: Care And Cleaning

    Care and Cleaning Do Do Do not Do not □ □ Check the support connections, brackets, and blade Use water when cleaning. Water could damage the motor, attachments twice a year. Make sure they are secure. or the wood, or possibly cause an electrical shock. Because of the fan’s natural movement, some □...
  • Page 18 Troubleshooting (continued) Problem Problem Solution Solution □ Do not connect the fan with wall mounted variable speed control(s). The remote control is not working. □ Make sure the frequency switches are set correctly. □ Verify that all blades and blade bracket screws are secure (most fan wobble problems are caused by loose parts).
  • Page 19: Service Parts

    Service Parts Part Part Description Description Part Part Description Description Mounting bracket Plastic wire nut Hanger ball/downrod assembly Clevis pin (preassembled) Canopy Cotter pin (preassembled) Decorative downrod ring Cross pin (preassembled) Decorative downrod sleeve Setscrew (preassembled) Coupling cover Collar setscrew (preassembled) Fan motor assembly Blade screw with lock washer and metal washer Blade...
  • Page 20 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use. AM443001-A...
