Item #1004 589 999, 1004 590 018,
1004 589 960, 1004 589 953
Model #51820, 51821, 51822, 51824
UL Model #52-BENT
USE AND CARE GUIDE

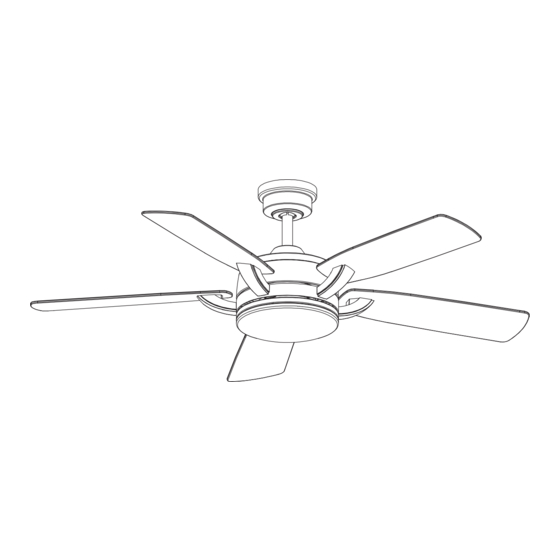

COLEMONT 52-INCH CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday.
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
To view an instructional video on how to install this product:
1. Go to www.homedepot.com and enter either the Item or Model number, found in the top
right corner of the cover of this instruction manual, in the search eld.
2. Click on your product from the list of search results and click on the video link in the
"Product Overview" section.
THANK YOU
We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive
to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators Collection!
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Home Decorators Collection COLEMONT 51820
Summary of Contents for Home Decorators Collection COLEMONT 51820
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ..............2 Assembly ................7 Safety Information ............... 2 Operation ................13 Warranty ................3 Care and Cleaning ............. 14 Pre-Installation ..............3 Troubleshooting ..............14 Installation ................6 Safety Information READ AND SAVE THESE INSTRUCTIONS. WARNING: To reduce the risk of personal injury, do not bend the blade brackets (also referred to as flanges) during assembly or after installation. -
Page 3: Warranty
A certain amount of “wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. Home Decorators Collection hereby disclaims any and all warranties, including but not limited to those of merchantability and fitness for a particular purpose to the extent permitted by law. - Page 4 Pre-Installation (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity Blade attachment screws Plastic wire connecting nut Blade arm hardware (screw and lockwasher) Hanger pin Clip...
- Page 5 Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Part Description Quantity Slide-on mounting bracket Light kit pan (inside canopy) LED light kit assembly Ball/downrod assembly Shatter resistant bowl Canopy with canopy ring attached 3-pin extension wire Decorative motor collar cover 2-pin extension wire Fan motor assembly Receiver Blade...
-
Page 6: Installation
Installation MOUNTING OPTIONS WARNING: To reduce the risk of fire, electric shock or NOTE: You may need a longer downrod to maintain proper blade clearance when installing on a steep, sloped personal injury, mount to outlet box marked “Acceptable ceiling. The maximum angle allowable is 30° away from for fan support of 35 lbs. -
Page 7: Assembly
Assembly - Standard Ceiling Mount Preparing for mounting Routing the wires □ Remove the magnetic canopy bottom cover (FF) from the NOTE: The fan comes with 12 in. lead wires for use with the canopy (C) by pulling it off. provided 6 in. - Page 8 Assembly - Hanging the Fan Attaching the fan to the electrical box Hanging the fan WARNING: To reduce the risk of fire, electric shock or personal WARNING: The tab in the ring at the bottom of the mounting injury, mount to outlet box marked “Acceptable for fan support bracket must rest in the groove of the hanger ball.
- Page 9 Assembly - Hanging the Fan Setting the code on the remote Installing the receiver control and receiver WARNING: To reduce the risk of fire or electric shock, NOTE: The frequencies on your receiver and hand unit have remember to disconnect power. The electrical wiring must meet all local and national electrical code requirements.
- Page 10 Assembly - Hanging the Fan (continued) Wiring the receiver to the household Wiring the fan to the receiver wiring WARNING: To avoid possible electrical shock, turn the NOTE: The fan comes with 12 in. lead wires for use with the electricity off at the main fuse box before wiring.
- Page 11 Assembly - Hanging the Fan (continued) Mounting the fan-motor assembly (standard mount) WARNING: When using the standard ball/downrod mounting, the tab in the ring at the bottom of the mounting bracket must rest in the groove of the hanger ball. Failure to properly seat the tab in the groove could cause damage to the wiring.
- Page 12 Assembly - Attaching the Light Kit Installing the light kit pan □ Remove one screw (PP) from the black bracket below the fan motor assembly (E), and loosen but do not remove the other two screws. □ Push the light kit pan (H) up to the fan motor assembly (E) so that the two loosened screw heads fit into the keyhole slots.
-
Page 13: Operation
Operating Your Fan and Remote Control Remote Control - Your fan is equipped with a remote control to operate the speed and lights of your new ceiling fan. Speed setting for warm or cool weather depends on factors such as the room size, ceiling height, number of fans and so on. -
Page 14: Care And Cleaning
Care and Cleaning WARNING: Make sure the power is off before cleaning your fan. □ Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling. □... - Page 15 Questions, problems, missing parts? Before returning to the store, call Home Depot Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday. 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use.
