Item #731 160
Model #YG380H-GLWH

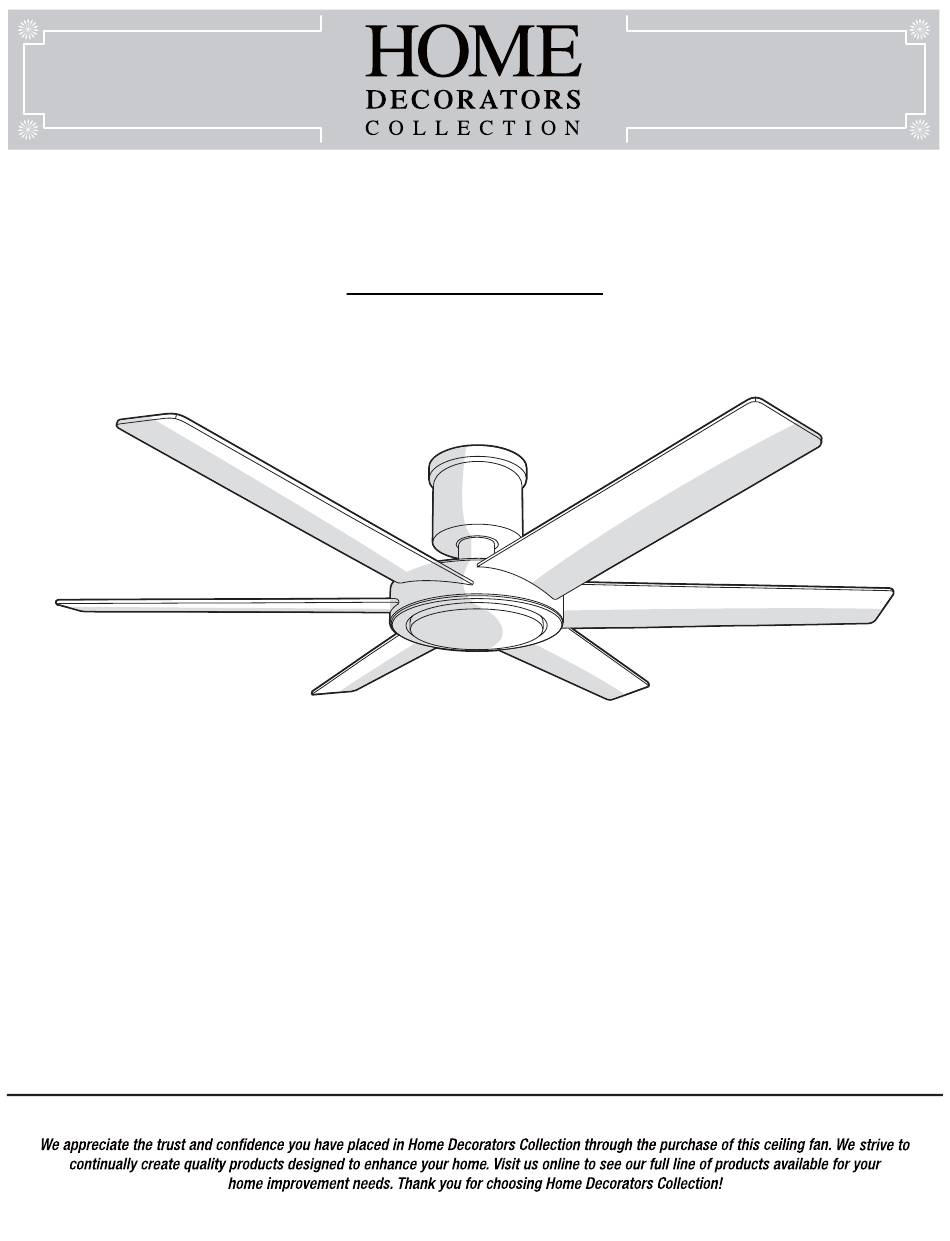

USE AND CARE GUIDE
CLERMONT 52 IN. CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
THANK YOU

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLERMONT and is the answer not in the manual?

Questions and answers

Summary of Contents for Home Decorators Collection CLERMONT

  • Page 1 Item #731 160 Model #YG380H-GLWH USE AND CARE GUIDE CLERMONT 52 IN. CEILING FAN Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS...
  • Page 2: Table Of Contents

    Table of Contents Table of Contents ............Operation ..............Setting the Code on the Transmitter ........Safety Information ............Learning Process ..............Operating Your Fan and Remote Control ....... Warranty ................. Reverse Switch Operating Instructions ........Pre-installation .............. Care and Cleaning ............Specifications ................
  • Page 3: Safety Information

    Safety Information To reduce the risk of electric shock, ensure electricity has However, there is no guarantee that interference will not occur been turned off at the circuit breaker or fuse box before in a particular installation. If this equipment does cause harmful beginning.
  • Page 4: Warranty

    Warranty We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period of lifetime after the date of purchase by the original purchaser. We also warrant that all other fan parts, excluding any glass or acrylic blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the date of purchase by the original purchaser.
  • Page 5: Hardware Included

    Pre-Installation (continued) HARDWARE INCLUDED HARDWARE INCLUDED NOTE: Hardware shown to actual size unless noted otherwise in the table below. Part Part Description Description Quantity Quantity Plastic wire nut Motor mounting screws (not to scale) Blade attachment screw and fiber washer (not to scale) Flywheel assembly mounting screw Light kit mounting plate screw (preassembled) Light kit mounting screw (preassembled)
  • Page 6: Package Contents

    Pre-Installation (continued) PACKAGE CONTENTS PACKAGE CONTENTS Part Part Description Description Quantity Quantity Part Part Description Description Quantity Quantity Mounting bracket (preassembled) Light kit mounting plate Fan motor assembly 18 watt LED Light kit Fan housing Glass shade Blade Remote control Flywheel...
  • Page 7: Installation

    Installation MOUNTING OPTIONS MOUNTING OPTIONS WARNING: To reduce the risk of fire, electric shock, or personal injury, mount the fan to an outlet box marked acceptable for fan support using the screws provided with the outlet box. An outlet box commonly used for the support of lighting fixtures may not be acceptable for fan support and may need to be replaced.
  • Page 8: Assembly

    Assembly — Hanging the Fan Attaching the mounting bracket Removing the mounting bracket to the electrical box from the fan □ Remove the mounting bracket (A) from the fan motor WARNING: To reduce the risk of fire, electric shock or assembly (B).
  • Page 9 Assembly — Hanging the Fan (continued) Making the electrical connections Ground Black White WARNING: To avoid possible electrical shock, be sure conductor electricity is turned off at the main fuse box before wiring. WARNING: Check to see that all connections are tight, including ground, and that no bare wire is visible at the wire nuts (except for the ground wire).
  • Page 10 Assembly — Hanging the Fan (continued) Finishing the fan installation □ Loosen two of the four motor mounting screws (BB) from the mounting bracket (A), and remove the other two screws (BB). □ Remove the fan motor assembly (B) from the mounting bracket (A) hook, and engage the key holes with the two motor mounting screws (BB) previously loosened, and tighten all four motor mounting screws...
  • Page 11: Attaching The Fan Blades

    Assembly — Attaching the Fan Blades Attaching the fan blades Fastening the flywheel to the flywheel assemblies to the fan WARNING: WARNING: To reduce the risk of personal injury, do not To reduce the risk of personal injury, do not bend the blades (C) while installing, balancing the blades (C), bend the blades (C) while installing, balancing the blades (C), or cleaning the fan.
  • Page 12: Installing The Light Kit

    Assembly — Installing the Light Kit Attaching the light kit mounting Attaching the LED light kit plate to the mounting ring and glass shade □ Remove one of the three light kit mounting plate CAUTION: Before starting installation, disconnect the screws (EE) from the mounting ring (QQ) and loosen power by turning off the circuit breaker or removing the fuse the other two screws.
  • Page 13: Operation

    Operation SETTING THE CODE ON THE TRANSMITTER NOTE: The battery will weaken with age and should be replaced before leaking takes place as this will damage the remote control. Dispose of used battery properly and keep the battery out of the reach of children. NOTE: The switch marked ON/DIM controls the dimming function of the lights.
  • Page 14: Operating Your Fan And Remote Control

    Operation (continued) OPERATING YOUR FAN AND REMOTE CONTROL button. - Press and release the button to turn the fan on or off. □ Press and hold the button for 5 seconds to enter the learning function. □ Fan on. The fan memory function will resume the speed set on the fan prior to the power being turned off. The LED bar will display the current settings for 5 seconds after the button is released.
  • Page 15: Reverse Switch Operating Instructions

    Operation (continued) Timer □ Pressing the timer button will automatically turn fan and light (if light is on) off after 2, 4, or 8 hours. When you activate the timer mode, the LED to the left of the time above the clock will illuminate. Disables timer Fan reverse button (Must be pushed when the fan is in operation) □...
  • Page 16: Care And Cleaning

    Care and Cleaning Do Do Do not Do not □ □ Check the support connections, brackets, and blade Use water when cleaning. Water could damage the motor, attachments twice a year. Make sure they are secure. or the wood, or possibly cause an electrical shock. Because of the fan’s natural movement, some □...
  • Page 17 Troubleshooting (continued) Problem Problem Solution Solution □ Do not connect the fan with wall mounted variable speed control(s). The remote control is not working. □ Make sure the frequency switches are set correctly. □ Verify that all blades and blade bracket screws are secure (most fan wobble problems are caused by loose parts).
  • Page 18: Service Parts

    Service Parts Part Part Description Description Part Part Description Description Mounting bracket (preassembled) Plastic wire nut Fan motor assembly Motor mounting screws Fan housing Blade attachment screw and fiber washer Blade Flywheel assembly mounting screw Flywheel Light kit mounting plate screw (preassembled) Light kit mounting plate Light kit mounting screw (preassembled) 18 watt LED Light kit...
  • Page 19 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use. YG380HGLWH-Y...
