Home Decorators Collection OSSA CF2001-N Use And Care Manual

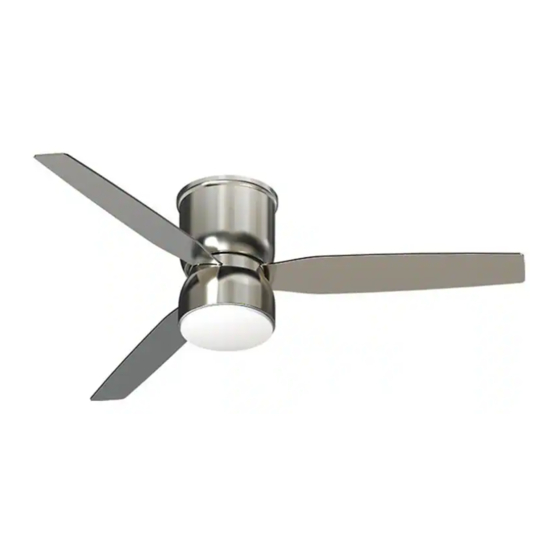

52-inch smart ceiling fan

Hide thumbs

Table Of Contents

Quick Links

Item# 1008926194,1008872986

Model# CF2001-N, CF2001-B

USE AND CARE GUIDE

OSSA 52-INCH SMART CEILING FAN

Questions, problems, missing parts? Before returning to the store,

call Home Decorators Collection Customer Service

8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday.

1-800-986-3460

HOMEDEPOT.COM/Hubspace

THANK YOU

to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home

improvement needs. Thank you for choosing Home Decorators Collection!

Table of Contents

Need help?

Do you have a question about the OSSA CF2001-N and is the answer not in the manual?

Questions and answers

Summary of Contents for Home Decorators Collection OSSA CF2001-N

Page 1 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday. 1-800-986-3460 HOMEDEPOT.COM/Hubspace THANK YOU to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Home Decorators Collection!
Page 2: Table Of Contents
Table of Contents Table of Contents ..............2 Assembly................7 Safety Information ............... 2 Operation ................12 Warranty ................3 Care and Cleaning............. 15 Pre-Installation ..............4 Troubleshooting..............16 Installation................6 Safety Information READ AND SAVE THESE INSTRUCTIONS. WARNING: To reduce the risk of personal injury, do not bend the blade brackets (also referred to as 1.
Page 3: Safety Information
"wobble" is normal and should not be considered a defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. Home Decorators Collection hereby disclaims any and all warranties, including but not limited to those of merchantability and tness for a particular purpose to the extent permitted by law.
Page 4: Pre-Installation
Pre-Installation SPECIFICATIONS Gross Size Speed Volts Amps Watts Cu. Ft. Weight Weight 0.06 1800 0.09 2300 0.14 3100 52 in. 16.09lbs 21.83lbs 2.237 0.23 3900 (7.3 kg) (9.9 kg) 0.33 4600 0.53 5500 NOTE: These are approximate measures. They do not include the amps and wattage used by the light kit.
Page 5 Pre-Installation (continued) PACKAGE CONTENTS Hook Remote antenna (Yellow) Part Description Quantity Part Description Quantity Glass shade Mounting plate Fan-motor assembly Rotary plate Connect plate Ceiling housing Blade Trim ring Wi antenna Light housing LED module HOMEDEPOT.COM/Hubspace Please contact 1-800-986-3460 for further assistance.
Page 6: Installation
Installation MOUNTING OPTIONS Hanger Bar WARNING: personal injury, mount to outlet box marked “Acceptable for fan support of 35 lbs. (15.9 kg) or less”, and use screws provided with the outlet box. An outlet box not be acceptable for fan support and may need to be Outlet Box If your ceiling fan does not have an existing UL-listed mounting box, then install one using the following instructions:...
Page 7 Assembly - Hanging the Fan Install the mounting plate to ceiling Hang the fan-motor Assembly □ □ Carefully lift the fan-motor assembly (B) and hang the There are 8 pre-installed screws (4 side-N; 4 bottom - M) on the mounting plate (A). fan-motor assembly (B) on the hook of the mounting plate □...
Page 8: Assembly
Assembly - Hanging the Fan (continued) Connect the wires Install the fan-motor assembly □ □ Carefully lift the wi antenna(L) through the gap of mounting Identify the wiring located inside of fan-motor assembly (B): black – line voltage, white – neutral, green – ground . plate (A) away from fan-motor assembly(B).
Page 9 Assembly - Hanging the Fan (continued) Install the trim ring Install the blades □ □ Remove all blade screws from the rotary plate (I) of fan-motor Locate the slotting inside of trim ring (D). □ Carefully lift the trim ring (D) until the slotting in place through assembly (B).
Page 10 Assembly - Hanging the Fan (continued) Install the light housing Install the LED module □ □ Remove 3pcs pre-installed screws from inside of the light Remove one screw from the connect plate (J) of fan-motor housing (E). assembly (B). And loosen other 2pcs screws away from 3/4 length. □...
Page 11 Assembly - Hanging the Fan (continued) Install the glass shade Install the remote bracket □ □ Using the remote bracket (MM)as a guide, mark the two holes Rotate the glass shade (G) clockwise until it is secure. locations. □ Drill the two holes at the marked locations and install two anchors (KK) in each of the marked locations.
Page 12: Operation
Remote Operation NOTE: Wait for the fan to stop before reversing the direction of the Warm weather blade rotation. 433 Remote control Your fan is equipped with a remote control to operate the speed and lights for your new ceiling fan. effect.
Page 13 Remote Operation Icon Button Name Action Notes Light ON/OFF Press once to turn the light on The brightness and CCT will be the Press again to turn the light off same as your last setting when turned on. Fan ON/OFF Press once to turn the fan on Press again to turn the fan off Brightness Change...
Page 14 Smart Setup Operation Download the Hubspace™ app from Create an account to sign in or log in the App Store or the Google Play if you already have an account. Store. For more information on the Hubspace app, visit hubspace.com/Hubspace. Connect your ceiling fan to power Tap the ‘+’...
Page 15: Care And Cleaning
Voice Commands The Ossa 52 in. LED Indoor Smart Color Changing Ceiling Fan works with Alexa and Google Assistant. This section lists some of the voice commands you can use. To view these and other commands, go to http://hubspaceconnect.com. Alexa Google When you want to...
Page 16: Troubleshooting
Troubleshooting Problem Solution The fan will not start. 1. Check to make sure the wall switch is in the on position if applicable. 2. Check the main and branch circuit fuses or breakers. 3. Make sure your device is connected to a power source. 4.
Page 17 Troubleshooting Problem Solution My Hubspace device is not Make sure your device is connected to a power source. Your Internet connecting to Wi-Fi. connection or Wi-Fi network may be down. My device cannot nd any Make sure you have a 2.4GHz capable Wi-Fi network within range of the Wi-Fi networks.
Page 18 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday 1-800-986-3460 HOMEDEPOT.COM/Hubspace Retain this manual for future use.

This manual is also suitable for:

Ossa cf2001-b 1008926194 1008872986
