Assembly — Hanging the Fan (continued)
8
Making the electrical connections
WARNING: Check to see that all connections are tight,
including ground, and that no bare wire is visible at the wire
nuts, except for the ground wire.
CAUTION: To reduce the risk of electric shock, this fan
must be installed with an isolating wall control/switch.
NOTE: The fan must be installed at a maximum distance of
20 ft. from the remote control for proper signal transmission
between the remote control and the fan's receiving unit.
NOTE: Leave the antenna inside the canopy and make sure
it is not obstructed or damaged.
If you feel you do not have enough electrical wiring knowledge
or experience, have your fan installed by a licensed electrician.
Follow the steps below to connect the fan to your household
wiring. Use the plastic wire nuts (AA) with your fan. Secure the
plastic wire nuts (AA) with electrical tape. Make sure there are
no loose strands or connections.

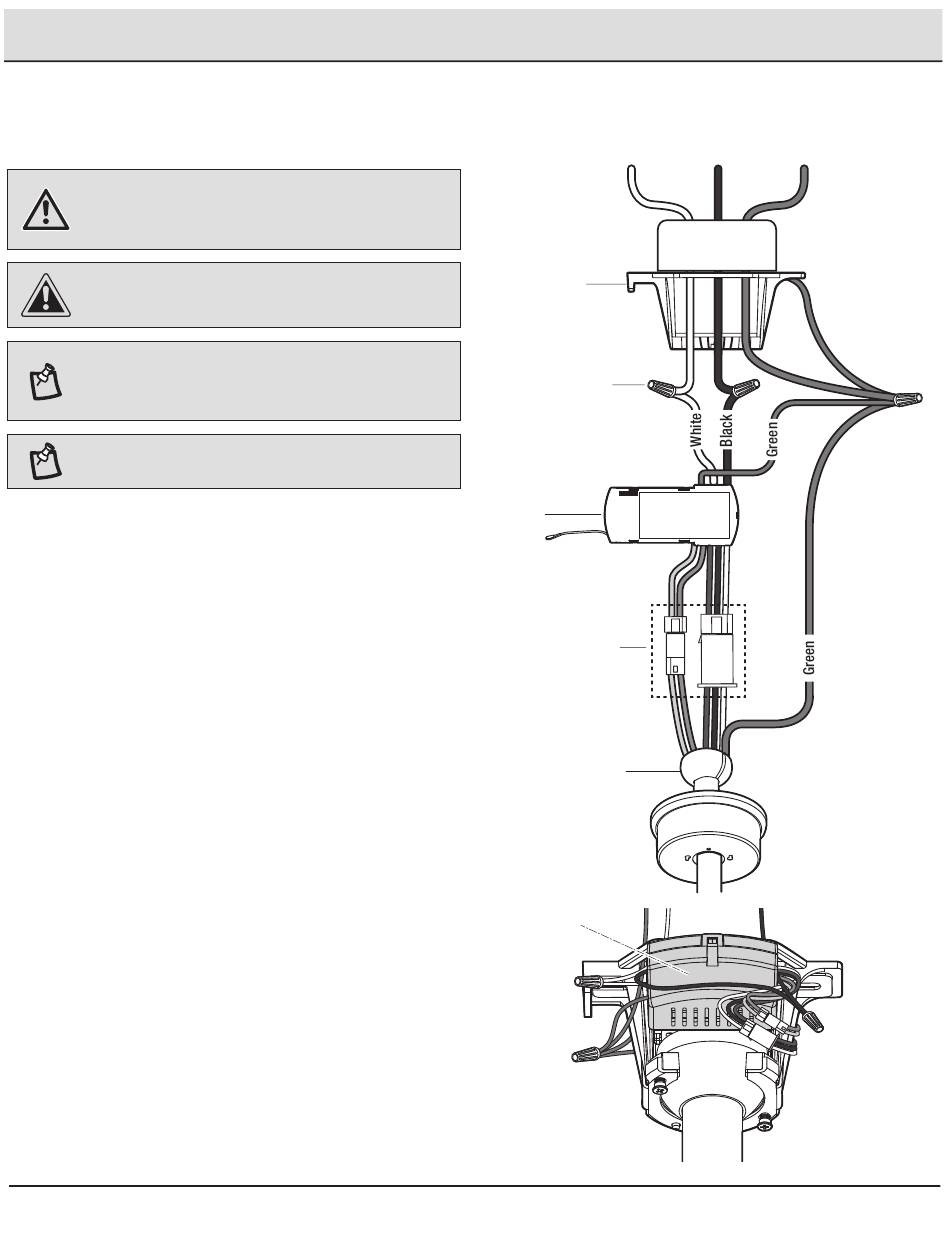

□ Make wire connections from the fan to the receiver (L).
From Fan
2-pin connector--------------- 2-pin connector
3-pin connector--------------- 3-pin connector
□ Make wire connections from the receiver (L) and fan to the
outlet box as follows, using the wire nuts (AA).
From Receiver
Black wire "AC in L" ---------- Black wire (hot)
White wire "AC in N" --------- White wire (neutral)
From Fan and Receiver To Outlet Box
Green wires* ----------------- Green or bare wire (ground)
* There are three green grounding leads: one from the mounting
bracket (A), one from the hanger ball/downrod assembly (D) and
one from the receiver (L).
□ Turn the wire nut connections upward, spreading them
apart so the green (ground) and white wires will be on one
side of the outlet box and the black wire will be on the
other side. Carefully tuck wires into the outlet box space
above the receiver or evenly around the sides of the hanger
bracket.
To Receiver
To Outlet Box
White
A
AA
L
2-pin and 3-pin
connectors
D
L
10
Ground
Black conductor
Outlet Box
