- Page 1 170 842 AK410-CB 120 V~ 60 Hz 78 W Read and follow all the instructions before using this product. Chartwell Ceiling Fan Owner’s Manual Chartwell Ventilador de Techo de 1,32 Manual del Propietario...
- Page 2 We’re certain that your Home Decorators Collection fan will The Home Decorators Collection provide you with many years of Fan Company offers a wide variety comfort, energy savings and of ceiling fans. We offer combinations satisfaction.
- Page 3 VENTILADOR DE TECHO / CEILING FAN Marca / Brand: Home Decorators Collection Modelo / Model: 170 842 (AK410-CB) 120 V ~ 60 Hz 78 W Consumo de energía por unidad de tiempo en operación (Energy Consumption): 87.3 Importador / Importer: SERVICIOS HOME DEPOT, S. DE R.L. DE C.V.
-
Page 4: Table Of Contents

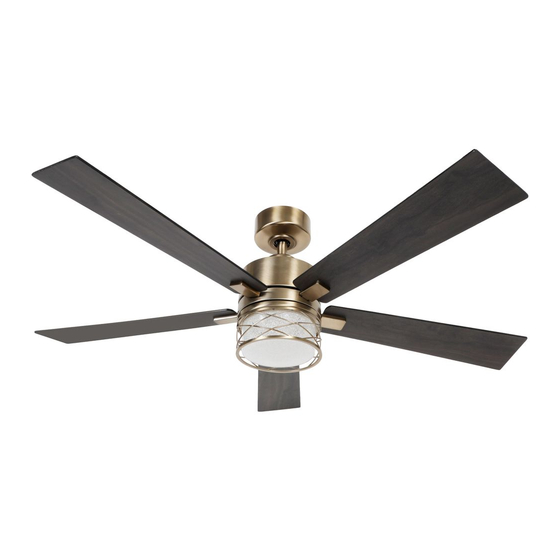

52” CHARTWELL Ceiling Fan by HDC Thank you for purchasing our ceiling fan. This product has been manufactured with the highest standards of safety and quality. Date Purchased Store Purchased Table of Contents 170 842 (AK410-CB) Model No. Safety Rules ....1 Serial No. -
Page 5: Safety Rules
Safety Rules - Read and Save These Instructions To reduce the risk of electric shock, insure electricity has been turned All set screws must be checked and retightened where necessary before off at the circuit breaker or fuse box before beginning. installation. -
Page 6: Unpacking Your Fan
Unpacking Your Fan Unpack your fan and check the contents. You should have the following items: Set of blades (5) 20 watt LED Light kit Blade Attachment Hardware Blade Attachment Hardware (16 Screws, 16 Fiber Washers) (7 Screws, 7 Lock Washers) Canopy assembly Glass shade Ball/downrod assembly... -
Page 7: Installing Your Fan
Installing Your Fan Provide strong support Tools Required Figures 1~3 are examples of different ways to mount the outlet box. Phillips screwdriver, straight slot screwdriver, step ladder and wire cutters. Recessed Ceiling outlet box mounting plate Mounting Options Figure 3 Outlet box NOTE: You may need a longer downrod to If there isn't an existing NOM listed mounting... - Page 8 Hanging the Fan Carefully feed the motor wires up through the downrod. Thread the downrod into the collar. Align the holes and replace the clevis pin and Mounting REMEMBER to turn off the power. Follow the cotter pin. Tighten the two collar setscrews. Bracket steps below to hang your fan properly.
- Page 9 Installing Fan to the NOM listed Extension cord outlet box Electrical Box Cross pin Ground lead WARNING Mounting TO REDUCE THE RISK OF FIRE, ELECTRIC screws (Supplied 120V Hanger ball SHOCK OR OTHER PERSONAL INJURY. MOUNT with outlet box) Set screw Wires FAN ONLY TO AN OUTLET BOX OR SUPPORTING Downrod...
- Page 10 Making the Electrical Replace the battery cover on the remote control. Receiver Ceiling Connections Mounting Setting the Code on the Receiver: (Figure 11) Bracket Slide the code switches on the receiver to the NOTE same positions as set on the remote control. THE FREQUENCIES ON YOUR RECEIVER AND REMOTE CONTROL HAVE BEEN PRESET AT THE FACTORY.
- Page 11 NOTE Make wire connections from the fan to the SUPPLY CIRCUIT receiver. (Figure 13) FAN MUST BE INSTALLED AT A MAXIMUM From Fan To Receiver DISTANCE OF 20 FEET FROM THE TRANSMITTING Ground UNIT FOR PROPER SIGNAL TRANSMISSION 3-Pin Connector ..... 3-Pin Connector Black White Conductor...
- Page 12 Finishing the Fan NOTE ADJUST THE CANOPY MOUNTING SCREWS AS Installation NECESSARY UNTIL THE CANOPY AND CANOPY Outlet BOTTOM COVER ARE SNUG. Ceiling WARNING mounting Attach the canopy bottom cover to the canopy by MAKE SURE THE TAB O N T H E MOUNTING bracket inserting the screw heads into the key slots in the Mounting...
- Page 13 Attaching the Fan Blades Blade Balancing WARNING TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE ARMS WHILE Attach the blades to the blade arms using the three All blades are grouped by weight during assembly. INSTALLING, BALANCING THE BLADES, OR blade attachment screws and fiber washers.
- Page 14 Installing the LED Light If deviation is greater than 1/8” , please call Customer Service (800-004-6633) to order complimentary replacements of your brackets. NOTE BEFORE STARTING INSTALLATION, DISCONNECT THE POWER BY TURNING OFF THE CIRCUIT Touching ceiling BREAKER OR REMOVING THE FUSE AT FUSE BOX.
-
Page 15: Operation
Operation Installing the Remote Control Holder - Press and release the button to turn the Option 1: 3000K (Soft White). Attach the remote control holder with the two fan on or off. Option 2: 4000K (Bright White). remote control holder mounting screws.(Figure Option 3: 5000K (Daylight). - Page 16 Speed settings for warm or cool weather depend on factors such as the room size, ceiling height, number of fans, etc. The reverse switch is located on the top of motor housing. Slide the switch to the left for warm weather operation.
-
Page 17: Care Of Your Fan
Care of Your Fan Troubleshooting PROBLEM SOLUTION Here are some suggestions to help you maintain your fan. The fan will not start. Check the main and branch circuit fuses or breakers. Because of the fan's natural movement, some Check the line wire connections to the fan and switch wire connections connections may become loose. -
Page 18: Troubleshooting
Troubleshooting (continued) PROBLEM SOLUTION The fan wobbles. Verify that all blades and blade bracket screws are secure (most fan wobble problems are caused by loose parts). Once the fan is properly installed, run the ceiling fan for 10 minutes to let the fan self-adjust. If wobble occurs after running the fan for 10 minutes, verify blade level using the following process: - Select a point on the ceiling above the tip of one of the blades, then... -
Page 19: Specifications
Specifications FAN SIZE SPEED VOLTS AMPS WATTS N.W. G.W. C.M. 0.22 11.42 8.40 kg 10.84 kg 52” MED. 0.40 27.90 0.05 (18.48 lbs) (23.85 lbs) HIGH 0.56 57.89 These are approximate measures. They do not include Amps and Wattage used by the light kit. Importer: SERVICIOS HOME DEPOT, S.
