6. HANGING THE FAN (cont.)

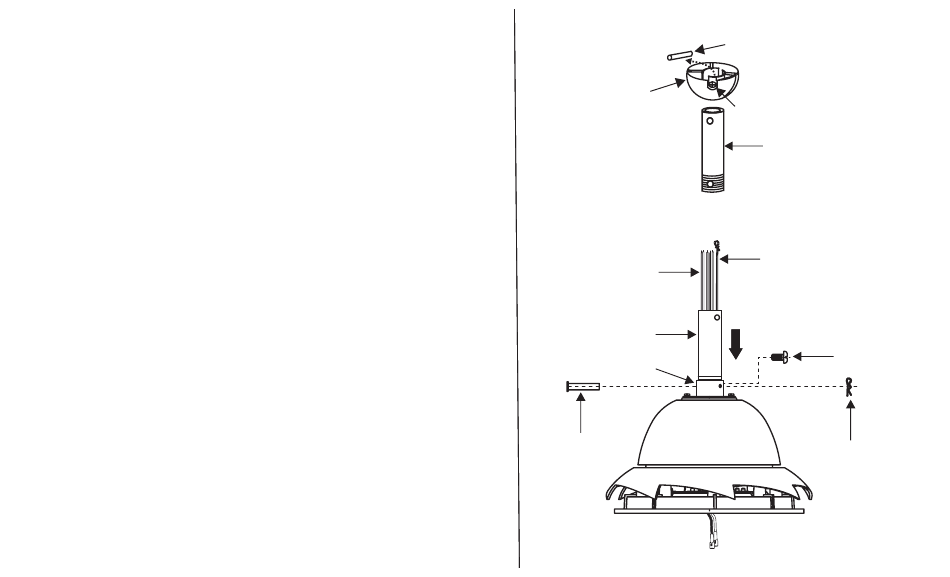

1. Take out the set screw located in the hanger ball, lower the
hanger ball and remove the cross pin. Remove the hanger ball
from the hanger ball/downrod assembly. (Fig. 8)
2. Remove the clevis pin and cotter pin, and loosen the two collar
screws from the motor collar. (Fig. 9)
3. Carefully feed the motor wires and safety cable up through the
downrod. Thread the downrod into the collar.
4. Align the holes of downrod and collar and insert the cotter pin
and clevis pin. Tighten the two collar screws. (Fig. 9)
WARNING: Failure to properly install the cotter pin and/or tighten the
screws could result in the fan loosening and possibly falling.
FR - W 1 8 05
Hanger
ball
FIGURE 8
Motor wires
Downrod
Collar
Clevis Pin
FIGURE 9
Cross pin
Set screw
Downrod
Safety cable
Screws
Cotter Pin
