6. HANGING THE FAN (cont.)

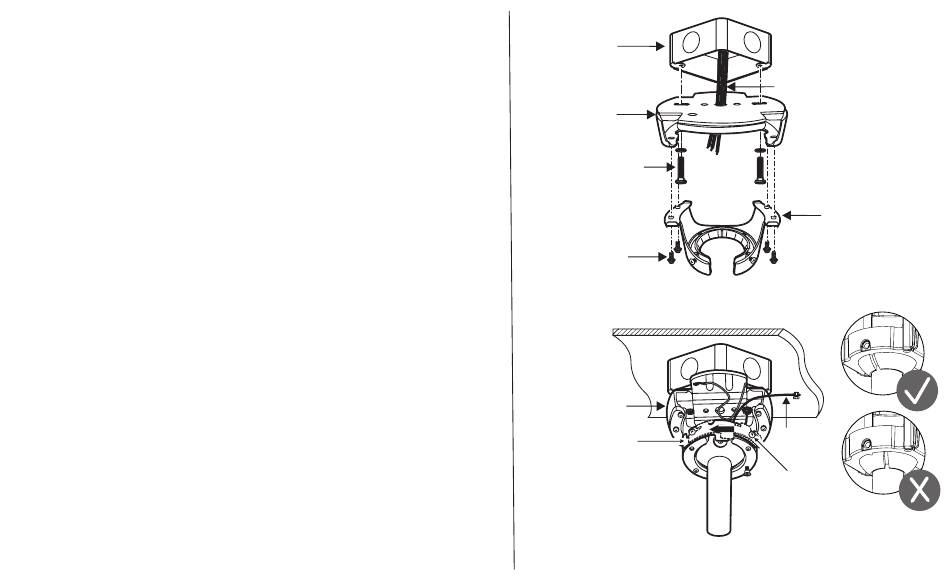

1. Pass the 120-volt supply wires through the center hole in the
ceiling mounting bracket as shown in Fig. 11.
2. Secure the mounting bracket to the ceiling outlet box with the
screws and washers provided with your outlet box. (Fig. 11)
3. Attach mounting neck onto the mounting bracket. Rotate the
mounting neck to align the four screw holes. Secure mounting
neck to the mounting bracket with four mounting neck screws to
become a complete mounting bracket. (Fig. 11)
4. Carefully lift the fan motor assembly up to the mounting bracket
and seat the hanger ball in the mounting bracket. Rotate the
socket assembly until the ball drops and locks into the hanger
bracket screw. (Fig. 12)
5. Secure the safety cable to the building structure using a wood
screw (not included). (Fig. 12)
6. Secure the stop valve onto mounting bracket by tightening two
stop valve screw to close up the opening of mounting bracket.
(Fig. 12)
FR - W 1 8 05
UL/cUL Listed
outlet box
Mounting
bracket
Mounting screws
(supplied with
outlet box)
Mounting neck
screws
FIGURE 11
Mounting
bracket
Stop valve
FIGURE 12
120V Wires
Mounting neck
Safety
cable
Stop Bracket
screws
