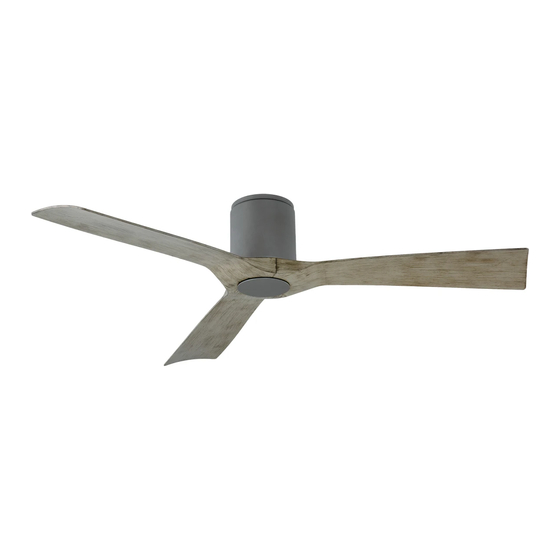

- Page 1 AVI ATO R F LU S H FH-W1811-5 4 INSTALLATION INSTRUCTIONS SMART MOTOR works with the modernforms.com Google Assistant...
- Page 2 APP INSTRUCTIONS AND SMART HOME DEVICE INTEGRATION modernforms.com/mfappins WIFI TOUCH PANEL FREE APP DOWNLOAD RF WALL CONTROL WALL CONTROL Sync with our exclusive Modern Forms app F-WC-WT F-TS-BK Black to control fan speed, use smart features like Included with each fan...
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1. SAFETY RULES ......................................4 2. FTC ENERGY GUIDE & SPECIFICATION ............................5 3. TOOLS AND MATERIALS REQUIRED ..............................5 4. PACKAGE CONTENTS ................................... 6 5. MOUNTING OPTIONS ..................................8 6. INSTALLING THE MOUNTING BRACKET ............................9 7. -
Page 4: Safety Rules
NOTE: A maximum of 12 fans can operate on a circuit through an on/off switch Do not use chemicals when cleaning the fan or fan blades. or a breaker when utilizing the Modern Forms app for the fan control (without A dry dust cloth or lightly dampened cloth will be suitable for most the wall control in the circuit). -
Page 5: Ftc Energy Guide & Specification
2. FTC ENERGY GUIDE & SPECIFICATION FAN SIZE VOLTS N.W. G.W. STANDARD ELECTRICITY AIR FLOW ENERGY FAN EFFICACY (lbs) (lbs) COSTS* Aviator Flush 54” 6.85 10.67 High Speed 6744 CFM $8/yr 246.1 CFM/W Weighted Average 3982 CFM $4/yr 259 CFM/W * Estimated annual energy cost based on $0.12 per kWh and 6.4 hours use per day. -
Page 6: Package Contents
4. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: REF. DESCRIPTION PART NO. Blade Set of 3 RPL-F1811-54-BD-** Blade Collector Ring Hanger Plate RPL-F1811-HANGER-** Hanger Gasket Motor Assembly Bottom Cap (Aluminum) Control Receiver w/ Hardware RPL-F1811-54-REC Wall Control w/ Hardware F-WC-WT... - Page 7 4. PACKAGE CONTENTS (cont.) REF. DESCRIPTION Blade Set of 3 Blade Collector Ring Hanger Plate Hanger Gasket Motor Assembly Bottom Cap (Aluminum) Control Receiver w/ Hardware Wall Control w/ Hardware Hardware Bag FH -W 18 11...
-
Page 8: Mounting Options
5. MOUNTING OPTIONS Joist If there isn’t an existing UL/cUL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off Support brace circuit breakers. Secure the outlet box directly to the building structure. Outlet box Use appropriate fasteners and building materials. -
Page 9: Installing The Mounting Bracket
6. INSTALLING THE MOUNTING BRACKET REMEMBER to turn off power at the breaker. Follow the steps below to hang your fan properly: Disconnect power to the fan location at the breaker. A licensed electrician must install the fan. There are four screws on top of the motor assembly. Remove two that are on the opposite of eachother and save for section 10. -
Page 10: Attaching The Fan Blades
7. ATTACHING THE FAN BLADES Blade Collector Ring Place blade on motor as shown in Fig. 6 and secure with the blade attach- ment screws and washers. Repeat this procedure with the remaining blades (Fig. 6). Secure the bottom of the blades together using the provided blade collector ring and hardware (Fig. -
Page 11: Making The Electrical Connections
9. MAKING THE ELECTRICAL CONNECTIONS WARNING: To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring. WARNING: Installation of this fan requires that a two-conductor cable with ground wire be run between ceiling and wall outlet box. WARNING: Check to see that all connections are tight, including ground, and that no bare wire is visible at the wire nuts, except for the ground wire. - Page 12 9. MAKING THE ELECTRICAL CONNECTIONS (cont.) Motor to receiver electrical connections: (Fig. 10) Place motor on flat surface before connecting receiver wires. Receiver Connect the red wire from the fan to the red wire marked “TO MOTOR” from the receiver. White (for light) Red (to motor) Connect the gray wire from the fan to the gray wire marked “TO MOTOR”...
- Page 13 9. MAKING THE ELECTRICAL CONNECTIONS (cont.) Receiver to house supply wires electrical connections: (Fig. 11 & 12) FIGURE 11 Lift motor assembly and hang it using the cable/hook as shown in Figure Secure the safety cable to the building structure using a wood screw (Fig. 11).
-
Page 14: Finishing The Installation
10. FINISHING THE INSTALLATION Secure all wire connections with supplied wire ties to assist in fan instal- lation. Tuck connections neatly into ceiling outlet box. Remove the motor assembly from the hook on the mounting bracket. Position the motor up to the hanger plate and attach using two screws through the two key slots in the top of the motor housing (Fig. -
Page 15: Installing The Led Luminaire Module (Optional Accessory)
11. INSTALLING THE LED LUMINAIRE MOD- FIGURE 15 FIGURE 14 ULE (Optional Accessory) CAUTION: To reduce the risk of electric shock, disconnect the electrical supply circuit to the fan before installing light kit. Remove the three screws from the LED wire storage cap, keep the cap for future use when not using the luminaire (Fig. -
Page 16: Installing The Wall Control
12. INSTALLING THE WALL CONTROL Wall control to wall outlet box electrical connections: (Fig. 19) Connect the white wire from the control to the white (neutral) wire from the wall outlet box. Connect the red wire form the control to the black wire from the wall outlet box that feeds up to the fan. Connect the black wire marked “LINE IN”... - Page 17 12. INSTALLING THE WALL CONTROL (cont.) WARNING: Remember to shut the power off at the circuit breaker or fuse box. Wall Control Wall Outlet Box Wall Mounting Plate Carefully tuck the wire connections inside the junction box. Secure the wall control with the two wall transmitter screws provided (Fig. 20). Attach the wall mounting plate over the wall switch and secure with the two wall mounting plate screws provided.
-
Page 18: Wall Control Operating Instructions
13. WALL CONTROL OPERATING INSTRUCTIONS Your DC brushless motor is equipped with an intuitive wall control. Restore power to ceiling fan and test the wall control as below for proper operation. Pairing the Wall Control to Your Fan Your fan is pre-paired at the factory, No pairing is necessary. Wall Control Button Definitions These seven buttons are used to set the fan speed as follows: Button: turn the light ON or OFF... - Page 19 13. WALL CONTROL OPERATING INSTRUCTIONS (cont.) NOTE: A maximum of 2 fans can operate on a circuit through the wall control. NOTE: A maximum of 12 fans can operate on a circuit through an on/off switch or breaker when utilizing the app for the fan control (without the wall control in the circuit).
-
Page 20: Application
14. APPLICATION In addition to the included wall control, you can control the fan through the Modern Forms app. FIGURE 24 FIGURE 25 To use the app, download it for free from the App Store or Google Play. Open the app to create your account. You can also log in with your Facebook or Google account. -
Page 21: Troubleshooting
15. TROUBLESHOOTING Problem Solution Fan will not start. Check circuit fuses or breakers. Check wall control LED indicator light. If LED is not illuminated when pushing a button, it is not transmitting a signal. Please check power to wall control and all electrical connections. Assure that there are no more than 2 fans operating on a circuit through the wall control. -
Page 22: Accessories
Sold separately RF WALL CONTROL Included with each fan 6 fan speeds Dims light to 1% F-WC ON/OFF Wall control range: Up to 30ft. from fan Works in conjunction with Modern Forms Fan Receiver (not included) F H-W 181 1... - Page 23 Español For instructions in Spanish please visit the link below. Para obtener instrucciones en español, visite el siguiente enlace. www.modernforms.com/fan-instructions-espanol Français For instructions in French please visit the link below. Pour obtenir des instructions en français, veuillez visiter le lien ci-dessous. www.modernforms.com/fan-instructions-francais FH -W 18 11...
- Page 24 Get Smart The Modern Forms app synchronizes seamlessly with smart home devices you already own. To learn more go to modernforms.com/mfappins works with the Google Assistant Free App Download Sync with our exclusive Modern Forms App to control fan speed, use smart features like Adaptive Learning, create groups and reduce energy costs.
- Page 25 FH -W 18 11...
- Page 26 F H-W 181 1...
- Page 27 FH -W 18 11...
- Page 28 F H-W1811 modernforms.com...
