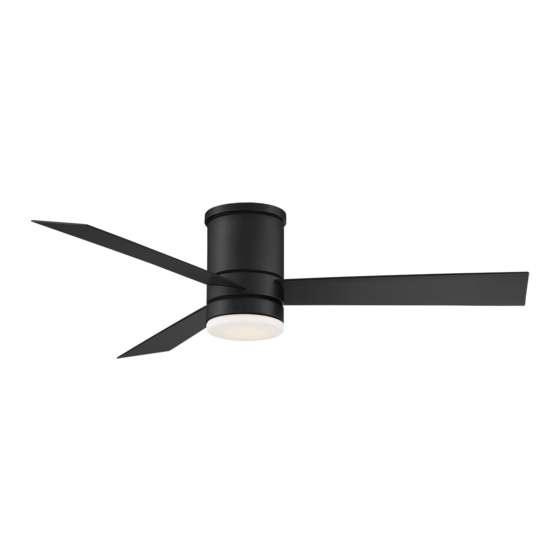

Axis 52 Flush
Installation Instructions
works with the
Google Assistant

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Axis 52 Flush and is the answer not in the manual?

Questions and answers

Related Manuals for Modern Forms Axis 52 Flush

Summary of Contents for Modern Forms Axis 52 Flush

  • Page 1 Axis 52 Flush Installation Instructions works with the Google Assistant...
  • Page 2 Please read and save these instructions before installation DO NOT RETURN TO STORE F H - W 1 8 0 3 -5 2 Axis Flush Instructions...
  • Page 3 General Inquiries For all questions about your ceiling fan please read all included instructions, installation procedures, troubleshooting guidelines and warranty information before starting installation. For missing parts or general inquiries call our trained technical staff at: 1-866-810-6615 option 1 MON-FRI 8AM-8PM EST Email: customerservice@modernforms.com Or live chat at modernforms.com...
  • Page 4 Safety Rules For operation, maintenance, and troubleshooting information, visit http://modernforms.com/fan-support/ To reduce the risk of electric shock, ensure electricity has been turned off at the circuit breaker before beginning. All wiring must be in accordance with the National Electrical Code “ANSI/NFPA 70”...
  • Page 5 Modern Forms . Substitution of parts or accessories not designated for use with this product by Modern Forms could result in personal injury or property damage and will void the warranty.
  • Page 6 Get Smart... Get Smart... works with the works with the Integrates Integrates Google Assistant Google Assistant seamlessly with: seamlessly with: devices you already own devices you already own Wet Location-listed to the strictest UL/cUL safety regulations. Finished and rated for interior and exterior use Premium smart Wi-Fi and Bluetooth enabled features:...

  • Page 7: Table Of Contents

    Contents 1. Mounting Options 2. Installing the Mounting Bracket 3. Hanging the Fan 4. Attaching the Fan Blades 5. Making the Electrical Connections 14-16 6. Installing the Optional Wall Control 7. Finishing the Installation 8. Installing the Adapter Plate 9. Installing the LED Luminaire Module/Cover 10.
  • Page 8 Package Contents Blade Set of 3 Glass Shade RPL-F1803-**-BD-** RPL-F1803-GLA 8. Luminaire Cover 2. Hanger Plate RPL-FH1803-COVER-** RPL-F1803-HGR 3. Trim Ring - Decorative 9. Control Receiver w/Hardware RPL-FH1803-TRIM** F-R3-1803-** 4. Motor Assembly 10. Remote w/Wall Cradle 5. Adapter Plate F-RCBT-WT 6.
  • Page 9 Hanging Weight: 13 lbs IMPORTANT: Please make note of the MAC ID on the receiver and keep it in a safe place. FH-W 1 8 0 3 - 52 Axis Flush Instructions 9...

  • Page 10: Mounting Options

    1. Mounting Options CAUTION: To prevent electrical shock, ensure electricity has been turned off at the circuit breaker before beginning. If there isn’t an existing UL/cUL listed outlet box, please refer to the following instructions. Secure the outlet box directly to the building structure.
  • Page 11 Support Brace 2. Outlet Box 3. Joist FH-W 1 8 0 3 - 52 Axis Flush Instructions 11...

  • Page 12: Hanging The Fan

    3. Hanging the Fan REMEMBER to turn off power at the breaker. Follow the steps below to hang your fan properly: Disconnect power at the breaker to the fan location. Check your outlet box to make sure it has a proper Hot, Neutral, and Ground.
  • Page 13 120V Wires 2. cUL Listed Electrical Box 3. Mounting Plate 4. Mounting Screws Screws (supplied with outlet box) 2. Top Assembly To Switch (Ground) (HOT) *Bare or Green (Neutral) To Switch (No Neutral) PROPRIETARY AND CONFIDENTIAL THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF <INSERT COMPANY NAME HERE>.

  • Page 14: Attaching The Fan Blades

    4. Attaching the Fan Blades Insert the blade through the slot in the housing. Align the holes in the blade with the fan motor assembly holes and secure with blade attachment screw with lock washers (Fig. 4). hardware. 2. Repeat this procedure with the remaining blades. 5.
  • Page 15 Screws with Rubber Washers 2. Slot 3. Top Assembly Motor Assembly 2. Receiver 3. Trim Ring FH-W 1 8 0 3 - 52 Axis Flush Instructions 15...
  • Page 16 5. Making the Electrical Connections Motor to Receiver & Receiver to house supply wires (Fig. 5A). Connect the motor assembly ground wire, mounting bracket ground wire and receiver ground wire to the ground wire in outlet box. WARNING: Failure to connect ground wires could result in poor fan control functionality.
  • Page 17 Outlet GREEN(Ground) Black(Hot) can be RED from Switch leg WHITE(Neutral) WHITE(Line in N) GREEN(GND Must Use) Black(Line in H) Receiver GREY(to Motor) BLUE (to Light) WHITE(to Light) YELLOW(to Motor) GREEN(Hanger Assembly Ground) RED(to Motor) RED(to Motor) WHITE(Neutral) BLUE (for Light) YELLOW(to Motor) GREY(to Motor) HARDWARE USED:...

  • Page 18: Installing The Optional Wall Control

    6. Installing the Optional Wall Control NOTE: A Bluetooth wall control accessory can be purchased separately. Connect the green wire marked “GROUND” from the wall control to the copper wire from the wall outlet box that feeds back to the circuit breaker – important for proper fan function (Fig.
  • Page 19 Wall Outlet 2. Wall Control 3. Wall Mounting Plate 4. Mounting Plate Screws 5. Wall Plate Multi-location wiring Individually pair each of the wall controls with the fan receiver using the pairing instruction. See page 22. If Applicable Wallcontroller 1 Wallcontroller 2 Wallcontroller 3 Wall Control 3...

  • Page 20: Finishing The Installation

    7. Finishing the Installation Secure all wire connections with supplied wire ties to assist in canopy installation. 2. Tuck connections neatly into ceiling outlet box. 3. Remove the motor from the hook on the mounting bracket. Slide the motor up to the mounting bracket and place the key hole on the motor over the screw of the mounting bracket (Fig.
  • Page 21 Screws 2. Mounting Bracket 3. Trim Ring 4. Motor Mounting Ring 2. Adapter Plate FH-W 1 8 0 3 - 52 Axis Flush Instructions 21...

  • Page 22: Installing The Led Luminaire Module/Cover

    9. Installing the LED Luminaire Module/Cover WARNING: Before starting installation, disconnect the power by turning off the circuit breaker or removing the fuse at fuse box. NOTE: If you do not plan to install the luminaire module with your fan at this time, skip to step 5. Remove 3 screws from the outer perimeter of the adapter plate and keep for future use.
  • Page 23 Adapter Plate 2. LED Luminaire Module Metal Light Cover/ Glass FH-W 1 8 0 3 - 52 Axis Flush Instructions 23...

  • Page 24: Controlling The Fan

    10. Controlling the Fan Your fan was delivered to you with the included control already paired to your fan. A: Light On/Off, Bright/Dim B: Fan On/Off, Speed Up/Down C: Season (Summer/Winter) Air-Gap Switch: Pull tab to power off in case of emergency. Not necessary for normal fan operation (only included with wall control).
  • Page 25 Air-Gap Switch* Summer Mode Winter Mode Wall Control Remote (Counter-Clockwise) (Clockwise) Control * Air-Gap Switch only included with wall control Fan On/Off Light On/Off Fan Direction Press and hold Press and hold Press and hold button for 4 seconds. button for 4 seconds. button for 4 seconds.

  • Page 26: Reset

    In addition to the included remote control, you can control your fan with a wall control (sold separately) or through the Modern Forms app. To use the Modern Forms app, download it for free from the App Store or Google Play.
  • Page 27 Pairing Unpairing Fan Wi-Fi Reset Press and hold the for 10 seconds until Press and hold buttons To purge, press and hold LED blinks green and receiver emits 2 long beeps buttons for 4 seconds for 10-15 seconds Factory Reset Receiver Factory Reset Press and hold buttons for 10 seconds until the Press the reset button on the receiver until the...

  • Page 28: Accessories

    14. Accessories personalize your experience Bluetooth Remote Control Dims light to 1% | ON/OFF 6 fan speeds F-RCBT-WT White Bluetooth Wall Control Dims light to 1% | ON/OFF 6 fan speeds | Sold separately F-WCBT-WT White F H- W 1 8 0 3 - 5 2 Axis Flush Instructions...

  • Page 29: Troubleshooting

    15. Troubleshooting My Fan Will Not Start Check main and branch circuit fuses or circuit breakers. 2. Check line wire connections to fan and switch wire connections in the switch housings. CAUTION: Make sure the main power is turned off! My Fan is Noisy Allow for 24-hour break-in period.
  • Page 30 15. Troubleshooting cont. My remote or wall control is not controlling my fan Verify that the fan is receiving power by power cycling the fan. To do this: Cut power to the fan via standard On/Off wall switch, or the breaker if standard wall switch is not applicable.
  • Page 31 10 seconds and back on. Alternately, you can use the circuit breaker the fan is connected to by toggling it off for 10 seconds and back on. If your fan is wired through a Modern Forms wall control (P/N: F-WCBT-WT) pull the Air-Gap Switch on your wall control, wait 10 seconds, and re-insert.
  • Page 32 15. Troubleshooting cont. What is Pairing? Pairing is the process of connecting your Modern Forms remote or wall control to your fan. Your fan comes pre-paired to your included remote control. However, if you want additional controls for your fan or if you’re replacing a control, refer to the pairing and unpairing section of the instructions.
  • Page 33 FH-W 1 8 0 3 - 52 Axis Flush Instructions 33...
  • Page 34 This warranty shall not apply to products that have been altered, improperly installed, mishandled or misused. Notice of a defect in writing must be received by Modern Forms within five (5) years from the date of purchase (or according period of time as outlined by material). Excluded from warranty are any 3rd party component which carries its own manufacturer’s warranty.
  • Page 35 La notificación de un defecto por escrito debe ser recibida por Modern Forms dentro de los cinco (5) años a partir de la fecha de compra (o según el período de tiempo indicado en el material). Quedan excluidos de la garantía todos los componentes de terceros que tengan la garantía de su propio fabricante.
  • Page 36 F H- W 1 8 0 3 - 5 2 Axis Flush Instructions...
  • Page 37 FH-W 1 8 0 3 - 52 Axis Flush Instructions 37...
  • Page 38 F H - W 1 80 3 -52 modernforms.com...
