13. WALL CONTROL OPERATING INSTRUCTIONS

Your DC brushless motor is equipped with an intuitive wall control.
Restore power to ceiling fan and test the wall control as below for proper operation.
Pairing the Wall Control to Your Fan
Your fan is pre-paired at the factory, NO pairing is necessary.
Wall Control Button Definitions
These seven buttons are used to set the fan speed as follows:
Button: turn the light ON or OFF
Press/Hold to increase the desired light level.
Press/Hold to decrease the desired light level.
Button: turn the fan ON or OFF
Press/Hold the button to increase the fan speed through
the speed settings.
Press/Hold the button to decrease the fan speed through
the speed settings.
Button: Switch between summer mode and winter mode.
ON-OFF Switch: Pull switch tab to power off in case of emergency. Not necessary for normal fan operation.
FR -W 1 8 0 5

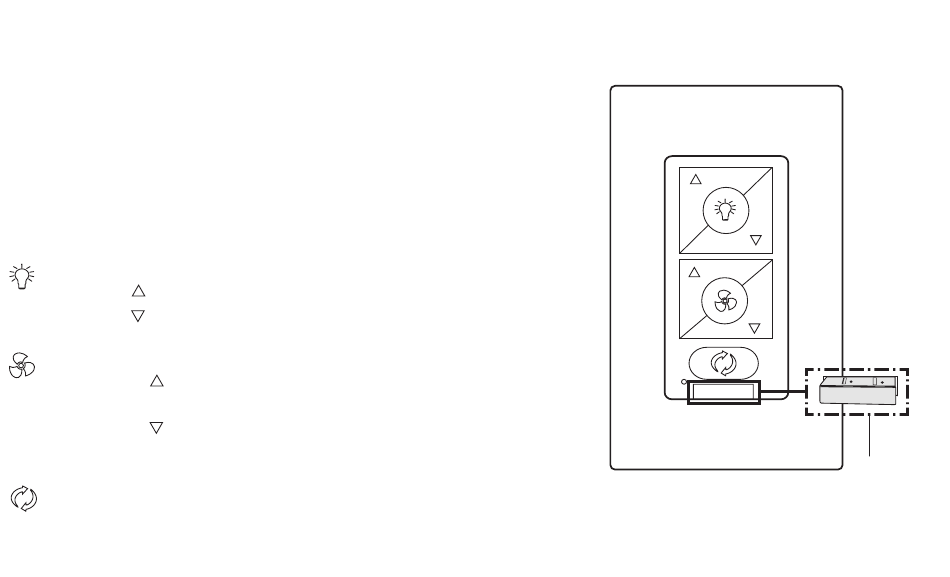

FIGURE 22
ON-OFF
switch
