7. MAKING THE ELECTRICAL CONNECTIONS (cont.)
Motor to receiver electrical connections: (Fig. 14)
1. Connect the hanger ball/downrod assembly ground wire,
mounting bracket ground wire and receiver ground wire to the
ground wire in outlet box.
WARNING: Failure to connect ground wires could result in poor
fan control functionality.
2. Connect the red wire from the fan to the red wire marked
"TO MOTOR" from the receiver.
3. Connect the gray wire from the fan to the gray wire marked
"TO MOTOR" from the receiver.
4. Connect the yellow wire from the fan to the yellow wire marked
"TO MOTOR" from the receiver.
5. Connect the white wire from the fan to the white wire marked
"For Light" from the receiver.
6. Connect the blue wire from the fan to the blue wire marked
"For Light" from the receiver.
Receiver to house supply wires electrical connections: (Fig. 14)
1. Connect the black (hot) wire from the ceiling to the black wire
marked "AC in L" from the receiver.
2. Connect the white (neutral) from the ceiling to the white wire
marked "AC in N" from the receiver.
F R- W1 8 0 5
Black (hot)
Black ("AC IN L")
Receiver
Red (to motor)
Gray (to motor)
Yellow (to motor)
Yellow (motor)
Gray (motor)
Red (motor)

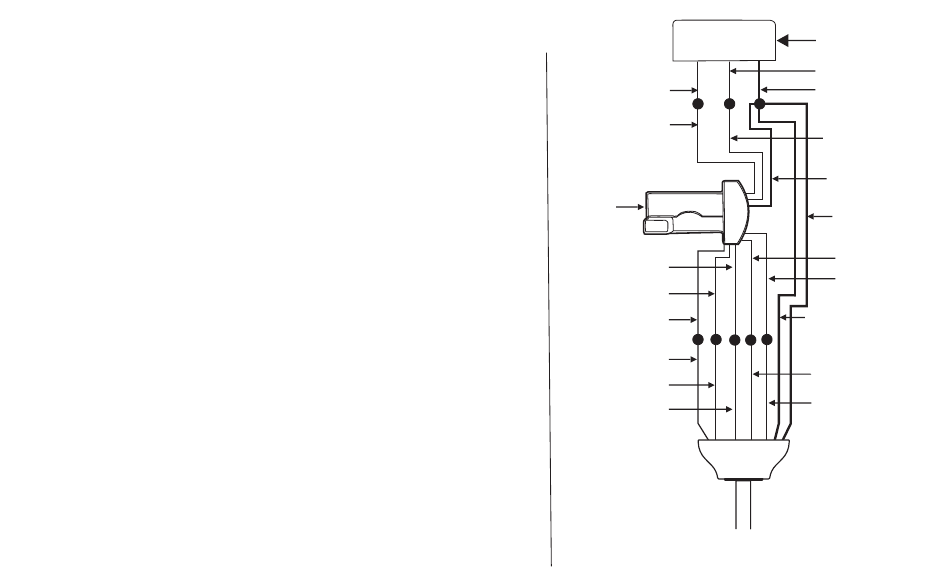

FIGURE 14
Outlet box
White (neutral)
Green (Ground)
White ("AC IN N")
Green (Ground)
To hanger ball
Green (Ground)
To hanger bracket
White (for light)
Blue (for light)
Green (Ground)
White (for light)
Blue (for light)
