Summary of Contents for Modern Forms VOX FLUSH FH-W1802-26L

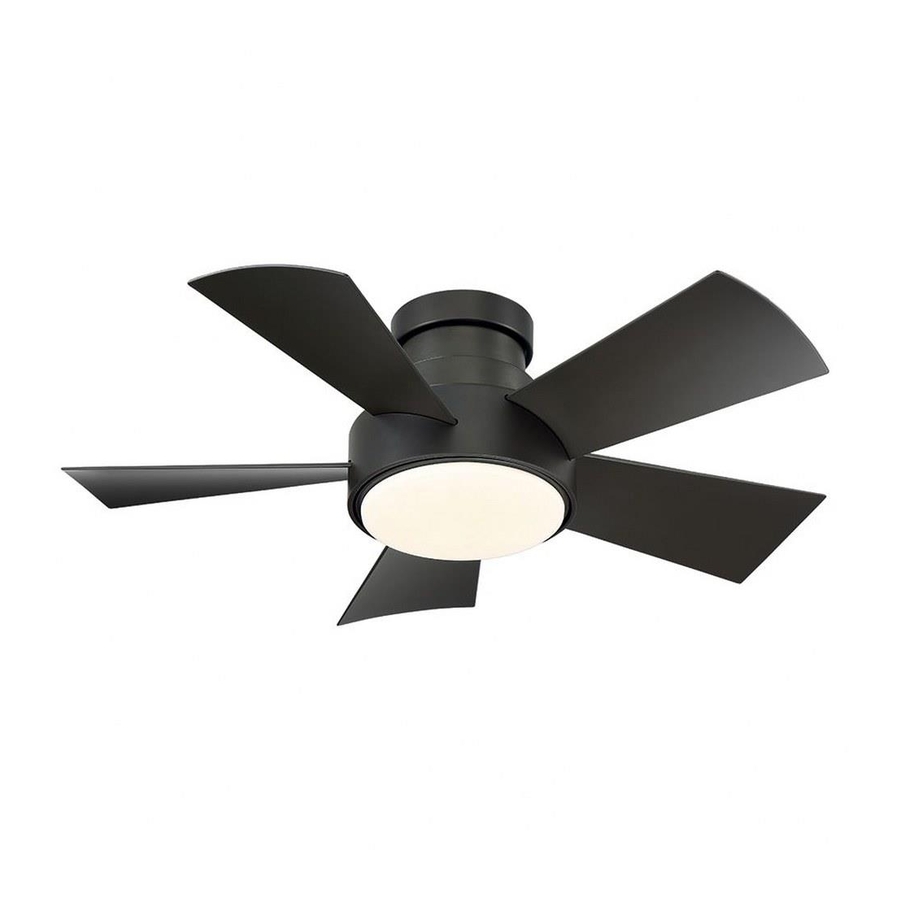

- Page 1 VO X F L USH 2 6 ” & 3 8 ” F H-W18 02-2 6 L; FH -W1 8 02 -3 8L INSTALLATION INSTRUCTIONS SMART MOTOR works with the modernforms.com Google Assistant...
- Page 2 All Modern Forms Smart Fans are: SMART Durably fi nished and Rated for Able to coordinate with smart Wet location-listed to the strictest interior and exterior use devices for voice-activated and ETL/cETL safety regulations thermostat control MOTOR Quiet, reliable, and up to 70%...
-
Page 3: Table Of Contents
TABLE OF CONTENTS 1 SAFETY RULES............................2 FTC ENERGY GUIDE & SPECIFICATIONS....................3 TOOLS AND MATERIALS REQUIRED...................... 4 PACKAGE CONTENTS..........................5 MOUNTING OPTIONS..........................6 HANGING THE FAN..........................7 MAKING THE ELECTRICAL CONNECTIONS.................... 8 INSTALLING THE WALL CONTROL ......................9 FINISHING THE INSTALLATION....................... 10 ATTACHING THE FAN BLADES....................... -
Page 4: Safety Rules
1. SAFETY RULES box and ungrounded conductor on the other side of the outlet box. For operation, maintenance, and troubleshooting information, All set screws must be checked and re-tightened where necessary visit modernforms.com/help. before installation. To reduce the risk of electric shock, ensure electricity has been turned off at the circuit breaker or fuse box before beginning. -
Page 5: Ftc Energy Guide & Specifications
2. FTC ENERGY GUIDE & SPECIFICATION FAN SIZE VOLTS STANDARD ELECTRICITY AIR FLOW ENERGY COSTS* FAN EFFICACY (lbs) (lbs) High Speed 2145 CFM $3/yr 195 CFM/W 26” 15.32 19.62 Weighted Average 1189 CFM $2/yr 159 CFM/W FAN SIZE VOLTS STANDARD ELECTRICITY AIR FLOW ENERGY COSTS*... -
Page 6: Package Contents
4. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: REF. DESCRIPTION PART NO. Blade Set of 5 (26”) RPL-F1802-26-BD-** Blade Set of 5 (38”) RPL-F1802-38-BD-** Mounting Plate RPL-F1802-HGR Trim Ring Decorative RPL-F1802-TRIM-** Motor Assembly Adapter Plate LED Module F6IN-120V-R1-30... -
Page 7: Mounting Options
5. MOUNTING OPTIONS Support Brace Joist If there isn’t an existing UL/cUL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Outlet box Secure the outlet box directly to the building structure. Use appropri- ate fasteners and building materials. -
Page 8: Hanging The Fan
6. HANGING THE FAN REMEMBER to turn off power at the breaker. Follow the steps below to hang your fan properly: Disconnect power at the breaker to the fan location. A licensed electrician must install the fan. (Fig. 4) Remove 2 of 4 screws from the bottom of mounting bracket and FIGURE 4 save for use in section 9. -
Page 9: Making The Electrical Connections
7. MAKING THE ELECTRICAL CONNECTIONS WARNING: To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring. WARNING: Installation of this fan requires that a three-conductor cable (including ground wire) which should run between ceiling and wall outlet box. - Page 10 7. MAKING THE ELECTRICAL CONNECTIONS (cont.) Receiver Motor to receiver electrical connections: (Fig. 8) White (for light) Place motor on flat surface before connecting receiver wires. Red (to motor) Gray (to motor) Blue (for light) Connect the red wire from the fan to the red wire marked “TO Yellow (to motor) MOTOR”...
- Page 11 7. MAKING THE ELECTRICAL CONNECTIONS (cont.) Wood Screw Receiver to house supply wires electrical connections: (Fig. 9 &10) Safety Cable Lift motor assembly and hang it on the hook of mounting bracket using one of the screw holes. (Fig. 9) Trim Ring Secure the safety cable to the building structure using a wood Motor...
-
Page 12: Installing The Wall Control
8. INSTALLING THE WALL CONTROL Wall control to wall outlet box electrical connections: (Fig. 14) WARNING: Remember to shut the power off at the circuit breaker or fuse box. Connect ground wires - Important for proper control function. Connect the black wire marked “LINE IN” from the control to the black LINE VOLTAGE wire from the outlet box that feeds back to the breaker. - Page 13 8. INSTALLING THE WALL CONTROL Carefully tuck the wire connections inside the junction box. Wall control Secure the wall control with the two wall control mounting screws provided. (Fig. 15) Wall outlet box Wall mounting plate Attach the wall mounting plate over the wall control and secure with the two wall mounting plate screws provided.
-
Page 14: Finishing The Installation
9. FINISHING THE INSTALLATION Secure all wire connections with supplied wire ties to assist in fan installation. Tuck connections neatly into ceiling outlet box. Remove the motor from the hook on the mounting bracket. Slide Mounting Bracket the motor up to the mounting bracket and place the key hole on the motor over the screw on the mounting bracket. -
Page 15: Attaching The Fan Blades
10. ATTACHING THE FAN BLADES Insert the blade through the slot in the housing. Align the holes in the blade with the fan motor assembly holes and secure with a blade attachment screw with rubber washers. (Fig. 14) Slot Repeat this procedure with the remaining blades. Blade Screws with rubber washers 11. -
Page 16: Installing The Led Luminaire Module
12. INSTALLING THE LED LUMINAIRE MODULE WARNING: Before starting installation, disconnect the power by turning off the circuit breaker or removing the fuse at fuse box. Turning power off using the fan switch is not sufficient to prevent electric shock. NOTE: If you do not plan to install the luminaire module with your fan at this time, skip to step 5. -
Page 17: Wall Control Operating Instructions
13. WALL CONTROL OPERATING INSTRUCTIONS Your DC brushless motor is equipped with an intuitive wall control. Restore power to ceiling fan and test the wall control as below for proper operation. Pairing the Wall Control to Your Fan Your fan is pre-paired at the factory, NO pairing is necessary. Wall Control Button Definitions These seven buttons are used to set the fan speed as follows: Button: turn the light ON or OFF... - Page 18 13. WALL CONTROL OPERATING INSTRUCTIONS (cont.) NOTE: Maximum of 2 fans can operate on a circuit through the wall transmitter. Maximum of 12 fans can operate on a circuit through an on/off switch or breaker when utilizing the app for the fan control (without the wall transmitter in the circuit).
-
Page 19: Application
14. APPLICATION In addition to the included wall control, you can control the fan through the Modern Forms app. FIGURE 20 FIGURE 21 To use the app, download it for free from the App Store or Google Play. Open the app to create your account. You can also log in with your Facebook or Google account. -
Page 20: Troubleshooting
15. TROUBLESHOOTING Problem Solution Fan will not start. Check circuit fuses or breakers. Check wall control LED indicator light. If LED is not illuminated when pushing a button, it is not transmitting a signal. Please check power to wall control and all electrical connections. Assure that there are no more than 2 fans operating on a circuit through the wall control. -
Page 21: Accessories
Sold Separately RF WALL CONTROL Included with each fan 6 Fan speeds Dims light to 1% F-WC ON/OFF Wall control range: Up to 30ft from fan Works in conjunction with Modern Forms Fan receiver (Not included) FH- W 18 0 2... - Page 22 Español For instructions in Spanish please visit the link below. Para obtener instrucciones en español, visite el siguiente enlace. www.modernforms.com/fan-instructions-espanol Français For instructions in French please visit the link below. Pour obtenir des instructions en français, veuillez visiter le lien ci-dessous. www.modernforms.com/fan-instructions-francais FH -W 1 8 0 2...
- Page 23 Get Smart The Modern Forms app synchronizes seamlessly with smart home devices you already own. To learn more go to modernforms.com/mfappins works with the Google Assistant Free App Download Sync with our exclusive Modern Forms App to control fan speed, use smart features like Adaptive Learning, create groups and reduce energy costs.
- Page 24 F H-W18 02 -2 6 L; F H- W1 80 2- 38 L modernforms.com...
