Modern Forms F-RCBT-WT - Fan Operation Manual

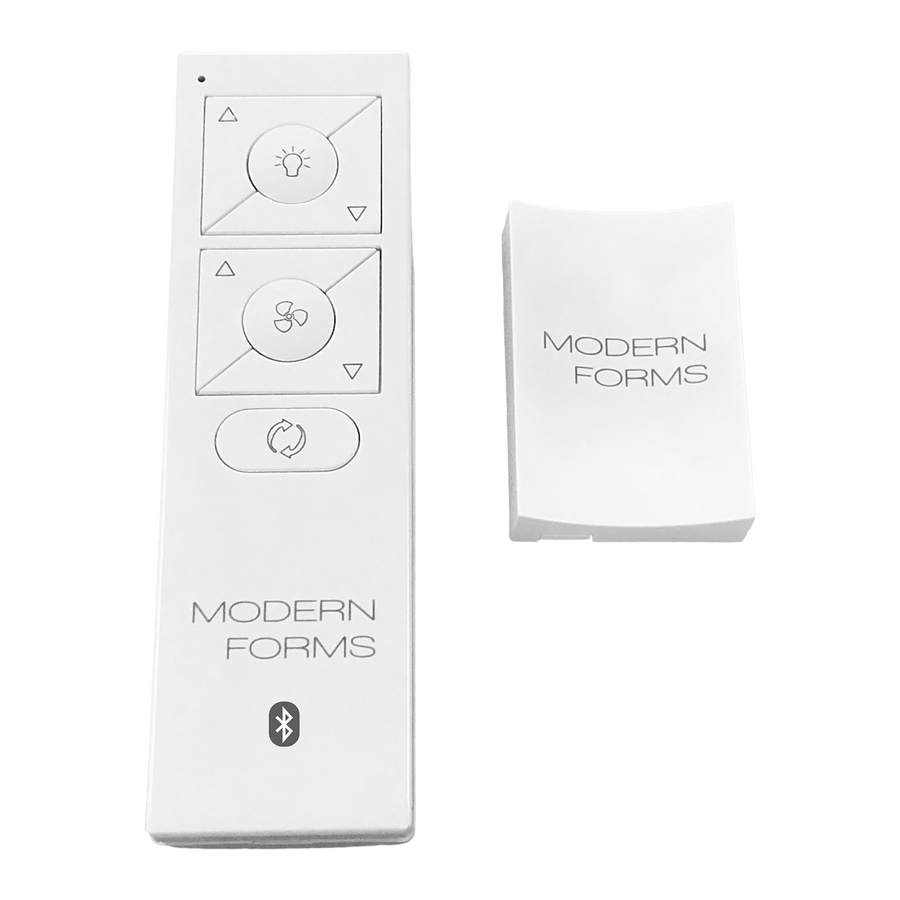

Package Contents

Pairing

NOTE: Pairing must be completed within three (3) minutes of turning the power ON to the fan receiever.

To pair your remote control:

1. Power cycle your fan by removing power from the circuit breaker for 10 seconds and then re-enable power.
2. Press and hold and buttons on remote control for 4-5 seconds.

3. The LED will blink green.
4. The green LED along with audible beeps will indicate that pairing is successful.
5. Test remote control using the steps in the next section.

NOTE: A maximum of 10 remote controls or wall controls can be used with a fan.

Remote Control Operation

Remote Control Button Functions

button: Turns the light ON or OFF.
Press or hold to increase the light level.
Press or hold to decrease the light level.

button: Turns the fan ON or OFF.
Press or hold the button to increase fan speed.
Press or hold the button to decrease fan speed.

NOTE: Your fan features 6 speeds. An audible tone will indicate when the speed is increased or decreased. When the fan has reached the minimum/maximum speed level the fan will beep twice.

button: Switch between Summer and Winter Mode.

SUMMER MODE (Counter-Clockwise):
A downward airflow creates a cooling effect. This allows you to set your air conditioner on a warmer setting without affecting your comfort.

WINTER MODE (Clockwise):
An upward airflow moves warm air off the ceiling area and re-distributes the warm air that hovers around the ceiling to the living space.
This should allow for savings on heating costs.

NOTE: On your fan, press the button while the fan is running

Breeze Mode

1. Breeze Mode mimics the natural ebb and flow of winds in nature by varying the fan speed.
   NOTE: Breeze Mode always rotates your fan in the Summer (CCW) direction
2. To start Breeze Mode, press and for 4 seconds. The LED will blink green and the fan will beep.
3. To exit Breeze Mode and return to standard fan mode, press and for 4 seconds.
   The led will blink green and the fan will beep. Your fan will return to the direction and speed it was set to prior to entering Breeze Mode.

Unpairing

NOTE: Unpairing must be completed within 3 minutes of turning the power on to the fan receiver.

1. When you re-engage power to the fans you want to unpair, press and hold the and buttons for 4 seconds.

2. The LED will blink green, and the receiver will beep to indicate that unpairing is successful.

Unit Wi-Fi Reset

NOTE: This function only resets the Wi-Fi settings.

1. Press and hold the and buttons for 10 sec.
2. The LED will blink green and the receiver will beep to indicate that Wi-Fi reset is successful.
3. After the Wi-Fi resets, the fan will broadcast its factory set network name beginning with "ModernFormsFan."

NOTE: Changes to your Wi-Fi network settings (SSID or Security Passphrase) will prevent your fan from connecting to the cloud. You can re-establish connectivity by performing a Wi-Fi Reset and using the Modern Forms app to reconfigure the fan to connect to the network with the new settings.

"The bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Wangs Alliance Corporation is under license. Other trademarks and trade names are those of their respective owners."

Factory Reset

Using remote control

Remote Control Factory Reset:

1. Press and hold the , and buttons for 10 seconds.

2. The LED will blink green and the receiver will beep

NOTE: This will remove remote control(s), wall control(s)

Using Receiver Button

1. Power down the receiver and within 3 minutes of turning the power back on, press and hold the reset button on the receiver until the receiver beeps.

2. Power cycle the circuit to complete the process.

NOTE: This will remove remote control(s), wall control(s) and Modern Forms app connections.

Using Power Switch

This process can be used when it is inconvenient to use one of the other processes.
NOTE: You must use a switch that cuts power to the fan receiver for this process to work.
This will reset all fans connected to the switch being used.

1. Turn off power at power switch for 3 seconds.
2. Turn on power for 6 seconds. Turn off power.
3. Turn on power. In approximately 6 seconds the receiver will beep. When the receiver beeps turn off power.

Repeat step 3 four additional times. On the fourth repetition the fan will beep three times indicating the fan has performed a factory reset.

NOTE: This will remove remote control(s), wall control(s) and Modern Forms app connections.
