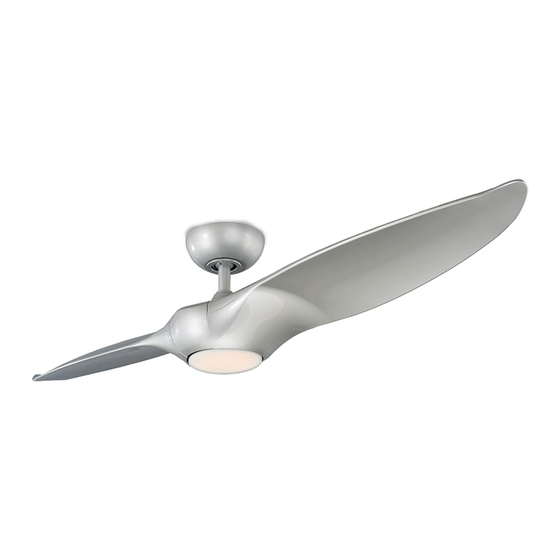

Modern Forms MORPHEUS II Installation Instructions Manual

Modern Forms MORPHEUS II Installation Instructions Manual

Advertisement

Quick Links

M OR PHEUS II & III
F R-W1812- 60L | F R-W1813-60L
s
INSTALLATION INSTRUCTIONS
DC
SMART
MOTOR
WET
works with the
modernforms.com
Google Assistant

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MORPHEUS II and is the answer not in the manual?

Questions and answers

Summary of Contents for Modern Forms MORPHEUS II

  • Page 1 M OR PHEUS II & III F R-W1812- 60L | F R-W1813-60L INSTALLATION INSTRUCTIONS SMART MOTOR works with the modernforms.com Google Assistant...
  • Page 2 All Modern Forms Smart Fans are: SMART Durably finished and Rated for Able to coordinate with smart Wet Location-listed to the strictest interior and exterior use devices for voice-activated and ETL/cETL safety regulations thermostat control MOTOR Quiet, reliable, and up to 70%...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1. Safety Rules .................................. 4 2. FTC Energy Guide & Specification ..........................5 3. Tools and Materials Required ............................ 5 4. Package Contents ................................ 6 5. Mounting Options ................................ 8 6. Install the Mounting Bracket ............................9 7.
  • Page 4: Safety Rules

    1. Safety Rules For operation, maintenance, and troubleshooting information, visit modernforms.com/help. To reduce the risk of electric shock, ensure electricity has been To avoid personal injury or damage to the fan and other turned off at the circuit breaker or fuse box before beginning. items, be cautious when working around or cleaning the fan.
  • Page 5 WARNING: To reduce the risk of electric shock, this fan must be installed with the supplied wall control, or controlled from the Modern Forms app or wall panel. WARNING: To reduce the risk of personal injury, do not bend the blade arms, when installing the brackets, balancing the blades or cleaning the fan.
  • Page 6: Ftc Energy Guide & Specification

    ELECTRICITY AIR FLOW ENERGY FAN EFFICACY (lbs) (lbs) COSTS* 60” 6.85 10.67 High Speed 6543 CFM $7/yr 258.6 CFM/W Morpheus II Weighted Average 3881 CFM $4/yr 266 CFM/W FAN SIZE VOLTS N.W. G.W. STANDARD ELECTRICITY AIR FLOW ENERGY FAN EFFICACY...
  • Page 7: Package Contents

    4. Package Contents Unpack your fan and check the contents. You should have the following items: REF. DESCRIPTION PART NO. Blade Set of 2 (2BI) Morpheus II only RPL-F1812-60_** RPL-F1813-60_** Blade Set of 3 (3BI) Morpheus III only Hanger Assembly...
  • Page 8: Mounting Options

    5. Mounting Options Support Brace Joist CAUTION: To prevent electrical shock, ensure electricity has been turned off at the circuit breaker before beginning. If there isn’t an existing UL/cUL listed outlet box, please refer to the Outlet Box following instructions. Secure the outlet box directly to the building structure.
  • Page 9 6. Hanging the Fan REMEMBER to turn off power at the breaker. Follow the steps below to hang your fan properly: Disconnect power at the breaker to the fan location. A licensed electrician must install the fan (FIG. 5). FIG. 5 Remove 1 of 2 screws from the bottom of mounting bracket and save for use in section 9.
  • Page 10: Attaching The Fan Blades

    7. ATTACHING THE FAN BLADES FIGURE 8 Remove and discard the 2 pre-installed screws on the motor as shown (Fig. 8). Attach the fan blades with the blade screws provided (Fig. 9). For two bladed model position spacer between blades as shown (Fig.
  • Page 11: Installing The Light Kit Plate

    8. INSTALLING THE LIGHT KIT PLATE Remove one of the three mounting plate screws from the mount- ing ring and loosen the other two screws (Do not remove) (Fig. 11). Place the key holes in the light kit plate over the two screws pre- viously loosened from the mounting ring.
  • Page 12: Hanging The Fan

    6. Hanging the Fan (cont.) Take out the set screw located in the hanger ball, lower the hanger ball and remove the cross pin. Remove the hanger ball from the hanger ball/downrod assembly (FIG. 13). Downrod Assembly Remove the clevis pin and cotter pin, and loosen the two collar Canopy screws from the motor collar (FIG.
  • Page 13 6. Hanging the Fan (cont.) Slip the coupling cover, canopy screw cover (painted side face down), and canopy (opened side up) onto the downrod (FIG. 13). Coupling cover goes all the way to the bottom. Carefully reinstall the hanger ball onto the downrod, being sure that the cross pin is in the correct position, the setscrew is tightened and wires are not twisted (FIG.
  • Page 14: Making The Electrical Connections

    7. Making the Electrical Connections WARNING: To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring. WARNING: Installation of this fan requires that a three-conductor cable (including ground wire) which should run between ceiling and wall outlet box.
  • Page 15 7. Making the Electrical Connections (cont.) Outlet Box Motor to receiver electrical connections: (FIG. 17) White (neutral) Black (hot) Green (ground) Connect the hanger ball/downrod assembly ground wire, Black (“AC IN L”) mounting bracket ground wire and receiver ground wire White (“AC IN N”) to the ground wire in outlet box.
  • Page 16: Installing The Wall Control

    8. Installing the Wall Control Wall control to wall outlet box electrical connections: (FIG. 18) WARNING: Remember to shut the power off at the circuit breaker or fuse box. Connect ground wires - Important for proper control function. Connect the black wire marked “LINE IN” from the control to the black LINE VOLTAGE wire from the outlet box that feeds back to the breaker.
  • Page 17 NOTE: A maximum of 12 fans can operate on a circuit through an on/ off switch or a breaker when utilizing the Modern Forms app for the fan control (without the wall control in the circuit). Mounting Screws Wall Plate FIG.
  • Page 18: Finishing The Installation

    9. Finishing the Installation Secure all wire connections with supplied wire ties to assist in canopy installation. Tuck connections neatly into ceiling outlet box. Slide the canopy up to hanger bracket and place the key hole on the canopy over the screw on the hanger bracket. Turn canopy until it locks in place at the narrow section of the key holes (FIG.
  • Page 19: Installing The Led Luminaire Module (Optional)

    13. Installing the LED Luminaire Module (Optional) WARNING: Before starting installation, disconnect the power by turn- ing off the circuit breaker or removing the fuse at fuse box. NOTE: If you do not plan to install the luminaire module with your fan at this time, skip to Step 4.
  • Page 20 13. Installing the LED Luminaire Module (Optional) NOTE: Add metal light cover if you do not need lighting function or prefer a different aesthetic (Fig 24). NOTE: Do not connect the LED connector wires if you are using the metal light plate. 5.
  • Page 21: Wall Control Operating Instructions

    13. Wall Control Operating Instructions Restore power to ceiling fan and test wall control as below for proper operation. Pairing the wall control to your fan Your fan is pre-paired at the factory. No pairing is necessary. NOTE: For pairing instructions please skip to the “Pairing” section. Wall Control Button Functions button: Turns the light ON or OFF.
  • Page 22 13. Wall Control Operating Instructions (cont.) Summer Mode Winter Mode (counter-clockwise): A downward airflow creates (clockwise): An upward airflow moves warm air off the ceiling area FIG.25 a cooling effect ( ). This allows you to set your air and redistributes the warm air that hovers around the ceiling to the FIG.26 conditioner on a warmer setting without affecting your comfort.
  • Page 23 13. Wall Control Operating Instructions (cont.) Pairing Unpairing If you need to re-pair your fan or you want to pair a second wall NOTE: Unpairing must be completed within 3 minutes of turning control: the power on to the fan receiver. Power cycle your fan by turning off the power at the When you re-engage power to the fans you want to unpairing, circuit breaker.
  • Page 24 Receiver Button Factory Reset FIG. 28 Press the button on the receiver until the receiver beeps ( NOTE: This will remove wall control and Modern Forms app connections. FIG.28 F R - W 181 2; F R - W18 13...
  • Page 25 F R- W1 8 1 2 ; FR - W1 8 1 3...
  • Page 26: Application

    14. Application In addition to the included wall control, you can control your fan through the Modern Forms app. To use this app, download it for free from the App Store or Google Play. Open the app to create your account. You can also log in using your Facebook or Google account.
  • Page 27 The Modern Forms app will walk you through the main screen and show you how to create schedules, change fan speeds, dim the light, switch between Summer and Winter Modes, invite users, create groups and much more. Please refer to the Modern Forms app instructions for more details.
  • Page 28: Troubleshooting

    Assure that there are no more than 12 fans operating on a circuit through an on/off switch or a breaker if utilizing the Modern Forms app (without the wall control in the circuit). Assure that the fan is within range of the Wi-Fi (150 ft) or wall control (30 ft).
  • Page 29 Problem Solution Fan sounds noisy. Allow a 24-hour “breaking in” period. Most noise associated with a new fan will disappear during this time. Make sure all motor housing screws are securely fastened. Make sure the screws that attach the fan blades to the fan are securely fastened. Make sure the screws securing the LED luminaire module are securely fastened.
  • Page 30: Accessories

    Included with each fan 6 Fan speeds Dims light to 1% F-WC Wall control range: Up to 30ft from fan Works in conjunction with Modern Forms Fan Receiver (not included) Coupler AS, BZ, CFI, DW, GB, XF-I Connects two downrods...
  • Page 31 Product Model Description Finish Downrod AS, CFI, LN, SS, BZ, XF-12 12” in downrod DW, GB, GH, GW, MB, MW, OB, TT AS, CFI, LN, SS, BZ, XF-18 18” in downrod DW, GB, GH, GW, MB, MW, OB, TT AS, CFI, LN, SS, BZ, XF-24 DW, GB, GH, GW, MB, 24”...
  • Page 32 Get Smart works with the Google Assistant The Modern Forms app synchronizes seamlessly with smart home devices you already own. To learn more go to modernforms.com/mfappins Free App Download Sync with our exclusive Modern Forms App to control fan speed, use smart features like Adaptive Learning, create groups and reduce energy costs.
  • Page 33 Español For instructions in Spanish please visit the link below. Para obtener instrucciones en español, visite el siguiente enlace. www.modernforms.com/fan-instructions-espanol Français For instructions in French please visit the link below. Pour obtenir des instructions en français, veuillez visiter le lien ci-dessous. www.modernforms.com/fan-instructions-francais SCAN AND DOWNLOAD...
  • Page 36 FR-W1812 | F R-W1813 modernforms.com...
