WINE COLUMN DIGITAL CONTROL OPERATION
WINE COLUMN DIGITAL CONTROL OPERATION
The following instructions are for the PerlIQ™ digital
controller in Perlick column wine reserves (models
CC24W and CC24D).

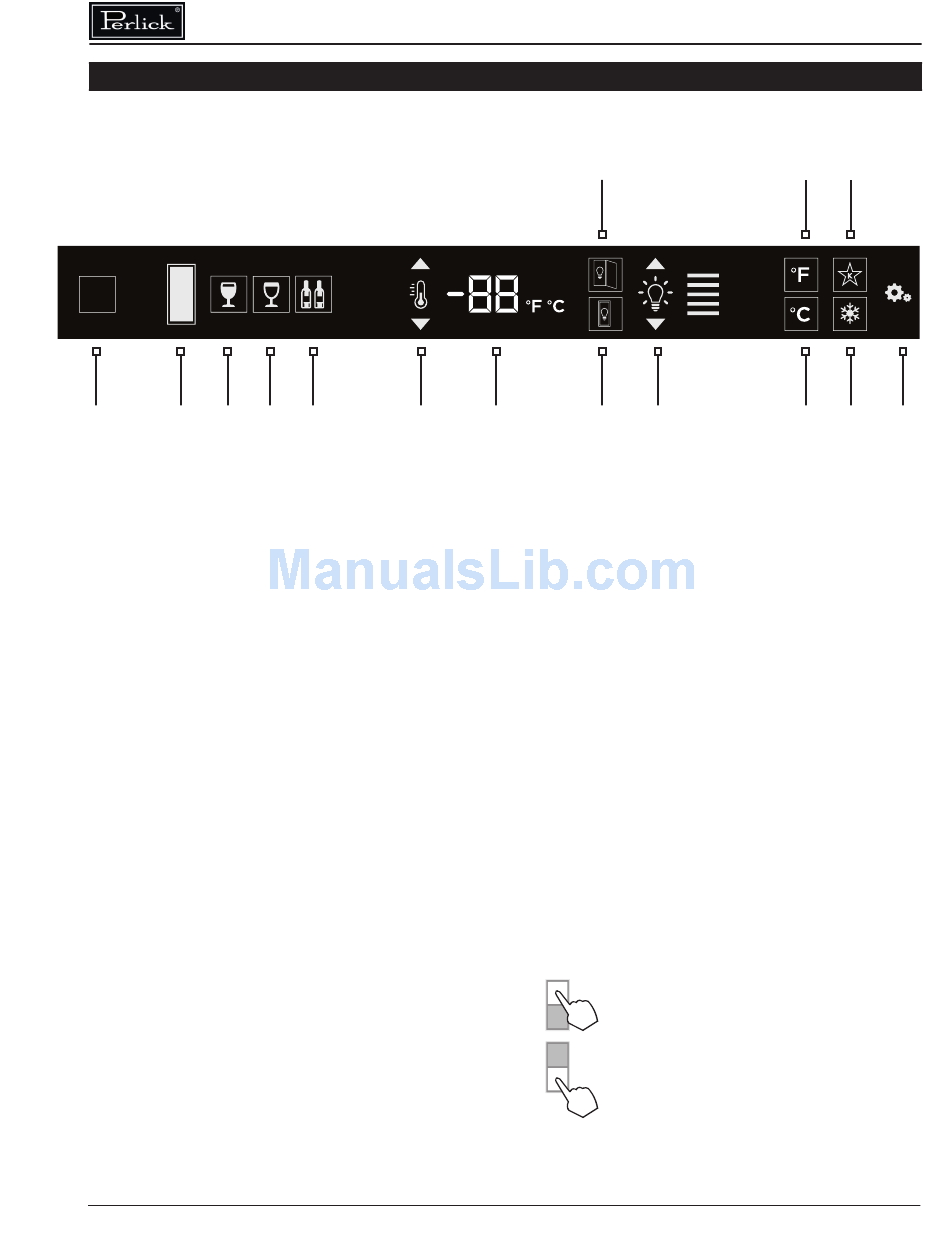

1 2 3
1 Wake Button
2 Temperature zone selection (Dual-zone models)
3 White wine temperature setting
4 Red wine temperature setting
5 Cellar temperature setting
6 Temperature adjustment (up and down in 1°
increments)
7 Temperature readout
8 Light adjustment (door open)
9 Light adjustment (door closed)
10 Light intensity adjustment
11 Fahrenheit temperature mode
12 Celsius temperature mode
13 Sabbath mode
14 QuickCool mode
15 Settings menu
Wine Column Refrigeration Installation & Operation Manual
4 5 6
8
7 9 10
Using the Wine Column Control
Upon door opening, the Wake button (1) outline will
illuminate. Once activated, the temperature zone
selection (2), temperature adjustment (6), temperature
readout (7) and settings (15) menu icons will illuminate.
Selecting a Temperature Zone
Perlick's PerlIQ™ digital controller is preset with
recommended temperature settings for white wine, red
wine and cellaring. Within the presets, you have the
ability to adjust the temperature in 1° increments as you
desire. Because single zone models (CC24W) are one
temperature throughout, there is no zone selection. On
dual zone models (CC24D), press the temperature zone
selection (2) icon to toggle through the zones until desired
zone is illuminated. Single zone models come factory set
to 50°F. Dual zone models come factory set to 60°F in the
top zone and 50°F in the bottom zone.
Top Zone
Bottom Zone
19
11 13
12 14 15
