Once overlay is adjusted, mount the door trim
bracket onto the door adjustment bracket using
the provided screws.
DOOR TRIM
ON
DOOR PANEL
Printed in USA
Wine Column Refrigeration Installation & Operation Manual

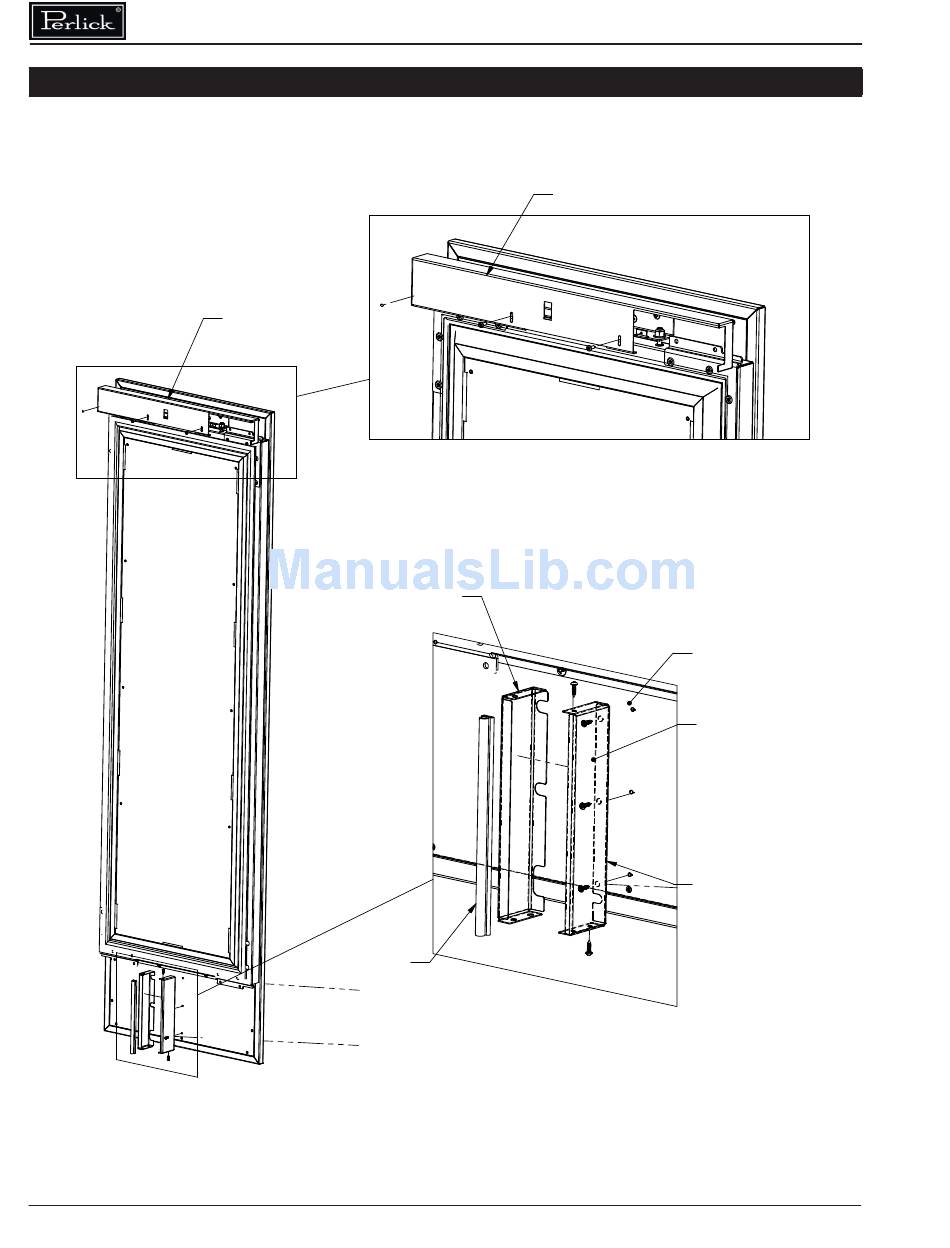

DOOR TRIM INSTALLATION
DOOR TRIM
FRAME 2
GASKET
DOOR TRIM
DETAIL J
SCALE 1 : 6
DOOR TRIM
ON
DOOR PANEL
INSTALLATION STEPS
1.
INSTALL FRAME 1 TO OVERLAY.
2.
INSTALL GASKET ONTO FRAME 2.
3.
MOUNT FRAME 2 ONTO FRAME 1.
DETAIL K
SCALE 1 : 4
16
OVERLAY
TEMPATE
CONDENSOR
DIVIDER PANEL
FRAME 1
