IARMOR EDGE™
BEFORE INSTALLATION
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS
ARE PRESENT. READ INSTRUCTIONS CAREFULLY
BEFORE STARTING INSTALLATION. ASSISTANCE IS
RECOMMENDED. THANK YOU FOR CHOOSING OUR
PRODUCT!
*DRILLING MAYBE REQUIRED
*TRIMMING NOT REQUIRED

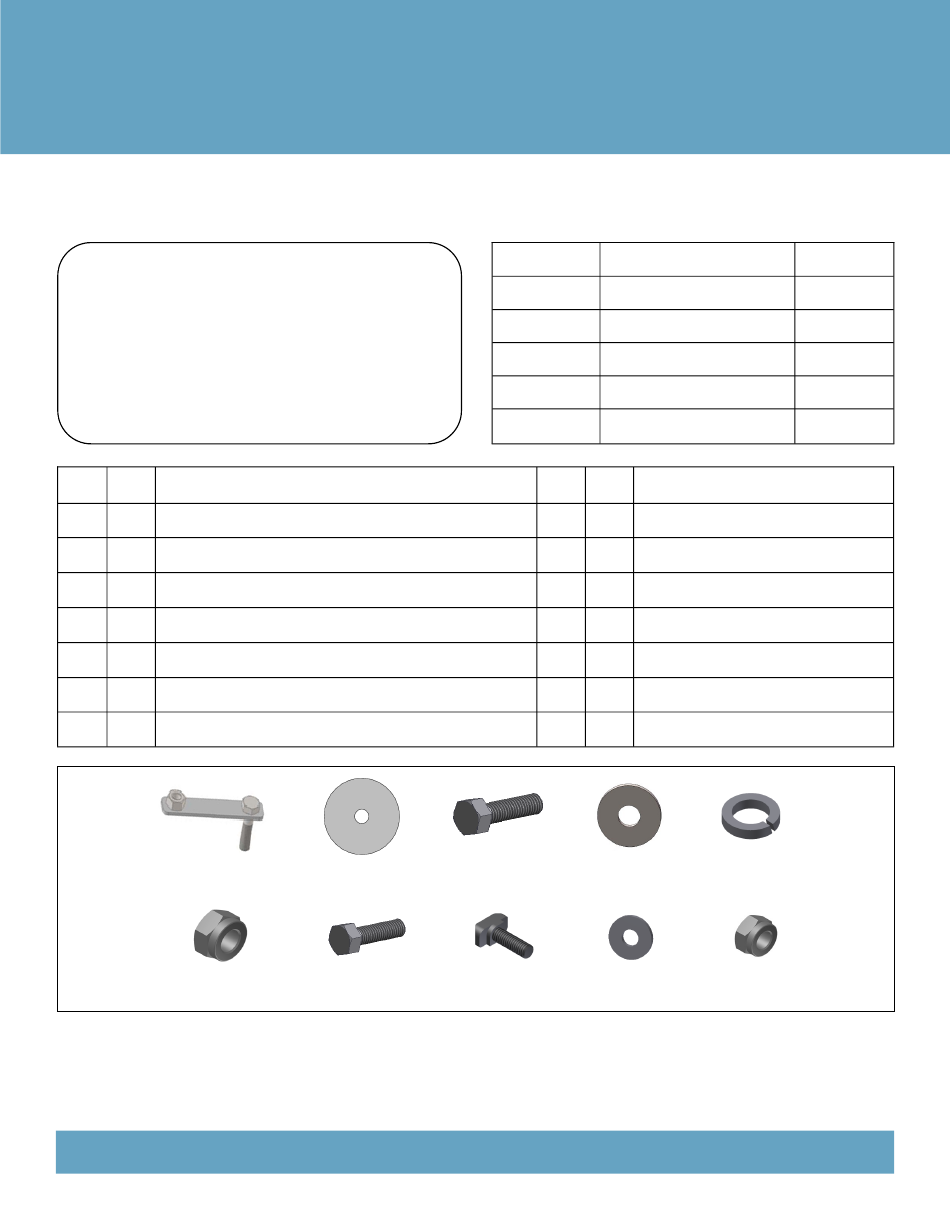

Item
QTY
1#
3

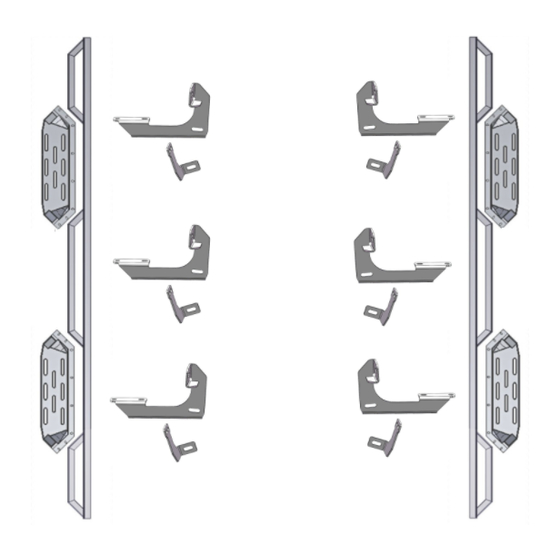

Driver Front & Center & Rear Mounting Brackets
2#
3
Passenger Front & Center & Rear Mounting Brackets
3#
3
Passenger Front & Center & Rear Support Brackets
4#
3
Driver Front & Center & Rear Support Brackets
5#
6
M8 Bolt/Nut Plates
M8 Plastic Washers
6#
6
7#
12
M8X1.25-30 Hex Bolts
5 #
10 #
iArmor
Description
6 #
11 #
Customer Support: info@iarmorauto.com
®
PART#: IA-N179&N208&N209
Fastener Size
Tightening Torque (ft-lbs)
6mm
8mm
10mm
12mm
14mm
Item
QTY
8#
18
M8 Flat Washers
9#
6
M8 Lock Washers
10#
6
M8X1.25 Nylon Lock Nuts
11#
12
M6X1-25 Hex Bolt
12#
44
M6X1-20 T-Bolts
13#
68
M6 Large Flat Washers
14#
56
M6X1 Nylon Lock Nuts
7 #
8 #
12 #
13 #
1
Required
√
6-7
16-18
√
31-32
X
56-58
X
92-94
X
Description
9 #
14 #
Rev. 20211001
Advertisement
Related Manuals for iArmor IA-N179
Summary of Contents for iArmor IA-N179
- Page 1 ® IARMOR EDGE™ PART#: IA-N179&N208&N209 Fastener Size Tightening Torque (ft-lbs) Required BEFORE INSTALLATION REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS √ ARE PRESENT. READ INSTRUCTIONS CAREFULLY 16-18 √ BEFORE STARTING INSTALLATION. ASSISTANCE IS RECOMMENDED. THANK YOU FOR CHOOSING OUR...
- Page 2 ® Front Driver Passenger Step Pad Step Pad Customer Support: info@iarmorauto.com Rev. 20211001...
- Page 3 ® The instruction here is for your reference only. We strongly recommend the professional installer for best result. We are not responsible for any damage caused by the installation. STEP 1 Front Install the Step Pads onto the step bars with (32) M6x1-20mm T-Bolts, (32) M6 Flat Washers and (32) M6x1 Nylon Lock Nuts.
- Page 4 ® M8 Bolt/Nut Plate Front (Fig 4) Driver Side Front Mounting Location (example of models with factory installed threaded inserts) (1) M8X1.25-30 Hex Bolt (1) M8 Lock Washer (1) M8 Flat Washer Front M8 Plastic Washer (Fig 2) Insert M8 Bolt/Nut Plate (NOTE: M8 Bolt/Nut Plate is not...
- Page 5 ® Driver Front Mounting Bracket Driver Front Support Bracket Front (Fig 8) Driver Side Center Mounting location (1) M8X1.25-30 Hex Bolt (2) M8 Flat Washers (1) M8X1.25 Nylon Lock Nut (Fig 6) Attach Driver Front Support Bracket to Drive Front...
- Page 6 ® STEP 9 Move to the passenger side of the vehicle. Repeat Steps 2-8 to c. Drill (2) 1/4” holes through the pinch weld for each Support install the passenger side step bar. Bracket. IMPORTANT: Do not drill too close to the bottom edge NOTE: All Mounting Brackets and Support Brackets for passen- of the pinch weld.
