REMOVE GRABBER BEAM ASSEMBLY (CONTINUED)
5. To make the pin easier to remove, insert a different bolt with a washer into the bolt hole. Inserting this bolt makes it
easier to remove the pin. DO NOT use the original bolt.
6. Use the 9/16" wrench and the impact wrench with the 9/16" socket to remove the level pin retaining bolt. See the figure
below. DO NOT remove the pin.
7. Use the 1-1/4" and 1-1/8" wrenches to disconnect the two grabber cylinder hydraulic hoses.
8. Use the 3/4" plugs and caps to cap off the hydraulic fittings and hoses.
9. Use the plastic ties to tie the hydraulic hoses out of the way.
10. Support the grabber arm assembly and use the C-clamp to secure the arm assembly to the support. In the Figure
below, the arm assembly is supported by a fork lift.
11. Remove the grabber level pin.
12. Use the 1-1/2" steel rod and the 2 lb hammer to remove the grabber pin. Make sure the spacers in the bore do not fall
out when you remove the grabber pin. Use plastic ties to hold the spacers in place. Make sure you lay aside the
retainer plate from the opposite side when you remove the pin.
13. Slowly lower the grabber beam assembly.
NOTICE
Before re-installing pins, be sure to coat all pins with anti-seize compound.
Copyright 2024, The Heil Co.
Printed in the U.S.A.
Lift Arm

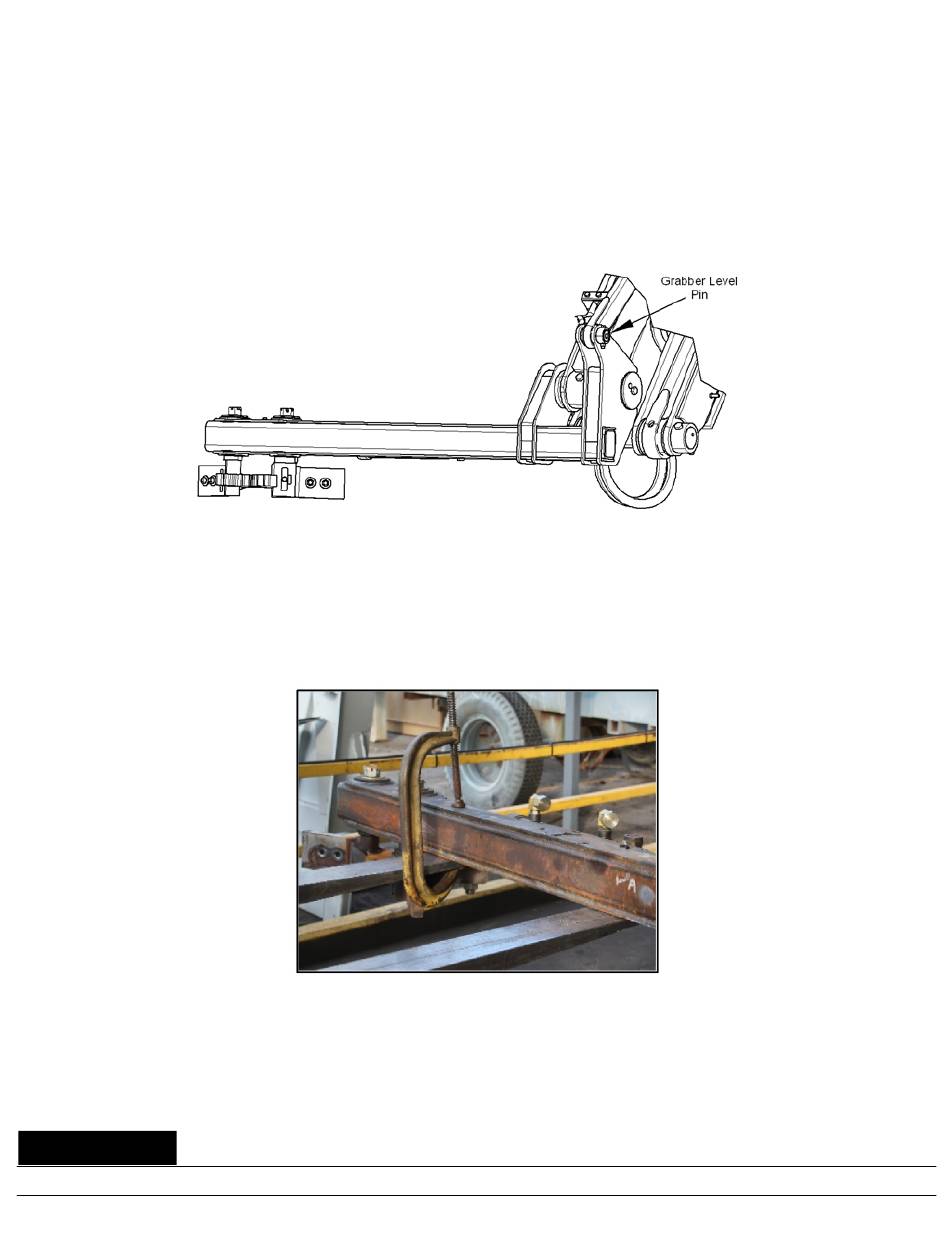

Figure 24. Grabber Level Pin Location
Figure 25. Secured Grabber Arm
